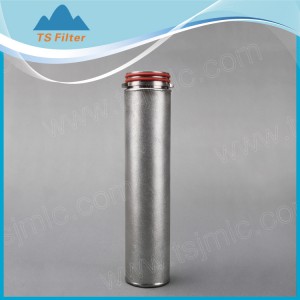

Stainless Steel Pleated & Powder Sintered Filter
◆Extremely robust construction, high mechanical strength
◆Ideal for aggressive solvents, viscous and hot solutions
◆Backwashable and cleaned by chemical solvent, hot water, steam, long service life
◆Pleated Cartridge provides higher filtration area
◆Removal rating from 5 to 100 microns
• Steam filtration;
• Prefiltration and decarbonization of high viscosity liquid filtration;
• Removing impuriteis ofliquids in Petrochemical industry;
• Agressive solvents filtration;
• Highly corrosive liquid and gas purification;
• Liquids or gases filtration in high temperature and pressure;

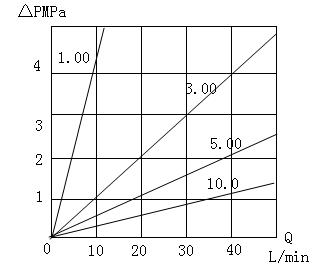

Table : Typical water flow rate (10")
| Materials Of Construction | Filter Media: | SUS316L Mesh Pleated | ||||
| Micron Rating: | 0.45-100 um | |||||
| Porosity: | 60%-65% | |||||
| O-rings/gaskets(only for 222, 226, DOE ends): | Silicone, Nitrile, EPDM, Viton, Teflon, etc | |||||
| Filtratioin Efficiency: | 95%-99% | |||||
| Cartridge Dimensions | Outer Diameter | 60mm/80mm | ||||
| Length(based on Cut Ends) | 10"- 250mm, 20"- 500mm, 30"-750mm, 40"- 1000mm | |||||
| Operating conditions | Max.Operating Temperature.: | 300℃ (572℉) | ||||
| Max. Differential Pressure: | 6.0 bar | |||||
| PH Value compatibility: | 1-14 | |||||
| Materials Of Construction | Filter Media: | SUS316L Powder Sintered | ||||
| Micron Rating: | 1.0, 3.0, 5.0, 10um | |||||
| Porosity: | 35%-45% | |||||
| O-rings/gaskets(only for 222, 226, DOE ends): | Silicone, Nitrile, EPDM, Viton, Teflon, etc | |||||
| Filtratioin Efficiency: | 95%-99% | |||||
| Cartridge Dimensions | Outer Diameter | 60mm/80mm | ||||
| Length(based on Cut Ends) | 10"- 250mm, 20"- 500mm, 30"-750mm, 40"- 1000mm | |||||
| Operating conditions | Max.Operating Temperature.: | 300℃ (572℉) | ||||
| Max. Differential Pressure: | 6.0 bar | |||||
| PH Value compatibility: | 1-14 | |||||
| PRODUCT | MICRON | Outer Dia. | ADAPTER | LENGTH | O-RING / GASKET | |
| STS | 100-1um | D60-60mm | NIL- Cut Ends (Cylinder) | 10-10" | S-silicone; N-nitrile | |
| STP | 300-3um | D80-80mm | AA- DOE ( With Gaskets) | 20-20" | E-epdm ; T-teflon (Encaptulated) | |
| 500-5um | BF-222/ Seal | 30-30" | V-vition | |||
| 1000-10um | CF-226/ Seal | 40-40" | How to Order?- Example | |||
| 2000-20um | YBP- 1" BSP Threaded | 05-5" | STP; Micron:5um; Outer Dia.:60mm; Length:10"; Adapter:1"BSP; O-rings: Silicone Selection Code is: STP500D60YBP10S | |||
| HBP- 1/2" BSP Threaded | Other-XX | |||||
| Selection Code is: PSS100D63AA10P | ||||||
