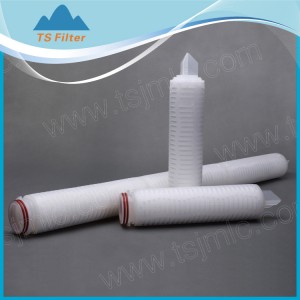

Multi Layered PP Pleated Filter Cartridge

Multi Layered PP Pleated Filter Cartridge

Short Description:


Product Detail

Product Tags

Features and Benefits

◆ Multi layers fine polypropylene membrane offer superior dirt holding capacity
◆ High flow rate and excellent filtration efficiency
◆ Complete Polypropylene structure, wide chemical compatibility
◆ Suitable for the fluids which is high viscosity or contain high bio-burdens
◆ Replace Sartorius ,Pall or Millipore Filter is available

Typical Applications

•High viscosity fluids, such as syrups;
•Wine, Beer, Juice and mineral water in beverge industry;
•Ink, Solvents, plating solutions;
•Prefiltration of R.O. system in electronics industy;
•Oral Liquids, Parenterals, Ophthalmics, Vaccines and other pharmaceuticals.

Table :  Typical water flow rate (10")

bd321s

Specifications

Materials Of Construction Filter Media: Multiple layers Polypropylene
Support Layers: Polypropylene
Micron Rating: 0.2, 0.45, 1.0, 3.0, 5.0, 10, 20 um……
Inner core: Polypropylene
Outer Cage, End caps: Polypropylene
Seal Method: Thermal Bonded, No Adhesives
 O-rings/gaskets: Silicone, Nitrile, EPDM, Viton, Teflon, etc
Cartridge Dimensions Outer Diameter 69mm(2.75'')
Inner Diameter 33mm(1.30'')
Length(based on DOE end caps) 10"- 254mm, 20"- 508mm, 30"-762 mm, 40"- 1016mm
Filtration Area(m2) 0.60 m2 per 10''
Operating conditions Normal Operating Temperature: Up to 55℃ (131℉)
Max.Operating Temperature.: 80℃ (172℉) at △P≤1.0 bar (14psi)
Max. Differential Pressure
Normal Flow direction:  4.2 bar (60 psi) at 25℃ (77℉)
Reverse flow direction: 2.1 bar (30psi) at  25℃ (77℉).
PH Value compatibility:  1-13
Sterilization: Flush with hot water at 82℃(180℉) for 30 minutes,
at △P≤1.0 bar (14psi)
Cartridge Safety Endotoxin: <0.25 EU/ml
Extractables: 0.03 g / 10"

Order Information

GRADE PRODUCT MICRON ADAPTER LENGTH    O-RING / GASKET
P- PHARMACEUTICAL RPP 045-0.45um AA- DOE 10-10"  S-silicone;      N-nitrile
F- FOOD & BEVERAGE 100-1um CN-226/FIN 20-20"  E-epdm;         T-teflon (encaptulated)
E- ELECTRICAL 500-5um BN-222/FIN 30-30"  V-viton
G- General 1000-10um BF-222/ FLAT SEAL 40-40" How to Order?- Example
CF-226/FLAT SEAL 05-5" Pharmaceutical grade; Micron:0.45um; Length:10"  ADAPTER: DOE; Gakset: Silicone.                                                                                                     Selection Code is: PRPP045AA10S
EN-222 three locking  ears /Fin Other-XX
