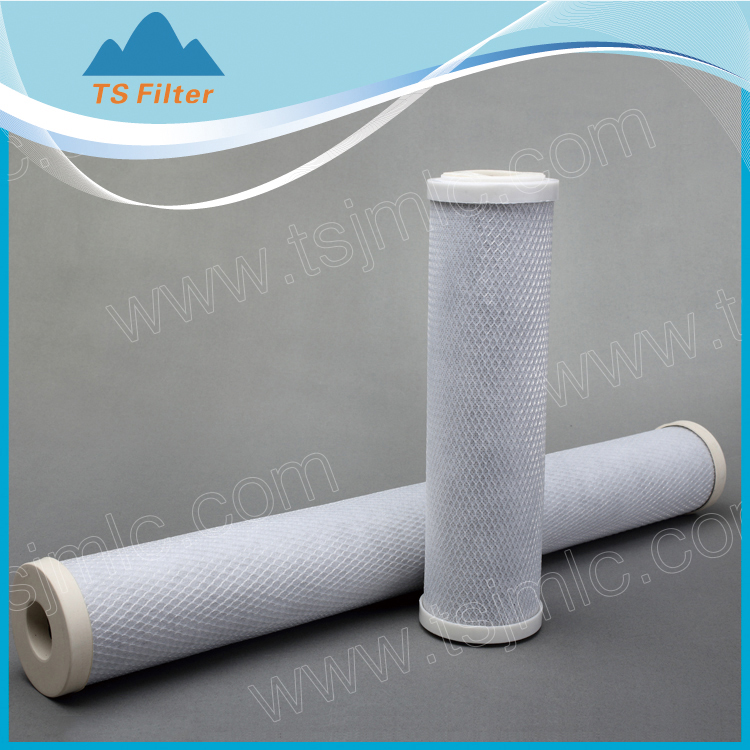

Activated Carbon Block Filter Cartridge

Short Description:



Product Detail

Product Tags

Features and Benefits

◆Excellent adsorptive capacity,high particles removal efficiency
◆High chlorine taste and odor reduction;
◆Long service life;

Typical Applications

• Pre-filtration or pre-treatment in RO applications;
• Chlorine and odor removal;
• Clolor reduction.

Table :  Typical water flow rate (10")

savqwv

Specifications

Materials Of ConstructionFilter Media:Common Activated Carbon/Coconut Shell Carbon
Micron Rating:5.0 um
Inner core:Polypropylene Non-Woven Cloth
Outer Cage:Polypropylene Non-Woven Cloth
End caps:Polypropylene
O-rings/gaskets:Silicone
Removal Efficiency:≥90%
Cartridge DimensionsOuter Diameter65mm(2.5")
Inner Diameter28mm(1.1'')
Length(based on DOE end caps)10"- 254mm, 20"- 508mm
Filtration Area(m2)0.4 m2 per 10''
Operating conditionsNormal Operating Temperature:Up to 55℃ (140℉)
Max. Differential Pressure
Normal Flow direction:4.0 bar (58 psi) at 25℃ (77℉)
Reverse flow direction:2.0 bar (29 psi) at  25℃ (77℉).

Order Information

PRODUCTMICRONADAPTERMATERIALLENGTH                    O-RING / GASKET
CTO500-5umAA- DOEA-Common Carbon10-10" S-silicone;       N-nitrile
B-Coconut Shell Carbon20-20" E-epdm ;
How to Order?- Example
Micron:5um; Length:10"  ADAPTER: DOE;              Gakset: Silicone.                                                                                                     Selection Code is: CTO500AAA10S
