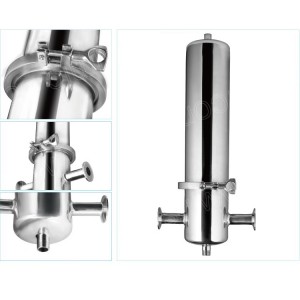

Stainless Steel Air&Steam Filter Housing
◆Meet The GMP Requirements. Electropolished,smooth and hygienic design by avoiding dead space. Easy management of condensate
◆Complete Stainless Steel Structure. Made of 100% 304 or 316L stainless steel of the highest quality
◆Easy To Install Design,Easy to Clean
| Designed Pressure: | 16 bar with in 30mins. | ||
| Max.operating pressure: | 8.0bar | ||
| Max.Temperature: | 150 ℃ | ||
| Surface finish: | Electro polished, Ra≤0.2um | ||
| Cartridges | Body Closure | Dimensions(mm) | |||||
| Nos. | Length | d | Outlet/ Inlet type | D | B | H | |
| 1 | 5" | Ferrule clamp, Flange | 3/4 inch | Tri Clamp or Flange | 102 | 180 | 340 |
| 10" | 1 inch | 450 | |||||
| 20" | 1 inch | 690 | |||||
| 30" | 1 1/4 inch | 940 | |||||
| 3 | 10" | Flange, Stud bolts | 2 inch | Flange | 184 | 325 | 755 |
| 20" | 2.5 inch | 995 | |||||
| 5 | 10" | 3 inch | Flange | 219 | 380 | 880 | |
| 20" | 4 inch | 1180 | |||||
| PRODUCT | MATERIAL | CARTRIDGE NOS. | ADAPTER | LENGTH | How to Order?- Example | |||||
| BJQ | 304-SUS304 | 01 - Single | AA-DOE | 10" - 10 | Material: SUS304 | |||||
| 316-SUS316L | 03 - Three | CN-226/FIN | 20" - 20 | Cartridge Nos.: Single | ||||||
| 05 - Five | BN-222/FIN | 30" - 30 | Cartridge adapter:226/FIN | |||||||
| AF-220/FLAT SEAL | 5" - 05 | Cartridge length: 10" | ||||||||
| BF-222/FLAT SEAL | Other - XX | |||||||||
| CF-226/FLAT SEAL | Selection Code is: BJQ30401CN10 | |||||||||
