Stainless Steel Liquid filter housing

Stainless Steel Liquid filter housing

Short Description:


Product Detail

Product Tags

Features and Benefits

◆Mirror Surface Finish Complete Stainless Steel Construction. Reduces bacterial/particlead hesion and no dead space. Excellent corrosion resistance
◆Easy To Install Design With Sanitary Connections,Easy to Clean. Available in tri-clamp,flanged and thread connections. Requires minimum floor space and quickly dismantle for easy cleaning
◆Housings Accommodate From One(1)to Many 10",20",30"or40" Cartridges. Suitable for small to large batch sizes and flow rates. High pressure &high temperature designs are available
◆Clean-in-Place(CIP)/Steam-in-Place(SIP)Design

Typical applications

• WaterTreatment,RO system
• Pharmaceuticals,API,Biologics
• Food and Beverage,Wine,Beer,Dairy,Mineral Water
• Paints,Inks Plating Solutions
• Process Chemicals and Electronics Industry
• Liquid prefiltration,particularly suitable for large volume or high viscosity liquids

asva

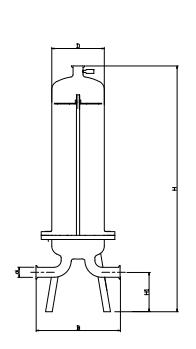

Specifications

Length: 5 inch, 10 inch, 20 inch or 30 inch
Inlet/outlet connection: Tri-Clamp or Flange or As customer requested
Flow rate(△P=1kpa): 3L - 500L/min or more
Type: Single Type or Multiple Type
*P: Design negative pressure of the tank

Order Information

PRODUCT CARTRIDGE NOS. LENGTH MATERIAL ADAPTER   How to Order?- Example
BJH 01 - Single 5" - 05 304-SUS304 CN - 226/FIN Cartridge Nos.: Single,   Length: 10"
03-Three 10" - 10 316-SUS316L BN - 222/FIN Material: SUS316,   Adapter: 226/Fin
05-Five 20" - 20 CF- 226/SEAL
And So on 30" - 30 BF- 222/FLAT Selection Code is: BJF0110316CN
