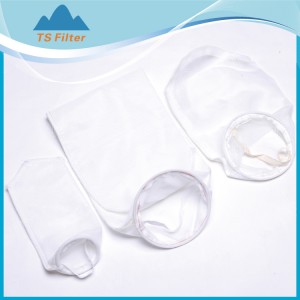

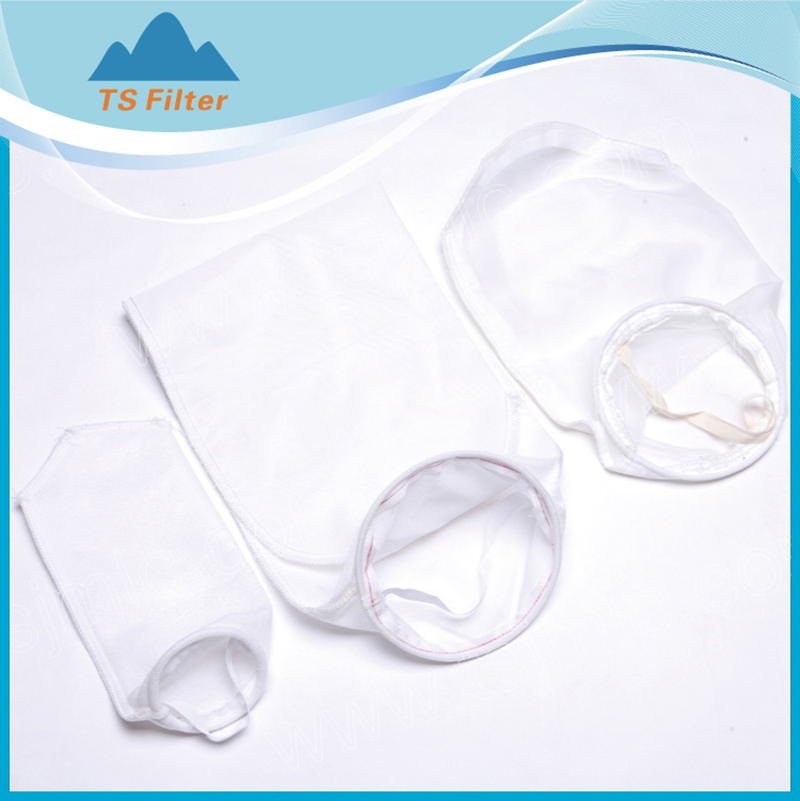

Filter Bag
◆ Economical
Filter bags provide cost effective filtration for industrial applications. High filtration performance and extended life time, Washable and reusable.
◆ Large Flow Rate
Suitable for the large volume or high viscosity liquid filtration.
◆ Wide Chemical Compatability
Filter bags are made of different materials in various micron ratings. Which can be compatible for many situations.
◆ 100% Welded Seams
All abutting edges are welded without media migration or bypass. Customized Filter Bags Are Available
Temp. | Aqueous | Aliphatic | Alkaline | Strong Alkaline | Aromatic | Acid | Strong Acid | |
PET | 130℃ | √ | √ | √ |
| √ | √ |
|
PPF | 90℃ | √ | √ | √ |
|
| √ | √ |
PPP | 90℃ | √ | √ | √ |
|
| √ | √ |
NMO | 130℃ | √ | √ | √ | √ | √ |
|
| Type | Flow rate(m3/h) | Filtration Area(m2) | Size (Diameter X Length) | |||
| #1 | 20 | 0.25 | 7" x 16" (180mm x410mm) | |||
| #2 | 40 | 0.5 | 7" x 32" (180mm x 810mm) | |||
| #3 | 6 | 0.1 | 4" x 8.25" (102mm x 210mm) | |||
| #4 | 12 | 0.15 | 4" x 14" (102mm x 356mm) | |||
| #5 | 25 | 0.3 | 6,7/8" x 34" (175mm x 870mm) | |||
| *Size could be on your request. | ||||||
| PRODUCT | MATERIAL | MICRON | SEAL TYPE | SIZE | How to Order ?-Example | |
| FB | PET | 5um-500 | Steel Ring- S | 1 | Polyester Filter Bag; 5um; Steel Ring; Size #1. Selection Code is: FBPET500S1 | |
| PPF | 10um-1000 | Polypropylene Ring -P | 2 | |||
| PPP | 25um-2500 | 3 | ||||
| NMO | 50um-5000 | 4 | ||||
| 75um-7500 | 5 | |||||
| 100um-10000 | X-special | |||||
