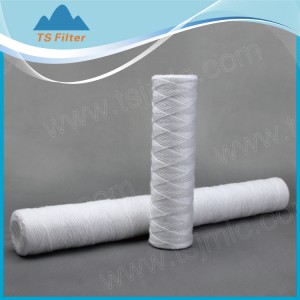

High Flow String Wound Filter Cartridge

High Flow String Wound Filter Cartridge

Short Description:


Product Detail

Product Tags

Features and Benefits

◆Polypropylene, bleached cotton and glass Fiber filter medias for option
◆High dirt holding capacity for depth filtration,protection of absolute filers
◆Many connections(Cut Ends, 226 ,222 End caps)are available
◆Wide chemical compatibility

Typical Applications

•Prefiltration for pure water system;
•Prefiltration for pharmaceutical and chemical solution
•Process and waste water prefiltration in electronics industry
•Wine,beer,mineral water,pure water,beverage filtration

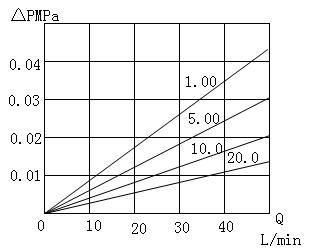

Table :  Typical water flow rate (10")

nerssa

Specifications

Materials Of Construction Filter Media: Polypropylene/Bleached Cotton/Glass Fiber
Micron Rating: 1.0, 5.0, 10, 20 um
Inner core: Polypropylene/Stainless Steel
O-rings/gaskets(Only for 226, 222 Ends): Silicone, Nitrile, EPDM, Viton, etc
Filtration Efficiency: ≥80%
Cartridge Dimensions Outer Diameter: 63mm(2.5"), 114mm(4.5")
Inner Diameter: 28mm(1.1")
Length(based on Cut Ends): 10"- 254mm, 20"- 508mm, 30"- 762 mm, 40" - 1016mm
Filtration Area(m2): 0.4 m2 per 10''
Operating conditions Max.Operating Temperature.:
Polypropylene: 80℃ (176℉) at △P≤1.0 bar (14psi)
Bleached Cotton: 150 ℃(300℉) at △P≤1.0 bar (14psi)
Max. Differential Pressure
Polypropylene: 4.0 bar(58psi) at 25℃ (77℉)
Bleached Cotton: 5.0 bar(72psi) at 25℃ (77℉)
PH Value compatibility: 1-13
Sterilization: Not recommended

Order Information

PRODUCT MICRON OUTER DIA. ADAPTER LENGTH CORE MATERIAL O-RING / GASKET
PSS- PP wound 100-1um D63-63mm AA- CUT ENDS (NIL) 10-10" P-PP S-silicone;     N-nitrile
CSS- Cotton Wound 500-5um D114-114mm BN-222/ FIN 20-20" S-SUS E-epdm ;       V- viton
GSS- Glass Fiber 1000-10um CN-226/ FIN 30-30"
2000-20um * Outer Dia.of Glass Fiber wound is only 63mm(2.5") 40-40" How to Order?- Example
Others-XX PP Wound; Micron:1um; Outer Dia:60mm;                                                                                                   Adapter: NIL; Length: 10", PP core
Selection Code is: PSS100D63AA10P
