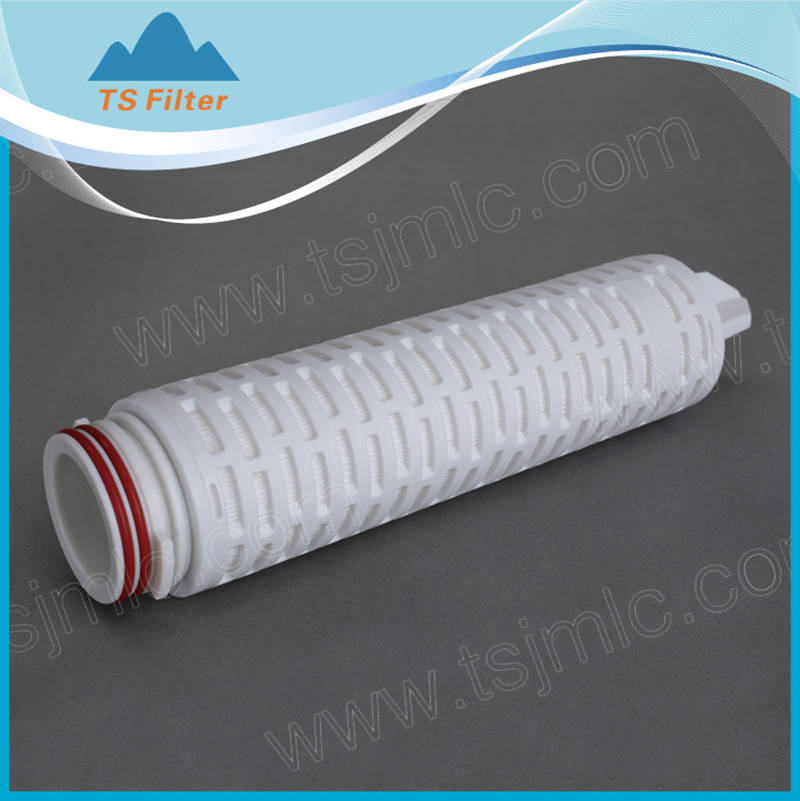

Hydophobic PTFE Filter Cartridge
Products Description
This hydrophobic PTFE pleated filter cartridge is specially engineered to repel aqueous liquids while enabling unimpeded gas & organic solvent passage, which is the core difference from hydrophilic PTFE filters that are dedicated to aqueous phase filtration. It maintains stable hydrophobicity even under high humidity and pressure conditions, effectively preventing liquid penetration and avoiding filter blockage caused by moisture condensation. The pleated structure maximizes filtration area while ensuring low flow resistance, perfectly balancing high filtration precision and smooth flux for continuous operation. Ideal for scenarios where moisture exclusion is critical, it eliminates cross-contamination risks and ensures process sterility, offering reliable and cost-effective filtration solutions for industrial, biopharmaceutical and electronics industries.
Specifications
| Materials Of Construction | Filter Media: | Hydrophobic PTFE membrane | ||||
| Support Layers: | Polypropylene | |||||
| Micron Rating: | 0.1, 0.2, 0.45, 0.65, 1.0, 3.0 um | |||||
| Inner core: | Reinforced Polypropylene/Stainless Steel | |||||
| Outer Cage: | Reinforced Polypropylene | |||||
| End caps: | Polypropylene / Stainless Steel Insert | |||||
| Seal Method: | Thermal Bonded, No Adhesives | |||||
| O-rings/gaskets: | Silicone, Nitrile, EPDM, Viton, Teflon, etc | |||||
| Cartridge Dimensions | Outer Diameter | 69mm(2.75'') | ||||
| Inner Diameter | 33mm(1.30'') | |||||
| Length(based on DOE end caps) | 10"- 254mm, 20"- 508mm, 30"-762 mm, 40"- 1016mm | |||||
| Filtration Area(m2) | 0.65 m2 per 10'' | |||||
| Operating conditions | Normal Operating Temperature: | Up to 65℃ (140℉) | ||||
| Max.Operating Temperature.: | 90℃ (194℉) at △P≤1.0 bar (14psi) | |||||
| Max. Differential Pressure | ||||||
| Normal Flow direction: | 4.2 bar (60 psi) at 25℃ (77℉) | |||||
| Reverse flow direction: | 2.1 bar (30psi) at 25℃ (77℉). | |||||
| PH Value compatibility: | 1-14 | |||||
| Sterilization: | Steam Sterilization for 30 minutes at 121±2 ℃, 100 cycles, Autoclave 30minutes (optional) | |||||
| Cartridge Safety | Endotoxin: | ＜0.25 EU/ml | ||||
| Extractables: | 0.03g / 10" | |||||
Order Information
| GRADE | PRODUCT | MICRON | ADAPTER | LENGTH | O-RING / GASKET | |
| P-PHARMACEUTICAL F- FOOD & BEVERAGE |
IPF | 010-0.1um 020-0.2um 045-0.45um |
AA- DOE CN-226/FIN BN-222/FIN BF-222/ FLAT SEAL CF-226/FLAT SEAL EN-222 three locking ears /Fin |
10-10" 20-20" 30-30" 40-40" 05-5" Other-XX |
S-silicone; N-nitrile E-epdm ; T-teflon (encaptulated) V-viton How to Order?- Example Pharmaceutical grade; Micron:0.45um; Length:10" ADAPTER: DOE; Gakset: Silicone. Selection Code is: PIPF045AA10S |
|

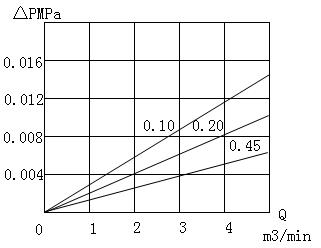

Table: Typical water flow rate (10")
Typical Applications
• Compressed air, CO2 line sterile filtration;
• Tank vent, Fermentation air,
• Air filtration in aseptic packaging.
• Aggressive acids, Bases, Solvents;
• Photoresists, Etch Solutions;
