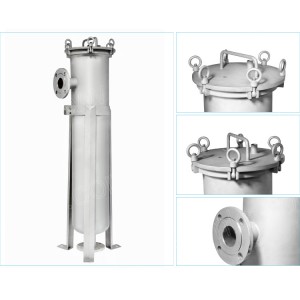

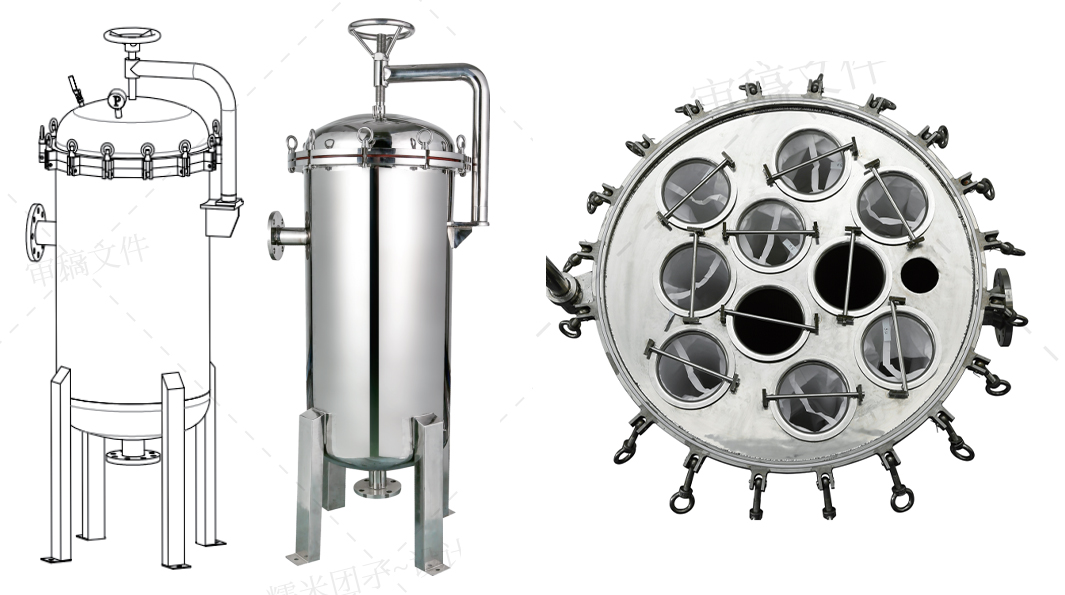

Stainless Steel Bag Filter Housing
◆Designed for Bag Filtration System. Consists of stainless steel housing,bag holder and filter bags. Wide range of bag sizes for choice
◆Complete Stainless Steel Structure. Quality stainless steel 304 or 316L material. High pressure & high temperature design are available
◆Meet the GMP Requirements. Smooth and round corner design,no dead space. Surface is mechanical/electro polished or sand blasting passivation
◆Clean-in-Place(CIP)/Steam-in-Place(SIP)Design
• Liquid prefiltration,particularly suitable for large volume or high viscosity liquids
| Technical Specification | ||
| Material: | Housing | Stainless Steel 304 and 316 for choice |
| Basket | Stainless Steel 304 and 316 for choice | |
| Gasket | Silicone, Viton, Teflon, etc | |
| Inlet/Outlet: | Size, type and position according customers’ requirement | |
| Vent: | ¼" NPT | |
| Drain: | 1" male or as your request. | |
| Surface finish: | Electro polished or Sand blasting | |
| Designed Pressure: | 9.6bar(139psi)with in 30mins. | |
| Max.operating pressure: | 6.0bar(87psi) | |
| Temperature: | Max. 95°C (sterilisation 150°C), relating to filter bag material | |
| Type | Model | Dimensions (mm) | Connection | Bag | Flow Rate | ||||
| D | H | Size | Q'ty (pc) | (m3/h) | |||||
| Single bag filters | BJD1 | 220 | 550 | 2" Female Pipe Thread / Tri-Clamp / Flange | #1 | One | 20 | ||
| BJD2 | 220 | 950 | #2 | 40 | |||||
| BJD4 | 130 | 650 | #4 | 12 | |||||

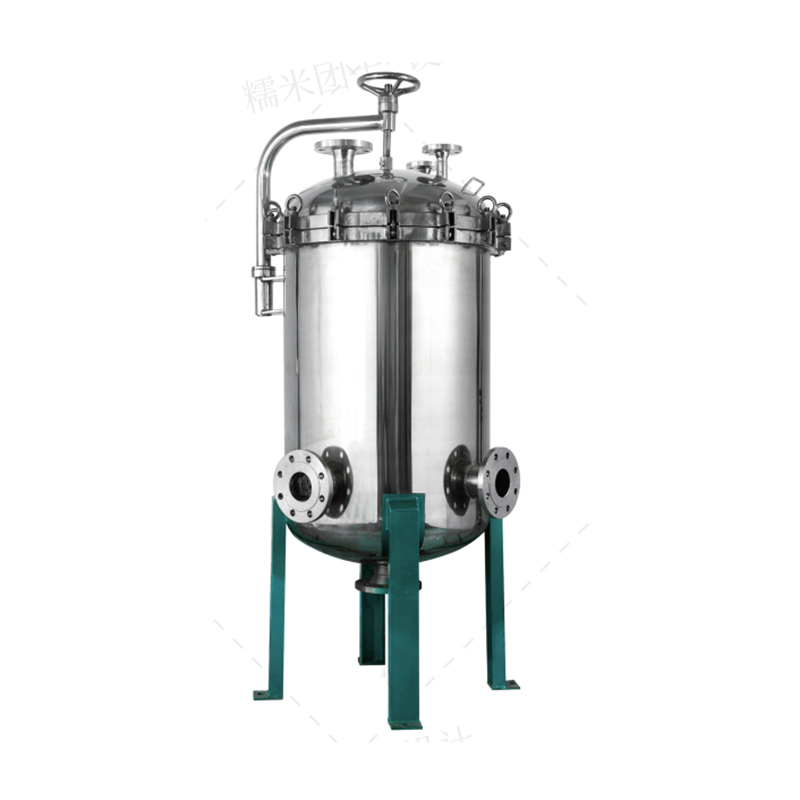

| Multi-bag filters | BJD2-2 | 400 | 1550 | 3" Female Pipe Thread / Tri-Clamp / Flange | #2 | Two | 80 | ||
| BJD2-3 | 500 | 1550 | #2 | Three | 120 | ||||
| BJD2-4 | 550 | 1550 | #2 | Four | 160 | ||||
| BJD2-5 | 600 | 1550 | #2 | Five | 200 | ||||
| BJD2-6 | 650 | 1620 | #2 | Six | 240 | ||||
| PRODUCT | BAG SIZE | BAG Q'TY | INLET/OUTLET | CONNECTION | SURFACE | MATERIALS | |||
| BJD | 1 - #1 bag | 01 - Single | A- side in and side out | K-Tri-Clamp | S-Sand blasting | SUS304 | |||
| 2 - #2 bag | 02 - Two | B- side in and bottom out | F-Flange | T-Polished | SUS316L | ||||
| 3 - #3 bag | 03 - Three | C- bottom in and bottom out | S-Thread | ||||||
| 4 - #4 bag | 04 - Four | D- top in and bottom out | How to order ?-Example | ||||||
| 5 - #5 bag | 06 - Six | Bag size: #1; Bag Q'ty: Single | |||||||
| 6 - #6 bag | 08 - Eight | Inlet/outlet: side in and side out | |||||||
| 7 - #7 bag | 12 - Twelve | Connection: Tri-Clamp | |||||||
| X - other size | Surface: Polished | ||||||||
| Material: SUS304 | |||||||||
| Selection code is: BJD101AKT304 | |||||||||
