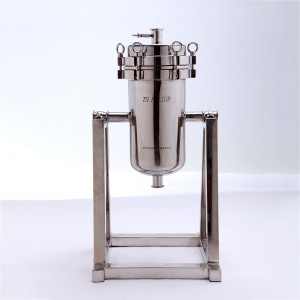

Titanium Filter Housing

Titanium Filter Housing

Short Description:


Product Detail

Product Tags

Features and Benefits

◆Stainless Steel 304 or 316L Filter Housing With Titanium Power Sintered Filter Cartridges Inside to Use. Electropolished filter housing, meet the GMP requirements
◆High Temperature Resisitant and Wide Chemical Compatiblity. Titanium filter cartridge can work under high temperature, can resist to strong acid and alkaline conditions
◆Long Serciving Life. Filter could be back flushed and cleaned by chemical solvent, hot water, steam
◆Easy To Install Design, Easy to Clean

Typical applications

•Widely used for prefiltration in food&beverage, pharmaceutical, chemical and other industries;
•Particularly suitable for decarburization filtration of LVP/SVP in pharmaceutical industry;
•Mineral water, pure water filtration after ozone sterilization;
•Steam/gas filtration.

Specifications

Designed pressure: 6.0bar(87psi)with in 30mins.
Max.operating pressure: 5.0bar(72.5psi)
Max.operating temperature: 180℃
Ti filter cartridge: Micron: 0.45um - 50um, OD=60mm
asvqw

Order Information

PRODUCT CARTRIDGE NOS. LENGTH MATERIAL MICRON ADAPTER   How to Order?- Example
BJTI 03 - Three 10" - 10 304-SUS304
316L-SUS316L
045 - 0.45um YBP - 1" BSP Thread Cartridge Nos.: Three,   Length: 10"
05 - Five 20" - 20 100 - 1.00um HBP - 1.5" BSP Thread Material: SUS304,   Ti Filter Micron: 0.45um
07 - Seven 5000 - 50um CF- 226/SEAL Adapter: 1" BSP Thread
others - xx BF- 222/FLAT Selection Code is: BJTI0310304045YBP

Specifications

Model Titanium Filter Cartridge Dimensions (mm)
Number Length D B DN(Outlet/Inlet)
BJTI0310 3 10" 168 300 25
BJTI0510 5 10" 200 300 25
BJTI0710 7 10" 273 310 25
BJTI0320 3 20" 168 550 32
BJTI0520 5 20" 200 550 32
BJTI0720 7 20" 273 560 32
