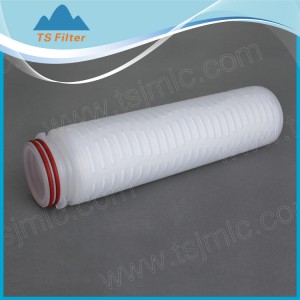

Hydrophobic PVDF Membrane Pleated Filter Cartridge

Hydrophobic PVDF Membrane Pleated Filter Cartridge

Short Description:

Product Detail

Product Tags

Features and Benefits

◆Hydrophobic PVDF membrane for gas and solvents sterile filtration
◆Absolute rating, filtration effective is ≥99.99%, Minimum micron to 0.01um for Air
◆Wide Chemical compatability, low protein binding
◆100% integrity test
◆Replace Sartorius ,Pall or Millipore Filter is available

Typical Applications

•Fermentation air,
•Tank vent;
•Compressed air,
•Sterile filtration of aggressive solvents/gases

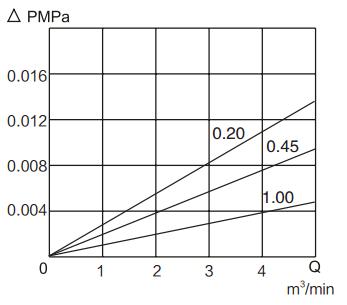

Table :  Typical water flow rate (10")



Materials Of Construction Filter Media: Hydrophobic PVDF Membrane
Support Layers: Polypropylene
Micron Rating: 0.1, 0.2, 0.45, 0.65, 1.0, 3.0 um
Inner core: Reinforced Polypropylene
Outer Cage, End caps: Reinforced Polypropylene
Seal Method: Thermal Bonded, No Adhesives
 O-rings/gaskets: Silicone, Nitrile, EPDM, Viton, Teflon, etc
Cartridge Dimensions Outer Diameter 69mm(2.75'')
Inner Diameter 33mm(1.30'')
Length(based on DOE end caps) 10"- 254mm, 20"- 508mm, 30"-762 mm, 40"- 1016mm
Filtration Area(m2) 0.65 m2 per 10''
Operating conditions Normal Operating Temperature: Up to 65℃ (140℉)
Max.Operating Temperature.: 90℃ (194℉) at △P≤1.0 bar (14psi)
Max. Differential Pressure
Normal Flow direction:  4.2 bar (60 psi) at 25℃ (77℉)
Reverse flow direction: 2.1 bar (30psi) at  25℃ (77℉).
PH Value compatibility:  1-13
Sterilization:  Steam Sterilization for 30 minutes at 135℃(275℉)
Cumulative Time: 50hours
Cartridge Safety Endotoxin: <0.25 EU/ml
Extractables: 0.03g / 10"

Order Information

P-PHARMACEUTICAL DPV 020-0.2um AA- DOE 10-10"  S-silicone;      N-nitrile
F-FOOD & BEVERAGE 045-0.45um CN-226/FIN 20-20"  E-epdm ;        T-teflon (encaptulated)
H-Chemical 100-1.0um BN-222/FIN 30-30"  V-viton
BF-222/ FLAT SEAL 40-40" How to Order?- Example
CF-226/FLAT SEAL 05-5" Pharmaceutical grade; Micron:0.45um; Length:10"  ADAPTER: DOE; Gakset: Silicone.                                                                                                     Selection Code is: PDPV045AA10S
EN-222 three locking  ears /Fin Other-XX
