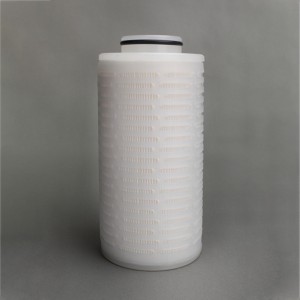

High Flow Pleated Filter Cartridge

High Flow Pleated Filter Cartridge

Short Description:


Product Detail

Product Tags

Features and Benefits

◆High water flow rate and longer service life
◆Large filtration area,reduce the numbers of filters required
◆Excellent compatibility with various process liquids
◆Single open end filter,easy to change-out
◆Available in a wide range of removal ratings

Typical Applications

•Wet cleaning process in Thin Film Transistor Liquid Crystal Display (TFT LCD) manufacturing
•Semiconductor or other electronic industrial processes water purification;
•Large volume of clarification and sterile filtration in Food&beverage industry
•High pressure and flow rate water filtration in pharmaceutical and chemical industry

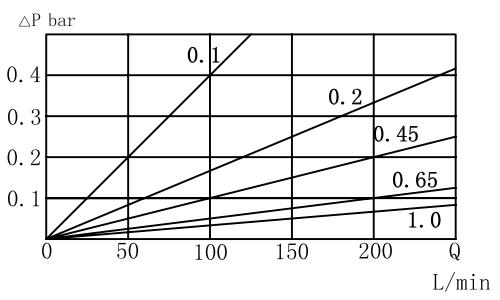

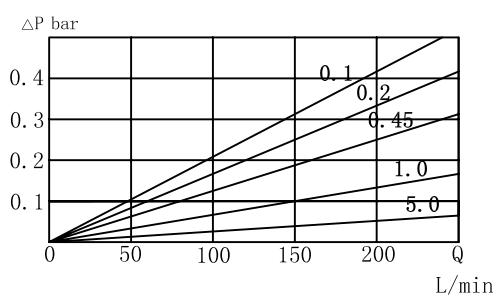

Table :  Typical water flow rate (10")

vassaq
gadf21
ncve1

Specifications

Materials Of Construction Filter Media: PP/PES/PTFE/PVDF/Nylon
Support Layers: Polypropylene
Inner core: Reinforced Polypropylene
Outer Cage, End caps: Reinforced Polypropylene
Seal Method: Thermal Bonded, No Adhesives
O-rings/gaskets: Silicone, EPDM, Viton, Teflon, etc
Cartridge Dimensions Outer Diameter 83mm(3.26"), 130mm(5.11")
Inner Diameter 40mm(1.57"), 63mm(2.48")
Length 10" only
Filtration Area(m2)  ODΦ83mm×10”≧1.0m2
ODΦ130mm×10”≧2.0m2
Operating conditions Normal Operating Temperature: Up to 60℃ (140℉)
Max.Operating Temperature.: 80℃ (176℉) at △P≤1.0 bar (14psi)
Max. Differential Pressure
Normal Flow direction:  4.2 bar (60 psi) at 25℃ (77℉)
Reverse flow direction: 2.1 bar (30psi) at  25℃ (77℉).
PH Value compatibility: According to different filter medias
Cartridge Safety Endotoxin: <0.25 EU/ml
Extractables: 0.03g / 10"

Order Information

GRADE TYPE OUTER DIAMETER(mm) FILTER MEDIA MICRON ADAPTER LENGTH  O-RING / GASKET
P- PHARMACEUTICAL LF 83 DPP 020-0.2um 322 10-10'' S-silicone;      N-nitrile
F- FOOD 130 IPS 045-0.45um 321 E-epdm ;        V-Viton
E- ELECTRONIC 065-0.65um How to Order?- Example
100-1.00um Pharmaceutical grade; Filter Media:IPS; Micron:0.2um; Length:10''; Outer diameter:83;Adapter:322; O-ring: Silicone.                                                                                                     Selection Code is: PLF83IPS02032210S
