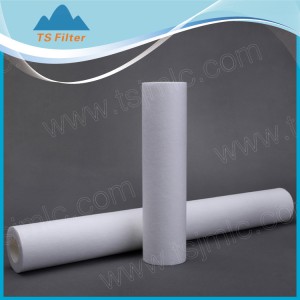

High Flow Melt Blown Filter Cartridge

High Flow Melt Blown Filter Cartridge

Short Description:


Product Detail

Product Tags

Features and Benefits

◆100% high purity polypropylene (melt blown), thermally bonded on a polypropylene centre core, no adhesives
◆High dirt holding capacity and low pressure loss
◆Many connections (DOE, 226 ,222 End caps) are available
◆Wide chemical compatibility, various micron ratings (1um to 100um)
◆One piece construction up to 1524mm (60”)

Typical Applications

• Prefiltration in process water treatment industry;
• Clarification for waste water treatment;
• Bottled water, wine, beer pre-fltration in food& beverage industry
• Prefiltration before RO system in electronics process water,
• Organic solvents, inks, plating solution, metal cutting luids, photoresist filtration

Table :  Typical water flow rate (10")

vwqebsdwdbe

Specifications

Materials Of Construction Filter Media: Melt Blown Polypropylene
Micron Rating: 1.0, 5.0, 10.0, 20, 50, 70, 100um
Inner core: Polypropylene or Coreless
O-rings/gaskets(Only for 226, 222 Ends): Silicone, Nitrile, EPDM, Viton, etc
Filtration Efficiency ≥80%
Cartridge Dimensions Outer Diameter 63mm (2.5") / 114mm (4.5")
Inner Diameter 28mm (1.10")
Length(based on DOE end caps) 10"- 254mm, 20"- 508mm, 30"-762 mm, 40"- 1016mm
Filtration Area(m2) 0.4 m2 per 10''
Operating conditions Normal Operating Temperature: Up to 50℃ (122℉)
Max.Operating Temperature.: 80℃ (176℉) at △P≤1.0 bar (14psi)
Max. Differential Pressure
Normal Flow direction:  4.0 bar (58psi) at 25℃ (77℉)
Reverse flow direction: 2.0 bar (29psi) at  25℃ (77℉).
PH Value compatibility: 1-13
Sterilization:  Not recommended

Order Information

PRODUCT MICRON Outer DIA. ADAPTER LENGTH  O-RING / GASKET
CP 100-1um D63-63mm(2.5") AA- CUT ENDS (NIL) 10-10"  S-silicone;     N-nitrile
500-5um D114-114mm(4.5") BN-222/ FIN 20-20"  E-epdm ;       V- viton
1000-10um CN-226/ FIN 30-30"
2000-20um 40-40" How to Order?- Example
Other-XX Micron:1um; Outer Dia:63mm;                                                                                                     Adapter: NIL; Length: 10"
Selection Code is: CP100D63AA10
