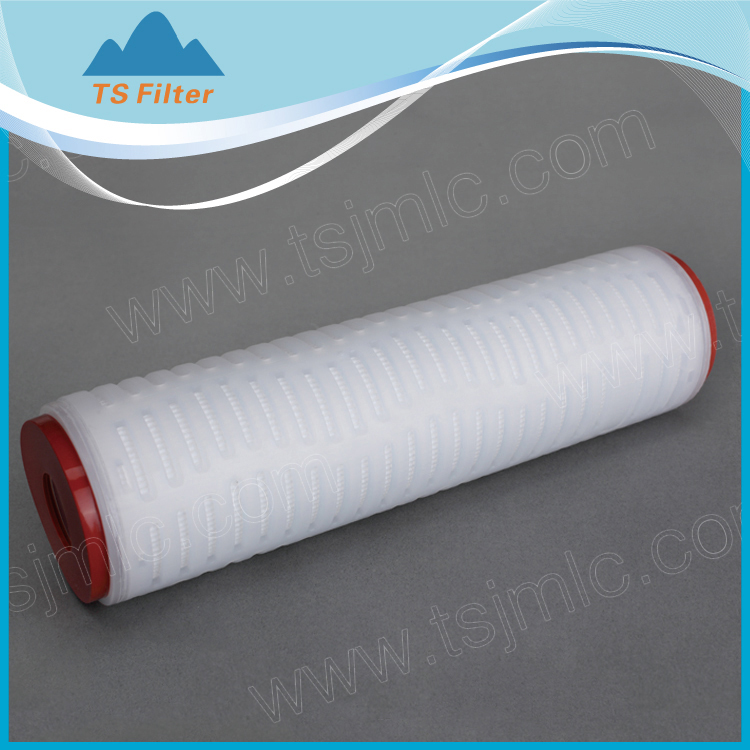

Single Layered PP Pleated Filter Cartridge

Single Layered PP Pleated Filter Cartridge

Short Description:


Product Detail

Product Tags

Features and Benefits

◆ Graded density ultra fine polypropylene membrane filter, could provide absolute rating
◆ Pleated depth media for high flow rate and maximum dirt holding capacity
◆ 100% polypropylene construction offers broad chemical compatibility
◆ High retention efficiency provide excellent protection of downstream filters
◆ No fiber migration into the process fluid
◆ Replace Sartorius ,Pall or Millipore Filter is available

Typical Applications

•Pharmaceuticals; APIs; Biologics; Opthalmics;
•Plating solutions; Ink;
•Fine Chemicals, Photoresists, Acids, Bases, Solvents
•Semi-Conductor, LCD Display; Discs.

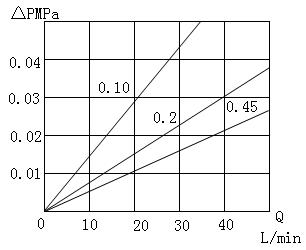

Table :  Typical water flow rate (10")

123tgh

Specifications

Materials Of Construction Filter Media: Polypropylene
Support Layers: Polypropylene
Micron Rating: 0.1, 0.2, 0.45, 0.65, 1.0, 3.0, 5.0um
Inner core: Polypropylene
Outer Cage, End caps: Polypropylene
Seal Method: Thermal Bonded, No Adhesives
 O-rings/gaskets: Silicone, Nitrile, EPDM, Viton, Teflon, etc
Cartridge Dimensions Outer Diameter 69mm(2.75'')
Inner Diameter 33mm(1.30'')
Length(based on DOE end caps) 10"- 254mm, 20"- 508mm, 30"-762 mm, 40"- 1016mm
Filtration Area(m2) 0.65 m2 per 10''
Operating conditions Normal Operating Temperature: Up to 60℃ (140℉)
Max.Operating Temperature.: 80℃ (172℉) at △P≤1.0 bar (14psi)
Max. Differential Pressure
Normal Flow direction:  4.2 bar (60 psi) at 25℃ (77℉)
Reverse flow direction: 2.1 bar (30psi) at  25℃ (77℉).
PH Value compatibility:  1-13
Sterilization: Steam Sterilization for 30 minutes at 121±2 ℃,
Cumulative Time:15hours;
Flush with hot water at 82℃(180℉) for 30 minutes,
at △P≤1.0 bar (14psi) -- Recommended.
Cartridge Safety Endotoxin: <0.25 EU/ml
Extractables: 0.03g / 10"

Order Information

GRADE PRODUCT MICRON ADAPTER LENGTH    O-RING / GASKET
H-CHEMICAL IPP 010-0.1um AA- DOE 10-10"  S-silicone;      N-nitrile
E- ELECTRICAL 020-0.20um CN-226/FIN 20-20"  E-epdm;         T-teflon (encaptulated)
P-PHARMACEUTICAL 045-0.45um BN-222/FIN 30-30"  V-viton
F- FOOD & BEVERAGE 100-1.00um BF-222/ FLAT SEAL 40-40" How to Order?- Example
CF-226/FLAT SEAL 05-5" Pharmaceutical grade; Micron:0.5um; Length:10"  ADAPTER: DOE; Gakset: Silicone.                                                                                                     Selection Code is: PIPP050AA10S
EN-222 three locking  ears /Fin Other-XX
