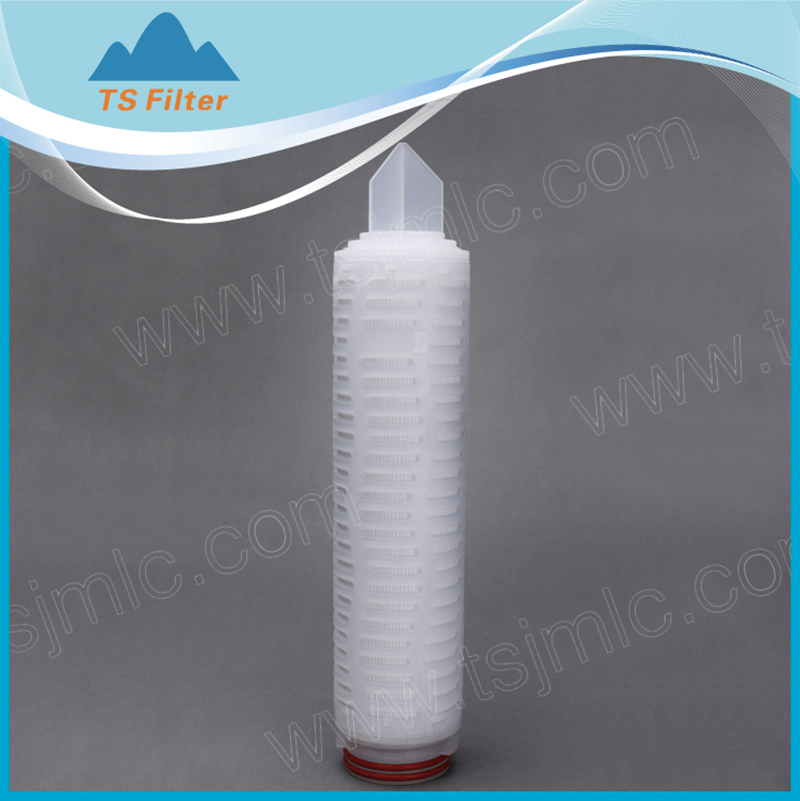

Hydrophilic PTFE Membrane Pleated Filter Cartridge
Products Description
This hydrophilic PTFE pleated filter cartridge is exclusively designed for liquid-phase sterile filtration, a key distinction from hydrophobic counterparts dedicated to gas & organic solvent filtration. It features instant wettability without prewetting, ensuring quick, hassle-free startup and consistent filtration performance from the first use. The uniform pore-size structure boosts flux while retaining ultra-high filtration accuracy, effectively capturing fine contaminants without clogging easily. With low extractable levels and zero fiber releasing, it meets strict sterile and pure filtration standards, avoiding secondary contamination to protect your product quality. It is widely trusted in food & beverage, pharmaceutical and water treatment industries for its stable performance in harsh liquid filtration scenarios.
Specifications
| Materials Of Construction | Filter Media: | Hydrophilic PTFE membrane | ||||
| Support Layers: | Polypropylene | |||||
| Micron Rating: | 0.1, 0.2, 0.45, 0.65,1.0, 3.0um | |||||
| Inner core: | Reinforced Polypropylene | |||||
| Outer Cage, End caps: | Reinforced Polypropylene | |||||
| Seal Method: | Thermal Bonded, No Adhesives | |||||
| O-rings/gaskets: | Silicone, Nitrile, EPDM, Viton, Teflon, etc | |||||
| Cartridge Dimensions | Outer Diameter | 69mm(2.75'') | ||||
| Inner Diameter | 33mm(1.30'') | |||||
| Length(based on DOE end caps) | 10"- 254mm, 20"- 508mm, 30"-762 mm, 40"- 1016mm | |||||
| Filtration Area(m2) | 0.65 m2 per 10'' | |||||
| Operating conditions | Normal Operating Temperature: | Up to 65℃ (140℉) | ||||
| Max.Operating Temperature.: | 90℃ (194℉) at △P≤1.0 bar (14psi) | |||||
| Max. Differential Pressure | ||||||
| Normal Flow direction: | 4.2 bar (60 psi) at 25℃ (77℉) | |||||
| Reverse flow direction: | 2.1 bar (30psi) at 25℃ (77℉). | |||||
| PH Value compatibility: | 1-14 | |||||
| Sterilization: | Steam Sterilization for 30 minutes at 121±2 ℃, 100 cycles, Autoclave 30minutes (optional) | |||||
| Cartridge Safety | Endotoxin: | ＜0.25 EU/ml | ||||
| Extractables: | 0.03g / 10" | |||||
Order Information
| GRADE | PRODUCT | MICRON | ADAPTER | LENGTH | O-RING / GASKET | |
| H - Chemical E - ELECTRONIC P - Phamar F - Food |
IHPF | 010-0.1um 020-0.2um 045-0.45um |
AA- DOE CN-226/FIN BN-222/FIN BF-222/ FLAT SEAL CF-226/FLAT SEALEN-222 three locking ears /Fin |
10-10" 20-20" 30-30" 40-40" 05-5" Other-XX |
S-silicone; N-nitrile E-epdm; T-teflon (encaptulated) V-viton How to Order?- Example Pharmaceutical grade; Micron:0.45um; Length:10" ADAPTER: DOE; Gakset: Silicone. Selection Code is: PIHPF045AA10S |
|

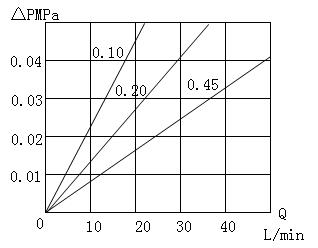

Table: Typical water flow rate (10")
Typical Applications
• Mineral water, purified water, ozone, strong oxidizing liquid filtration
• High temperature liquids filtration
• Strong alkali, acids, corrosive liquids filtration
