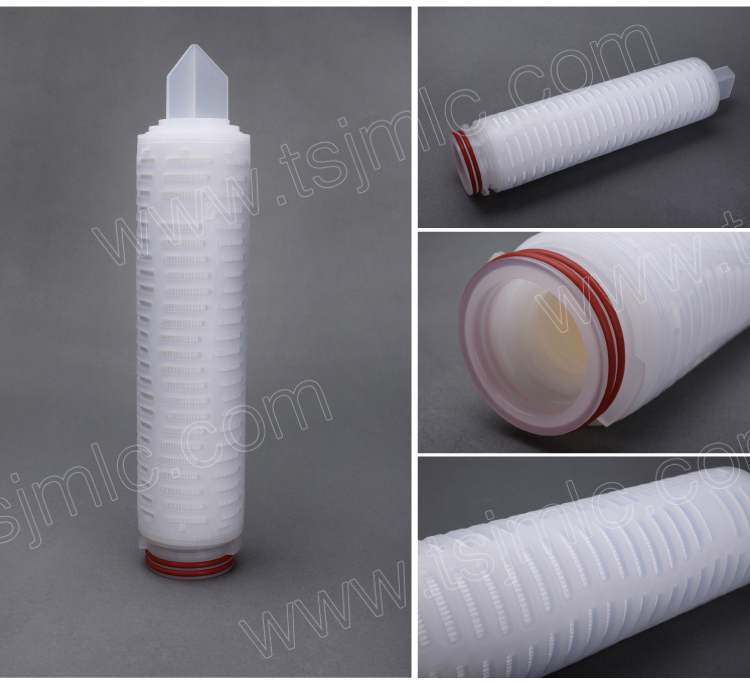

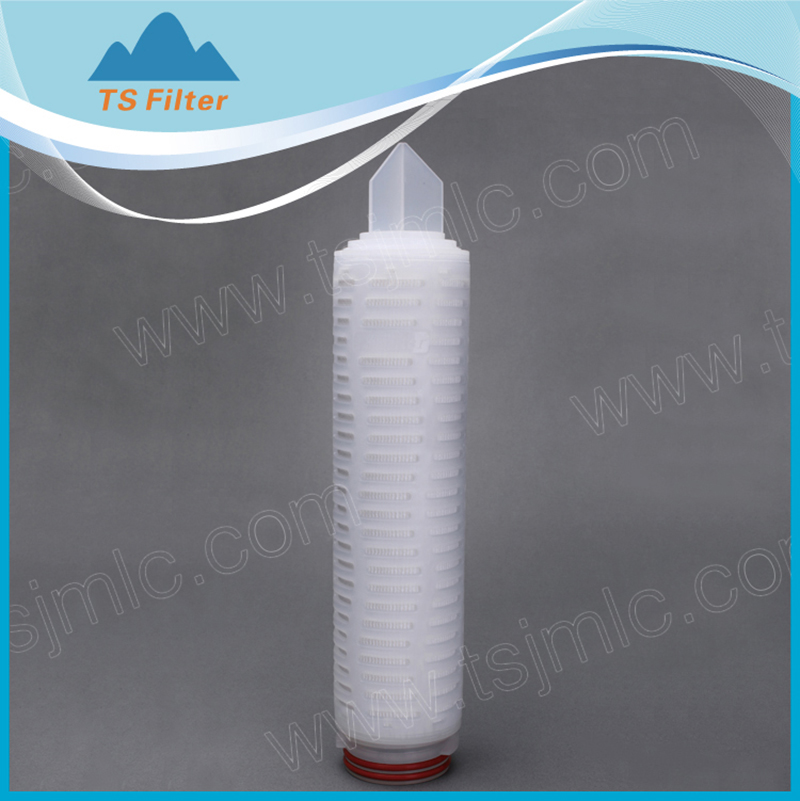

Polyethersulfone (PES) membrane Pleated Filter Cartridge
◆Absolute rate inherently hydrophilic PES membrane filter for sterile filtration
◆Highly asymmetric PES membrane provides high dirt holding capacity and longer service life
◆Extremely high low rate and low pressure drop
◆Low protein binding and wide chemical compatibility
◆Excellent resistance to hydrolysis allows use in Ultra Pure Water(UPW)system
◆Replace Sartorius ,Pall or Millipore Filter is available
•Sterile filtration for water, mineral water, wine, beer and other beverages
•Ultrapure water and disk, display, multi silicon process water in electronics
•Fine chemicals, water process;
•API,LPV,blood serum, biologicals, buffers and other pharmaceuticals

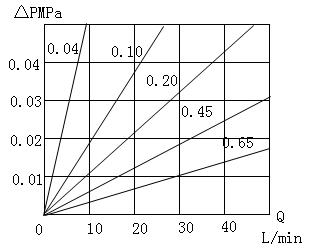

Table : Typical water flow rate (10")
| Materials Of Construction | Filter Media: | Asymmetric PES Membrane | ||||
| Support Layers: | Polypropylene | |||||
| Micron Rating: | 0.04, 0.1, 0.2, 0.45, 0.65, 0.85, 1.2 um | |||||
| Inner core: | Reinforced Polypropylene | |||||
| Outer Cage, End caps: | Reinforced Polypropylene | |||||
| Seal Method: | Thermal Bonded, No Adhesives | |||||
| O-rings/gaskets: | Silicone, Nitrile, EPDM, Viton, Teflon, etc | |||||
| Cartridge Dimensions | Outer Diameter | 69mm(2.75'') | ||||
| Inner Diameter | 33mm(1.30'') | |||||
| Length(based on DOE end caps) | 10"- 254mm, 20"- 508mm, 30"-762 mm, 40"- 1016mm | |||||
| Filtration Area(m2) | 0.65 m2 per 10'' | |||||
| Operating conditions | Normal Operating Temperature: | Up to 60℃ (140℉) | ||||
| Max.Operating Temperature.: | 85℃ (185℉) at △P≤1.0 bar (14psi) | |||||
| Max. Differential Pressure | ||||||
| Normal Flow direction: | 4.2 bar (60 psi) at 25℃ (77℉) | |||||
| Reverse flow direction: | 2.1 bar (30psi) at 25℃ (77℉). | |||||
| PH Value compatibility: | 2-13 | |||||
| Sterilization: | Steam Sterilization for 30 minutes at 121±2 ℃, Cumulative Time:8 hours; | |||||
| Cartridge Safety | Endotoxin: | ＜0.25 EU/ml | ||||
| Extractables: | 0.03g / 10" | |||||
| GRADE | PRODUCT | MICRON | ADAPTER | LENGTH | O-RING / GASKET | |
| H - Chemical | IPS | 004-0.04um | AA- DOE | 10-10" | S-silicone; N-nitrile | |
| E - ELECTRONIC | 010-0.1um | CN-226/FIN | 20-20" | E-epdm ; T-teflon (encaptulated) | ||
| P - Phamar | 020-0.2um | BN-222/FIN | 30-30" | V-viton | ||
| F - Food | 045-0.45um | BF-222/ FLAT SEAL | 40-40" | How to Order?- Example | ||
| 065-0.65um | CF-226/FLAT SEAL | 05-5" | Pharmaceutical grade; Micron:0.45um; Length:10" ADAPTER: DOE; Gakset: Silicone. Selection Code is: PIPS045AA10S | |||
| EN-222 three locking ears /Fin | Other-XX | |||||
