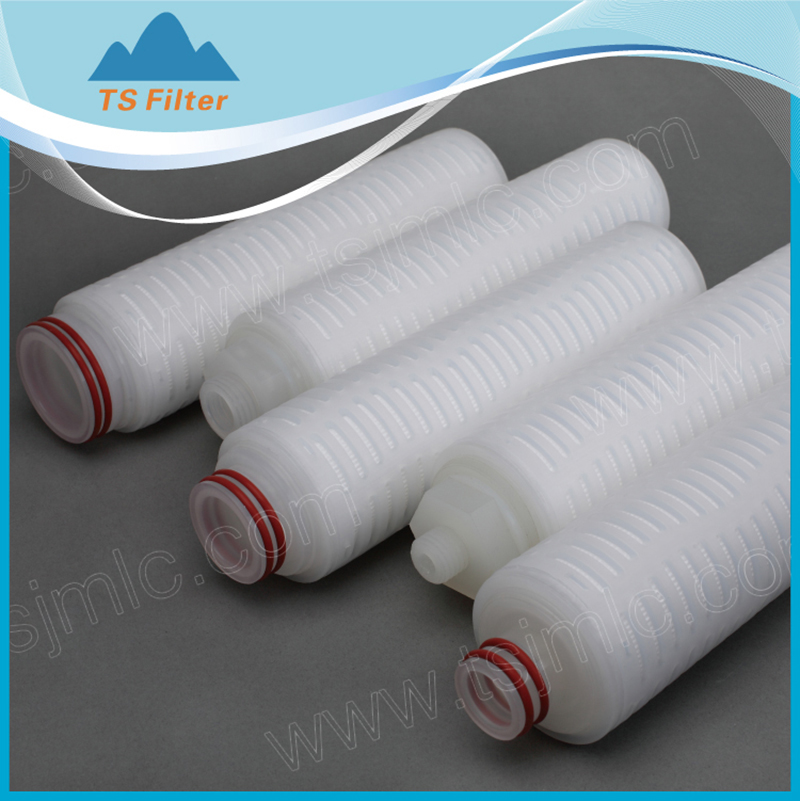

Glass Fiber (GF) Membrane Pleated Filter Cartridge
◆High dirt holding capacity and good flow performance
◆Suitable for the retention of colloids, lipids and clarification of liquids
◆Wide chemical compatibility, pH range from 1 to 13, excellent oils resistance
◆Economical for protection of final membrane filters
•Clarification of wine, spirits, fruit juices, soft drinks or other beverages;
•Fine chemicals including reagent, inks and paints;
•Colloids and viscous contaminants removal in pharmaceuticals, as vaccines, culture medias, etc;
•Clarification of cosmetics;
•Kinds of lubricating oil and hydraulic oil clarification;

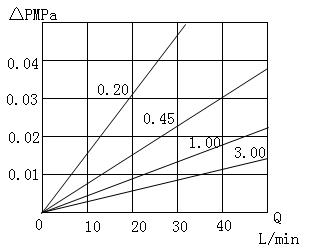

Table : Typical water flow rate (10")
| Materials Of Construction | Filter Media: | Glass Microfiber(GF) | ||||
| Support Layers: | Polypropylene | |||||
| Micron Rating: | 0.2, 0.45, 1.0, 3.0, 5.0um | |||||
| Inner core: | Polypropylene | |||||
| Outer Cage, End caps: | Polypropylene | |||||
| Seal Method: | Thermal Bonded, No Adhesives | |||||
| O-rings/gaskets: | Silicone, Nitrile, EPDM, Viton, Teflon, etc | |||||
| Cartridge Dimensions | Outer Diameter | 69mm(2.75'') | ||||
| Inner Diameter | 33mm(1.30'') | |||||
| Length(based on DOE end caps) | 10"- 254mm, 20"- 508mm, 30"-762 mm, 40"- 1016mm | |||||
| Filtration Area(m2) | 0.5 m2 per 10'' | |||||
| Operating conditions | Normal Operating Temperature: | Up to 60℃ (140℉) | ||||
| Max.Operating Temperature.: | 85℃ (185℉) at △P≤1.0 bar (14psi) | |||||
| Max. Differential Pressure | ||||||
| Normal Flow direction: | 4.2 bar (60 psi) at 25℃ (77℉) | |||||
| Reverse flow direction: | 2.1 bar (30psi) at 25℃ (77℉). | |||||
| PH Value compatibility: | 1-13 | |||||
| Sterilization: | In-line steam sterilization is Not recommended, Flush with hot water at 82℃(180℉) for 30 minutes | |||||
| Cartridge Safety | Endotoxin: | ＜0.25 EU/ml | ||||
| Extractables: | 0.03g / 10" | |||||
| GRADE | PRODUCT | MICRON | ADAPTER | LENGTH | O-RING / GASKET | |
| P- PHARMACEUTICAL | GF | 020-0.20um | AA- DOE | 10-10" | S-silicone; N-nitrile | |
| F- FOOD & BEVERAGE | 045-0.45um | CN-226/FIN | 20-20" | E-epdm; T-teflon (encaptulated) | ||
| G- General | 100-1um | BN-222/FIN | 30-30" | V-viton | ||
| 300-3um | BF-222/ FLAT SEAL | 40-40" | How to Order?- Example | |||
| 500-5um | CF-226/FLAT SEAL | 05-5" | Pharmaceutical grade; Micron:0.50um; Length:10" ADAPTER: DOE; Gakset: Silicone. Selection Code is: PGF050AA10S | |||
| EN-222 three locking ears /Fin | Other-XX | |||||
