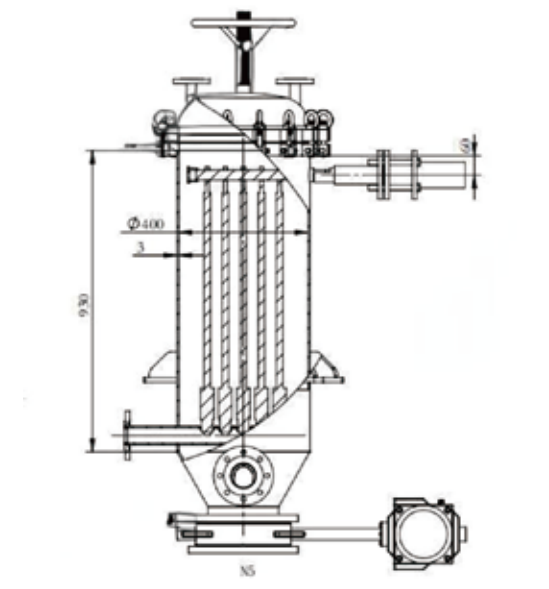

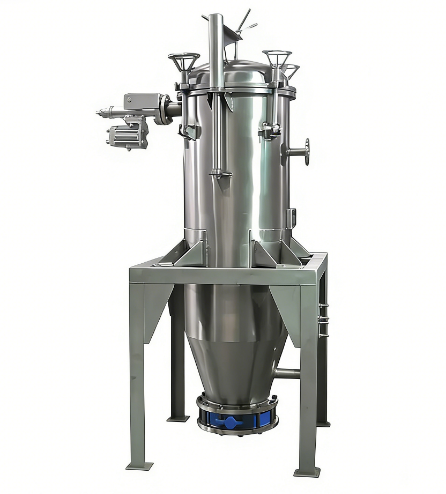

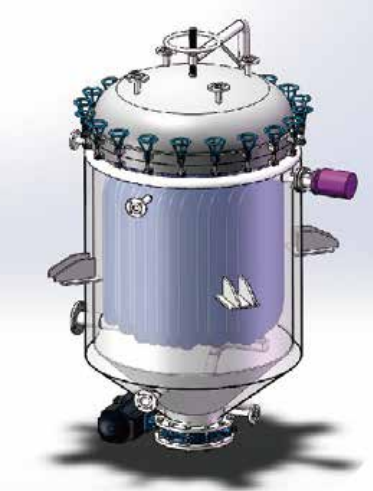

Vertical Leaf Filter Housing
Technical Specification
| Material: | Housing | Stainless Steel 304, 316L and 2205 for choice |
| Filter Plate | 304 316L 2205 / 5 layer sintering (300 mesh, 380 mesh, 400 mesh) | |
| Sealing | Silicone, Viton, EPDM, PTFE | |
| Polishing Type: | Mechanical Polished/Electro Polished | |
| Roughness of Polishing: | Interior Ra 0.3 um/ Exterior Ra 0.4 um | |
Specifications
| Type | FILTER AREA(㎡) | FILTER CAKE VOLUME(L) | GREASE PROCESSING CAPACITY(T/h.㎡) | RESIN PROCESSING CAPACITY(T/h.㎡) | BEVERAGE PROCESSING CAPACITY(T/h.㎡) | VOLUME(L) | OPERATING PRESSURE(Mpa) | CYLINDER DIAMETER(mm) | HEIGHT(mm) | BLADE SPACING(mm) | OUTER DIMENSIONS(mm) |
| YP-2 | 2 | 30 | 0.4-0.6 | 1-1.5 | 1-2 | 140 | 0.1-0.5Mpa | 400 | 1730 | 56 | 655*1074 |
| YP-5 | 5 | 60 | 0.8-1.2 | 2-3 | 2-4 | 390 | 0.1-0.5 Mpa | 600 | 2092 | 56 | 800*1260 |
| YP-7 | 7 | 105 | 1.4-2 | 3-5 | 4-8 | 420 | 0.1-0.5 Mpa | 700 | 2185 | 56 | 980*1330 |
| YP-10 | 10 | 150 | 2-3 | 5-8 | 5-10 | 860 | 0.1-0.5 Mpa | 800 | 2546 | 68 | 1030*1480 |
| YP-15 | 15 | 240 | 2.4-3.6 | 6-9 | 6-12 | 1320 | 0.1-0.5 Mpa | 1000 | 2600 | 68 | 1250*1690 |
| YP-20 | 20 | 300 | 3-5 | 7-12 | 8-16 | 1320 | 0.1-0.5 Mpa | 1000 | 2900 | 68 | 1250*1690 |
| YP-25 | 25 | 400 | 4-6 | 10-15 | 10-20 | 1170 | 0.1-0.5 Mpa | 1100 | 2900 | 68 | 1500*1600 |
| YP-30 | 30 | 500 | 5-7 | 12-18 | 12-24 | 2200 | 0.1-0.5 Mpa | 1200 | 3200 | 70 | 1600*1800 |
