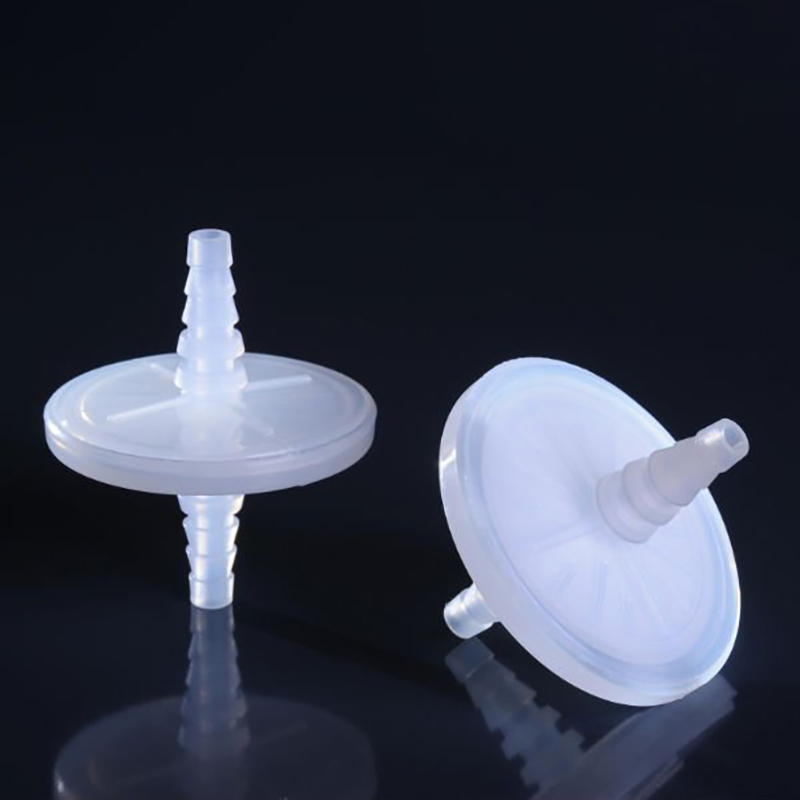

Venting Syringe Filters

Vent syringe filters made of hydrophobic membranes are commonly used in air or gas filtration applications, and for venting bioreactors, fermentation tanks, and carboys. The important considerations when selecting a gas or vent filter are air flow rate and particulate or microorganism retention. The build-in membranes must provide sufficient surface area to accommodate the air flow required by the system. TS Filter offers a broad portfolio of vent filters with effective filtration areas range up to 17.20 cm².

    Specifications

    Materials Of Construction Filter Media: Hydrophobic PTFE
    Outer Cage: Polypropylene
    Inlet/Outlet: Stepped hose barb 1/4”~3/8”
    Seal Method: Thermal Bonded, No Adhesives
    Cartridge Dimensions Diameter 50mm
    Filtration Area(m2) ≥17.2
    Operating conditions Volume Throughput (ml) 800
    Max.Operating Temperature.: 50℃ at △P≤1.0 bar (14psi)
    Max. Differential Pressure 75psi (5.0 bar) at 20 °C
    PH Value compatibility: 1-14
    Sterilization:  Autoclave for 30 minutes at 121℃

    Order Information

    TYPE DIAMETRE FILTER MEDIA MICRON FEATURE PACKAGE
    FBS 50-50mm PTFE 022-0.22um
    045-0.45um
    L-Hydrophibility
    H-Hydrophobic
    25 pcs per pack
    How to Order?- Example
    Membrane: Hydrophobic PTFE, Pore Size: 0.22 um, Diameter: 50mm
    Selection Code is: FBS50PTFE022H

    Validated Hplc Performance

    ◆ HPLC certification guarantees the filters will not produce extraneous peaks in the UV range.

    ◆ 100% integrity tested with higher burst strength ratings assuring they will perform consistently.

    ◆ Available in sterile, too.
