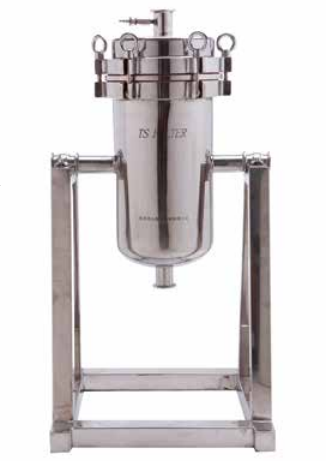

Titanium Cartridge Rotary Filter Housing

Designed for high-precision industrial filtration processes, the filter housing is crafted from premium 316L and 304 stainless steel with mirror polishing treatment on both internal and external surfaces, ensuring exceptional durability and hygiene for critical applications. Its titanium filter cartridge boasts outstanding corrosion resistance, high temperature tolerance and impact resistance, featuring non-toxic performance, no particle shedding, no adsorption of pharmaceutical ingredients, a long service life, easy cleaning and reusability for cost-effective operation.
As a deep filtration component, the titanium cartridge enables particles to adhere firmly to the pore channel walls and form a "bridging effect", which intercepts particles smaller than the cartridge's nominal pore size and greatly enhances overall filtration precision for consistent, high-quality results.

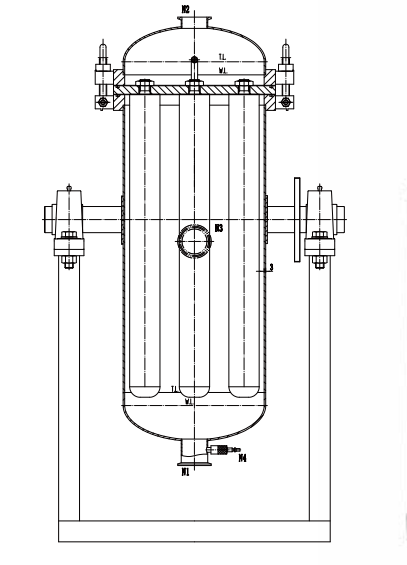

    5" vent housing drawing

    D7

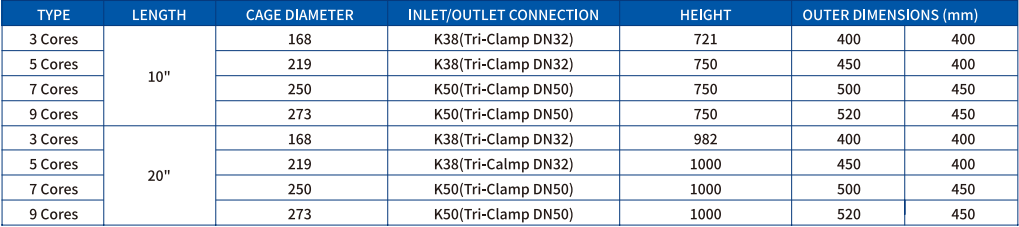

    Specifications

    d8

    Order Information

    PRODUCT MATERIAL CARTRIDGE NOS. CARTRIDGE NOS. ADAPTER LENGTH   How to Order?- Example
    BJTI 304-SUS304
    316-SUS316L
    03 - Three
    05 - Five
    07 - Seven
    X - More
    045 - 0.45 um
    100- 1.00 um
    5000 - 50 um
    Other - XX
    BF-222/FLAT SEAL
    CF-226/FLAT SEAL
    YBP-1'' BSP Thread
    HBP-1.5'' BSP Thread
    10" - 10
    20" - 20
    Other - XX
    Material: SUS304
    Cartridge Nos.: Three
    Cartridge adapter:1'' BSP Thread
    Cartridge length: 10"
    Selection Code is: BJTI0310304045YBP
