Tiny Integrated Disposable Capsule Filter

◆ Custom membrane & connection options

◆ Safe, easy operation and wide chemical compatibility

◆ Gamma sterilization and bubble point test supported

◆ 8 Optional interfaces, perfect line matching

◆ Compact design, space-saving installation

Designed for precise filtration of low-flow liquids and gases, this K45 miniature capsule filter is crafted from flexible polypropylene with thermal fusion bonding, ensuring stable and contaminant-free performance for critical micro-filtration processes. Its compact structure features 8 optional connection types and a wide selection of membrane materials & pore sizes while low internal residue design boosts filtration purity greatly. Safe to use and easy to operate, it supports gamma sterilization and bubble point integrity testing, minimizing operational hassle and serving as a dependable solution for your small-scale low-flow purification needs.

    Specifications

    Materials Of Construction Filter Media: Selection According to Demand
    Support Layer: Polypropylene
    Micron Rating: 0.10-100 um
    Outer Cage, End caps: Polypropylene
    Seal Method: Thermal Bonded, No Adhesives
    O-rings/gaskets:
      Silicone, Nitrile, EPDM, Viton, Teflon, etc
      Cartridge Dimensions Outer Diameter 45mm
      Length(based on DOE end caps) 2"
      Filtration Area(m2)
      150~230cm2
      Operating conditions Normal Operating Temperature: Up to 80℃
      Max.Operating Temperature.: 80℃  at 2.0 bar
      Max. Operating Pressure 5.0 bar / 25 ℃
      Normal Flow direction: 0.42 Mpa / 25℃ (77℉)
      Steam Sterilization: Autoclave Sterilization for 20 Min/120℃, 10 times

      Order Information

      PRODUCT FILTER MEDIA MICRON END CAP O-Ring PACKING How to Order? -Example
      TK S-PES
      N-NYLON66
      V-PVDF
      F-PTFE
      P-PP
      G-GF
      010-0.1um
      020-0.2um
      045-0.45um
      065-0.65um
      100-1.0um
      300-3.0um
      500-5.0um
      1000-10.0um
      2000-20.0um
      4000-40.0um
      1H-1/8" Hose Barb
      2H-1/4" Hose Barb
      2HF-1/4~3/8" Stepped Hose Barb
      MT-1/2" Tri Clamp
      2NS-1/4" NPT
      1Q-1/8'' CPC
      2Q-1/4'' CPC
      LF-Luer Connection
      S-Silicone
      N-Nitrile
      E-Epdm
      V-Viton
      T-Teflon
      G-Gamma Radiation
      E-Ethylene Oxide Sterilization
      PP;Micron:0.1um; Length:2.5"
      END CAP: 1/4''Compression Joint; M10 Vent
      Selection Code is: JNSBPP010252CM10

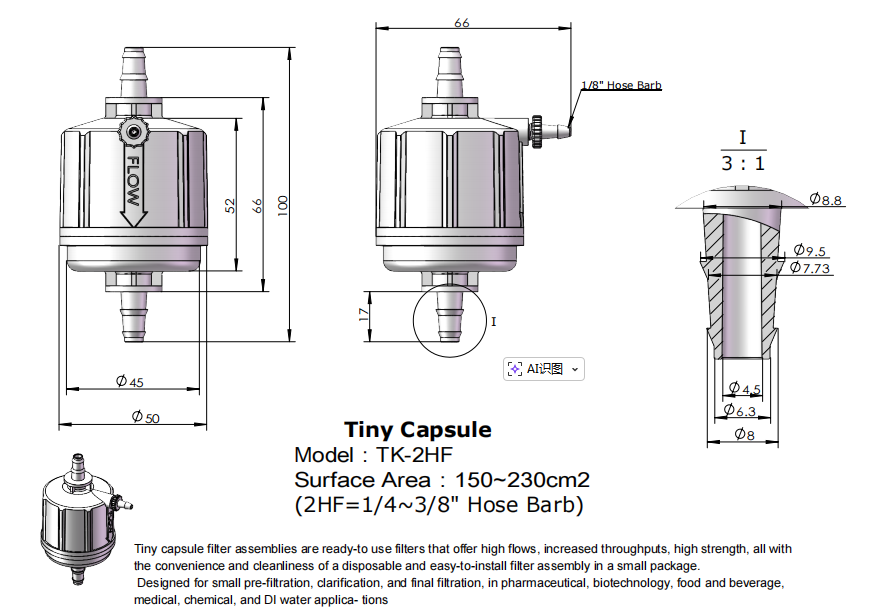

      Product Drawing

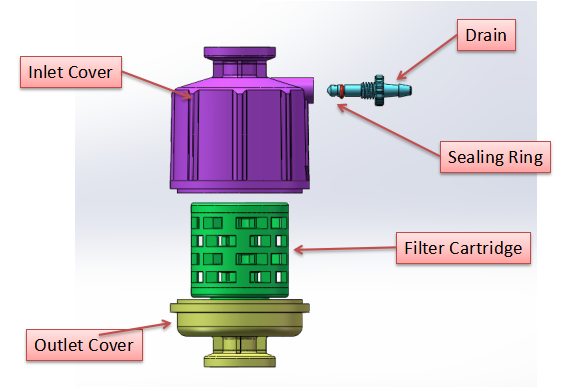

      K1K2

      Typical Applications

      • Gas sterilization filtration

      • Small - flow terminal filtration

      • Chemical reagent , corrosive liquid filtration

      • Culture liquid and medicine liquid filtration

      • Ultra pure water terminal filtration

      • Adhesive, ink, biological product filtration

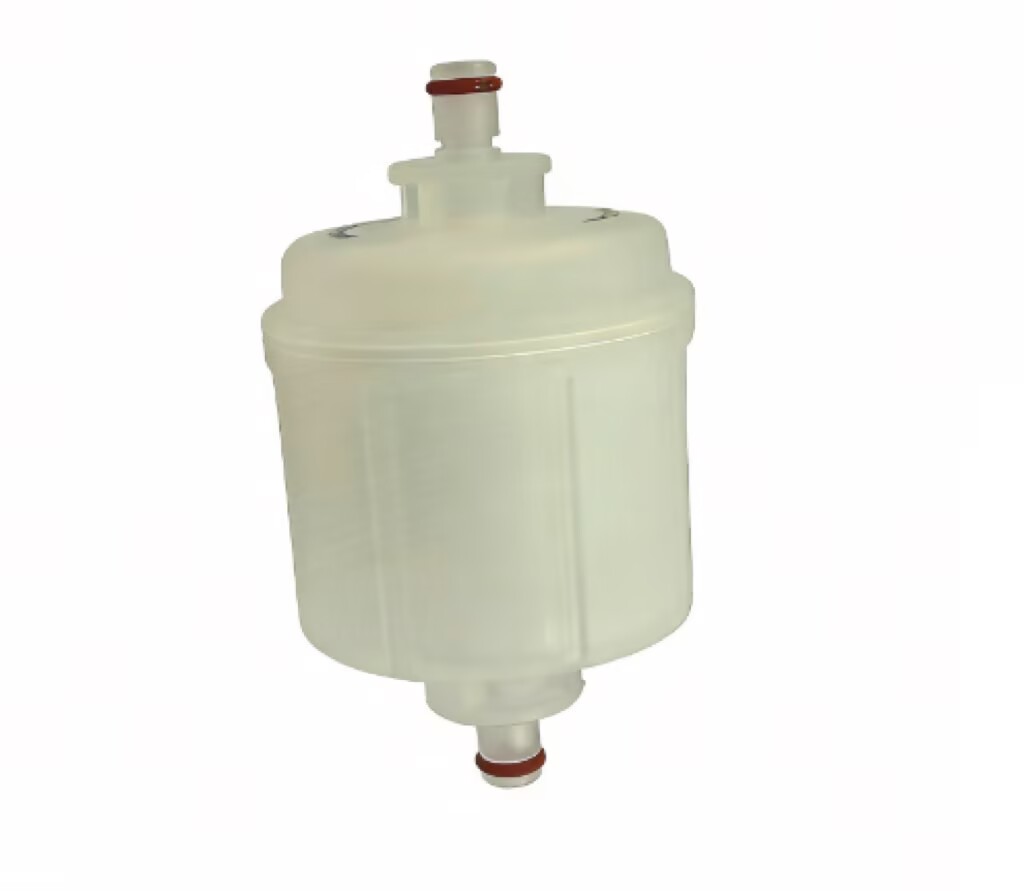

      K3
