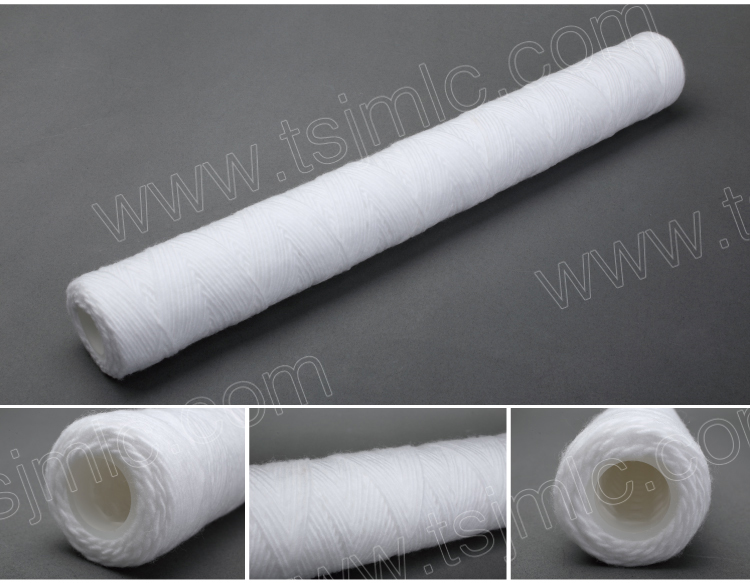

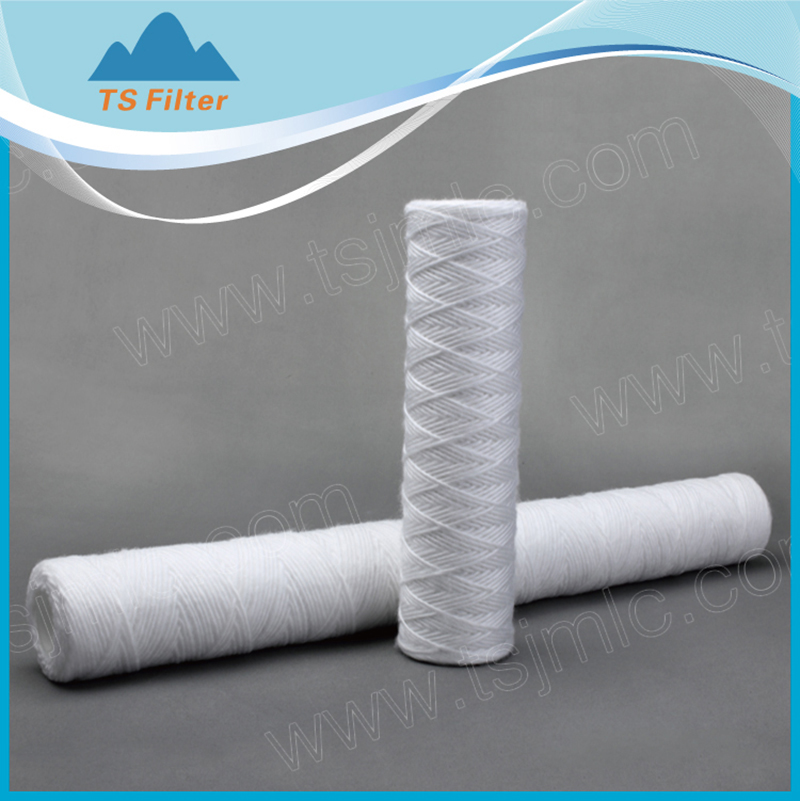

String Wound Filter Cartridges
Specifications
| Materials Of Construction | Filter Media: | Polypropylene/Bleached Cotton/Glass Fiber | ||||
| Micron Rating: | 1.0, 5.0, 10, 20 um | |||||
| Inner core: | Polypropylene/Stainless Steel | |||||
| O-rings/gaskets(Only for 226, 222 Ends): | Silicone, Nitrile, EPDM, Viton, etc | |||||
| Filtration Efficiency: | ≥80% | |||||
| Cartridge Dimensions | Outer Diameter: | 63mm(2.5"), 114mm(4.5") | ||||
| Inner Diameter: | 28mm(1.1") | |||||
| Length(based on Cut Ends): | 10"- 254mm, 20"- 508mm, 30"- 762 mm, 40" - 1016mm | |||||
| Filtration Area(m2): | 0.4 m2 per 10'' | |||||
| Operating conditions | Max.Operating Temperature.: | |||||
| Polypropylene: | 80℃ (176℉) at △P≤1.0 bar (14psi) | |||||
| Bleached Cotton: | 150 ℃(300℉) at △P≤1.0 bar (14psi) | |||||
| Max. Differential Pressure | ||||||
| Polypropylene: | 4.0 bar(58psi) at 25℃ (77℉) | |||||
| Bleached Cotton: | 5.0 bar(72psi) at 25℃ (77℉) | |||||
| PH Value compatibility: | 1-13 | |||||
| Sterilization: | Not recommended | |||||
Order Information
| PRODUCT | MICRON | OUTER DIA. | ADAPTER | LENGTH | CORE MATERIAL | O-RING / GASKET | |
| PSS- PP wound CSS- Cotton Wound GSS- Glass Fiber |
100-1um 500-5um 1000-10um 2000-20um |
D63-63mm D114-114mm * Outer Dia.of Glass Fiber wound is only 63mm(2.5") |
AA- CUT ENDS (NIL) BN-222/ FIN CN-226/ FIN |
10-10" 20-20" 30-30" 40-40" Others-XX |
P-PP | S-silicone; N-nitrile | |
| S-SUS | E-epdm ; V- viton | ||||||
| How to Order?- Example PP Wound; Micron: 1um; Outer Dia: 60mm; Adapter: NIL; Length: 10", PP core Selection Code is: PSS100D63AA10P |
|||||||

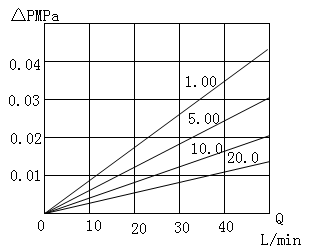

Table: Typical water flow rate (10")
Typical Applications
• Prefiltration for pure water system;
• Prefiltration for pharmaceutical and chemical solution
• Process and waste water prefiltration in electronics industry
• Wine, beer, mineral water, pure water, beverage filtration
