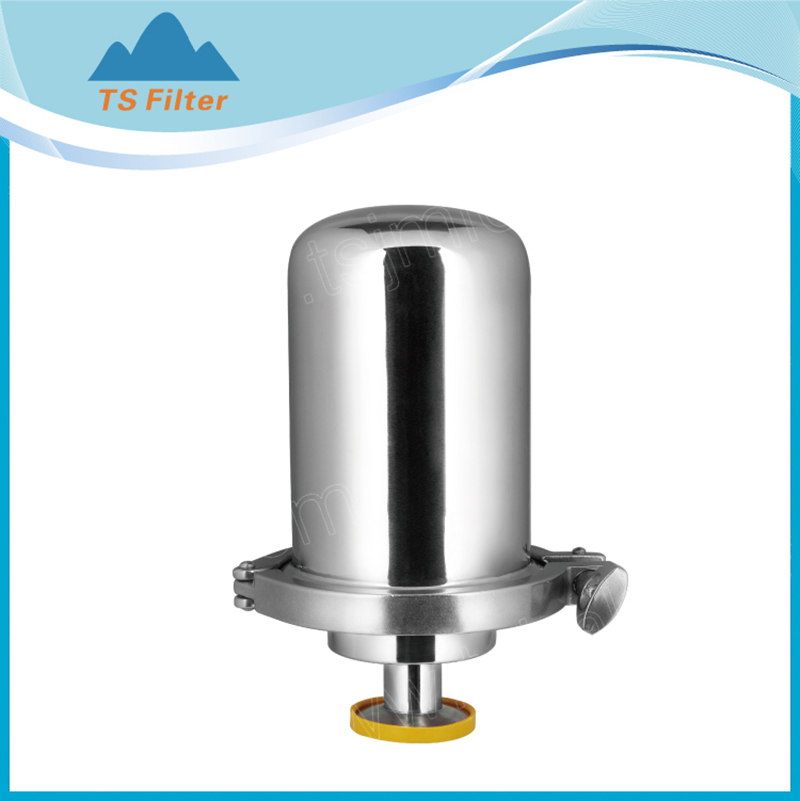

Stainless Steel Vent Filter Housing and Breather

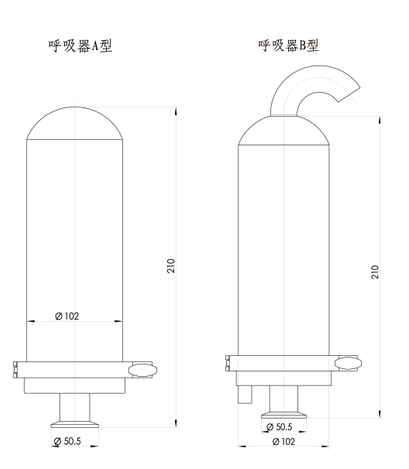

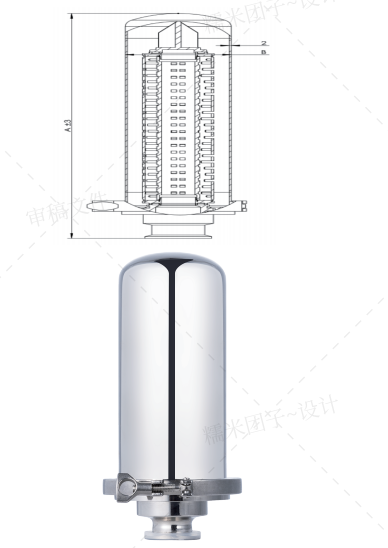

5" vent housing drawing
Specifications
| Cartridges | Body Closure | Dimensions(mm) | |||||
| Nos. | Length | d (outlet/inlet) | D | B | H1 | H | |
| 1 | 5" | Ferrule clamp | 1inch | 102 | 180 | 120 | 570 |
| 10" | 690 | ||||||
| 20" | 940 | ||||||
| 30" | 1190 | ||||||
| 3 | 10" | Stud bolts | 1 1/4 inch | 184 | 240 | 180 | 720 |
| 20" | 980 | ||||||
| 30" | 1210 | ||||||
| 5 | 10" | Stud bolts | 1.5 inch | 219 | 280 | 200 | 130 |
| 20" | 990 | ||||||
| 30" | 1220 | ||||||
| 40" | 1460 | ||||||
| 7 | 20" | Stud bolts | 1 3/4 inch | 273 | 420 | 210 | 1060 |
| 30" | 1290 | ||||||
| 40" | 1530 | ||||||
| 9 | 20" | Stud bolts | 2 inch | 325 | 460 | 210 | 1080 |
| 30" | 1310 | ||||||
| 40" | 1550 | ||||||
| 12 | 20" | Stud bolts | 2 1/4 inch | 350 | 480 | 240 | 1150 |
| 30" | 1380 | ||||||
| 40" | 1620 | ||||||
| 18 | 20" | Stud bolts | 3 inch | 400 | 500 | 260 | 1160 |
| 30" | 1390 | ||||||
| 40" | 1630 | ||||||
| 21 | 20" | Stud bolts | 3.5 inch | 450 | 600 | 280 | 1190 |
| 30" | 1420 | ||||||
| 40" | 1660 | ||||||
| …… | |||||||
Order Information
| PRODUCT | MATERIAL | CARTRIDGE NOS. | ADAPTER | LENGTH | How to Order?- Example | |||||
| BJH | 304-SUS304 316-SUS316L |
01 - Single 03 - Three 05 - Five 07 - Seven 09 - Nine 10 - Ten 12 - Twelve 18 - Eighteen X - More |
AA-DOE CN-226/FIN BN-222/FIN AF-220/FLAT SEAL BF-222/FLAT SEAL CF-226/FLAT SEAL |
10" - 10 20" - 20 30" - 30 40" - 40 5" - 05 Other - XX |
Material: SUS304 Cartridge Nos.: Single Cartridge adapter:DOE Cartridge length: 10" Selection Code is: BJH30401AA10 |
|||||
