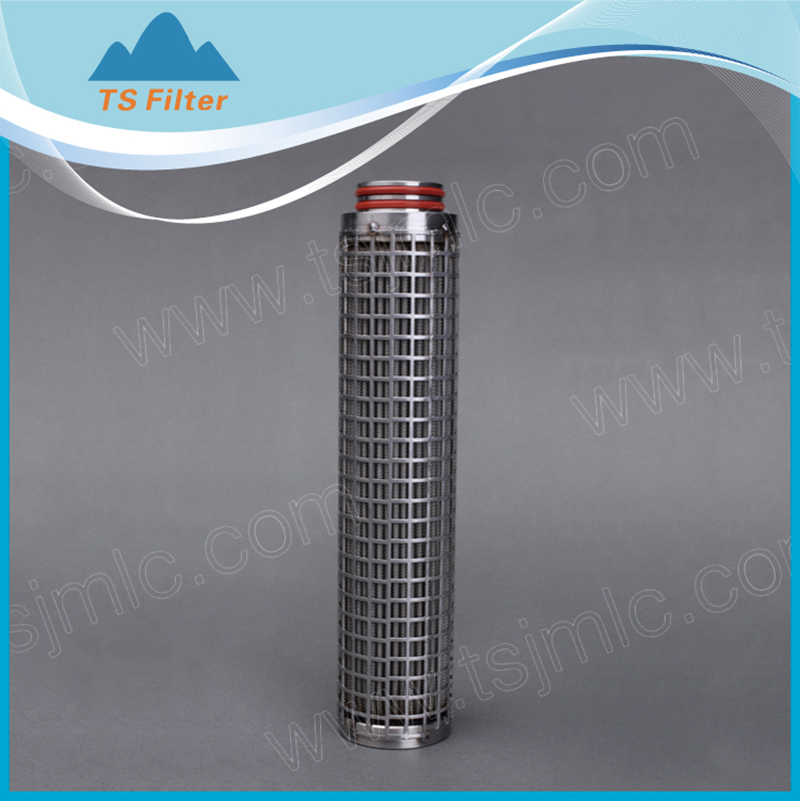

Stainless Steel Pleated Filter Cartridge
Features and Benefits
◆Extremely robust construction, high mechanical strength
◆Ideal for aggressive solvents, viscous and hot solutions
◆Backwashable and cleaned by chemical solvent, hot water, steam, long service life
◆Pleated Cartridge provides higher filtration area
◆Removal rating from 5 to 100 microns
Specifications
| Materials Of Construction | Filter Media: | SUS316L Mesh Pleated | ||||
| Micron Rating: | 0.45-100 um | |||||
| Porosity: | 60%-65% | |||||
| O-rings/gaskets(only for 222, 226, DOE ends): | Silicone, Nitrile, EPDM, Viton, Teflon, etc | |||||
| Filtratioin Efficiency: | 95%-99% | |||||
| Cartridge Dimensions | Outer Diameter | 60mm/80mm | ||||
| Length(based on Cut Ends) | 10"- 250mm, 20"- 500mm, 30"-750mm, 40"- 1000mm | |||||
| Operating conditions | Max.Operating Temperature.: | 300℃ (572℉) | ||||
| Max. Differential Pressure: | 6.0 bar | |||||
| PH Value compatibility: | 1-14 | |||||
Order Information
| PRODUCT | MICRON | Outer Dia. | ADAPTER | LENGTH | O-RING / GASKET |
| STP | 100-1um 300-3um 500-5um 1000-10um 2000-20um |
D60-60mm D80-80mm |
NIL- Cut Ends (Cylinder) AA- DOE ( With Gaskets) BF-222/ Seal CF-226/ Seal YBP- 1" BSP Threaded HBP- 1/2" BSP Threaded |
10-10" 20-20" 30-30" 40-40" 05-5" Other-XX |
S-silicone; N-nitrile E-epdm; T-teflon (Encaptulated) V-vition |
| How to Order?- Example STP; Micron:5um; Outer Dia.:60mm; Length:10"; Adapter:1"BSP; O-rings: Silicone Selection Code is: STP500D60YBP10S |
Typical Applications
• Steam filtration;
• Prefiltration and decarbonization of high viscosity liquid filtration;
• Removing impuriteis ofliquids in Petrochemical industry;
• Agressive solvents filtration;
• Highly corrosive liquid and gas purification;
• Liquids or gases filtration in high temperature and pressure;

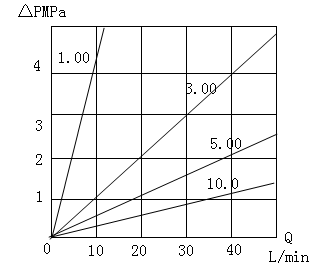

Table: Typical water flow rate (10")
