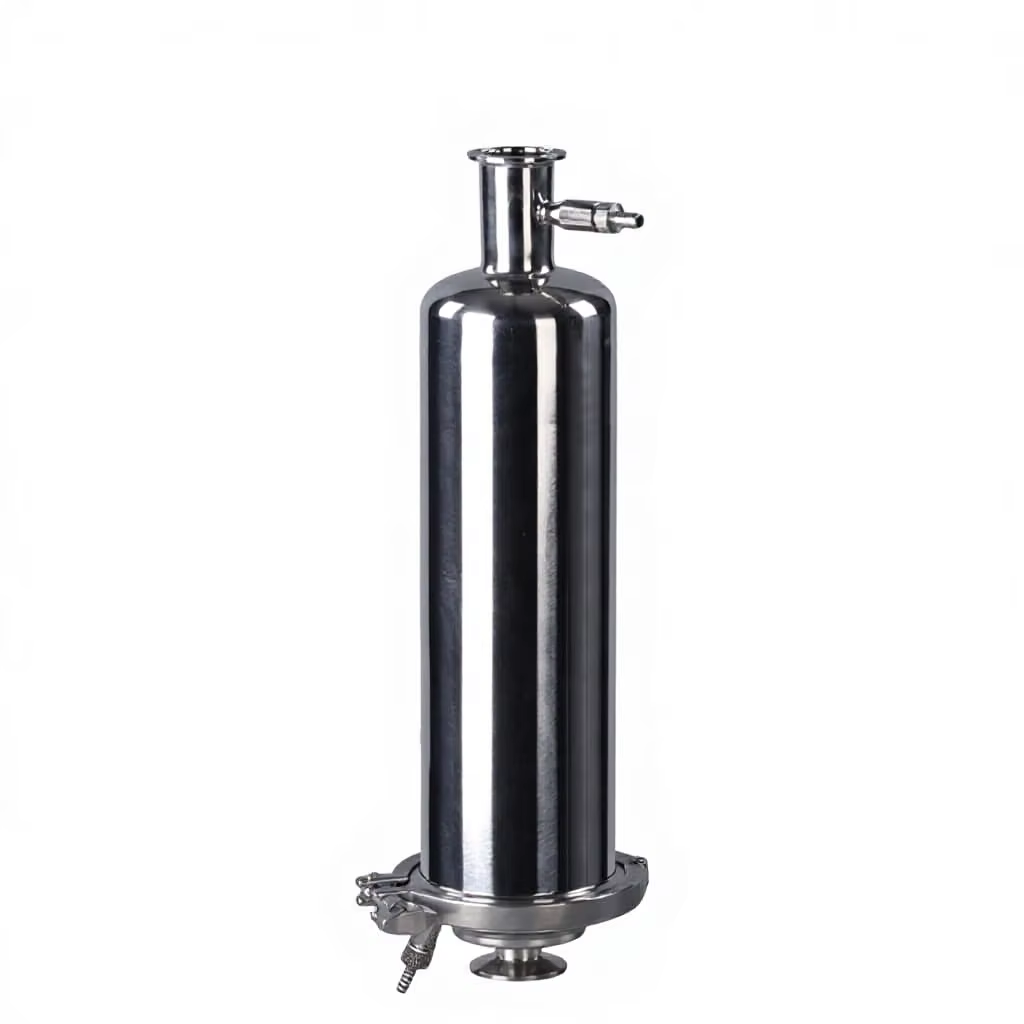

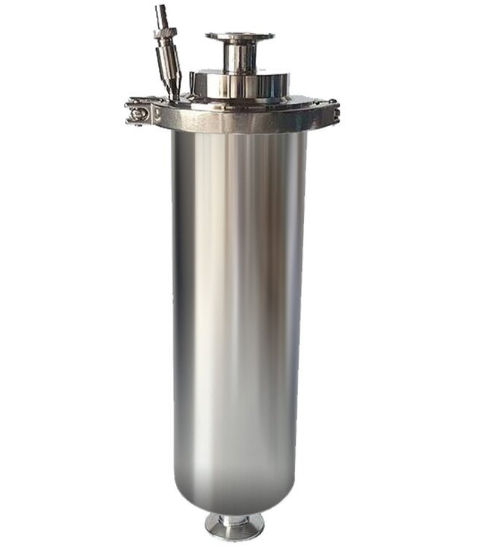

Stainless Steel Pipeline Filter Housing
Technical Specification
| Designed Pressure: | 0.8 Mpa |
| Max.operating pressure: | 0.6 Mpa |
| Max.Temperature: | 130 ℃ |
| Surface finish: | Polishing Type: Mirror Polished/Interior Electro Polished Roughness of Polishing: Interior 0.3μm/ Exterior 0.4μm |
Specification

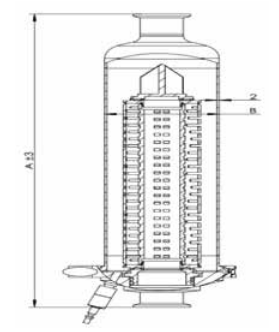

| Type | Length | A Total Height(mm) | B Cylinder Diameter (mm) |
| 1 Core | 5" | 320 | 101.6 |
| 10" | 420 | ||
| 20" | 700 | ||
| 30" | 930 | ||
| 3 Cores | 10" | 550 | 168 |
Order Information
| PRODUCT | MATERIAL | CARTRIDGE NOS. | ADAPTER | LENGTH | INLET/OUTLET | O-RING | SURFACE FINISH | How to Order?- Example | |||||
| PSFC | 304-SUS304 316-SUS316L C-C-276 T-TA2 |
01 - Single 03 - Three |
AA-DOE CN-226/FIN BN-222/FIN |
10" - 10 20" - 20 30" - 30 5" - 05 Other - XX |
K25(Tri Clamp DN25) K38(Tri Clamp DN32) F25(Flange DN25) F40(Flange DN25) Other - XX |
S-Silicone V-Viton E-EPDM T-Teflon |
M-Mirror Polished E-Electro Polished |
Material: SUS304 Cartridge Nos.: Single Cartridge adapter:226/FIN Cartridge length: 10" Inlet/Outlet: Tri Clamp DN25 Surface Finish: Mirror Polished O-RING: Silicone Selection Code is: PSFC3040110K25SM |
|||||
