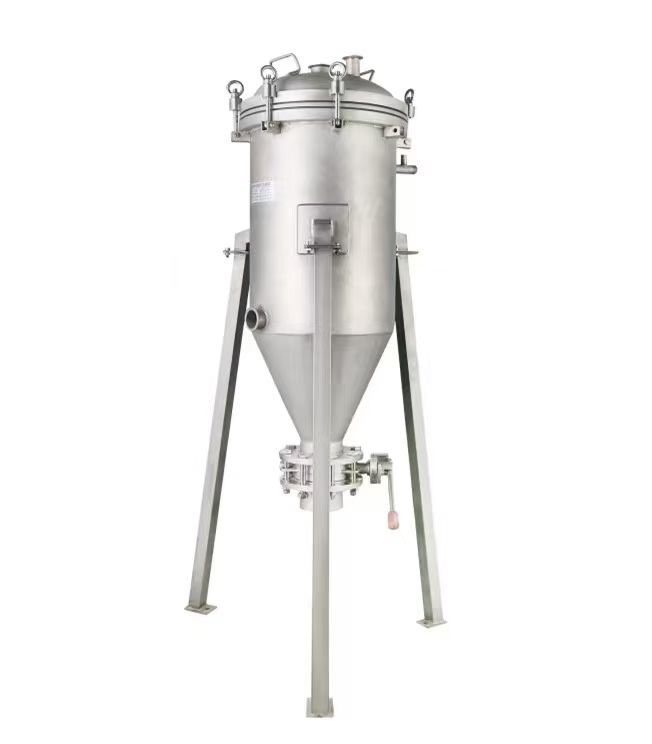

Stainless Steel Microporous Filter Housing
Materials
| Housing | 304/316L |
| Vent / Drain | 304/ 316L |
| Duct | 304 /316L |
| Holder | 304 |
Surface Finish
| Polishing Type | Mirror Polished / Sand Blasting |
| Roughness of Polishing | Interior 0.6 um |
Connections
| Cage Connection | Rings |
| Inlet/Outlet | Flange |
| Vent/Drain/Manometer | Flange |
Specifications
Operating Conditions
| Max.Operating Temperature | -20~120℃ |
| Designed Pressure | 1.2 Mpa |
| Max.Pressure Resistance | 0.4Mpa |

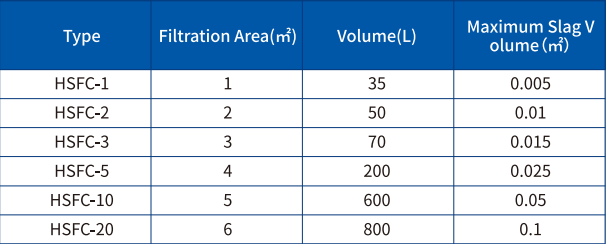

Order Information
| PRODUCT | FILTARTION AREA(m2) | CONNECTION | HOUSING MATERIAL | CAGE CONNECTION | INLET/OUTLET CONNECTION | SLAG OUTLET(mm) | O-RING/GASKET |
| HSFC | 1 | M20(20mm) | S(304) | D(RING) | F50(Flange DN50) | 50 | S(Silicone) |
| 2 | M25(25mm) | L(316L) | F80 | 80 | V(Viton) | ||
| 3 | M30(30mm) | A(Antiseptic) | F125 | 200 | T(Teflon) | ||
| 4 | Lined with PTFE | F150 | 200 | ||||
| 5 | Spray PTFE | F200 | 250 | ||||
| 6 | 250 | ||||||
