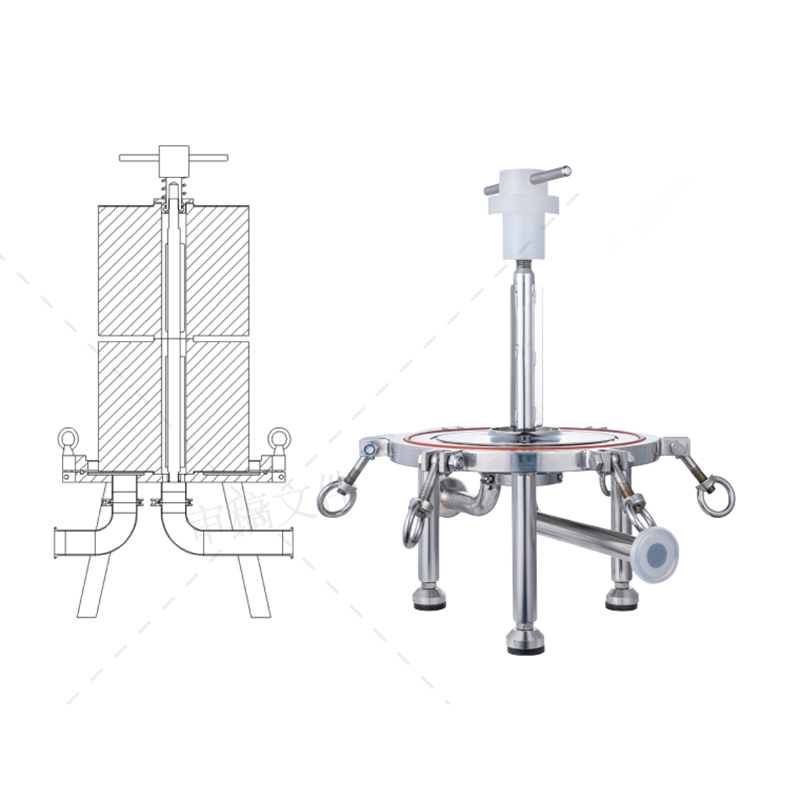

Stainless Steel Membrane Stack Filter Housing
Materials
| Housing | 304/316L |
| Vent/Drain | 304/316L |
| Clamp | 304 |
| Swing Bolts | 304 |
| Standing Leg | 304 |
Surface Finish
| Polishing Type | Mirror Polished / Interior Electro Polished |
| Roughness of Polishing | Interior Ra 0.3 / Exterior Ra 0.4 |
Connections
| Cage | Flange (Eye Bolt) |
| Inlet/Outlet | Flange /Tri Clamp |
| Vent | Quick Release Valve |
| Drain | 1/2", 1/4" Valve |
| Manometer | Flange /Tri Clamp |
Specifications
| Type | Layers | Total Height (mm) | Inlet and Outlet Distance (mm) | Cylinder Diameter(mm) | Inlet and Outlet Height Above Ground (mm) |
| A | 1 layer | 810 | 690 | 450 | 150 |
| B | 2 layers | 1080 | 690 | 450 | 200 |
| C | 3 layers | 1450 | 690 | 450 | 200 |
| D | 4 layers | 1710 | 690 | 450 | 250 |
Operating Conditions
| Max.Operating Temperature | 130℃ |
| Designed Pressure | 0.8Mpa |
| Max.Pressure Resistance | 0.6Mpa |
Order Information
| PRODUCT | CARTRIDGE SPECIFICATIONS | MATERIAL | CAGE CONNECTION | INLET/OUTLET CONNECTION | O-RING / GASKET | SURFACE FINISH |
| PSFH | 1216(12 inch 16 layers) | S(304) | D(Ring) | K38(Tri Clamp DN32) | S(Silicone) | M(Mirror Polished) |
| 1232 | L(316L) | K50(Tri Clamp DN50) | V(Viton) | E(Electro Polished) | ||
| 1248 | E(EPDM) | |||||
| 1264 | T(Teflon) | |||||
| 1616(16 inch 16 layers) | ||||||
| 1632 | ||||||
| 1648 | ||||||
| 1664 |
