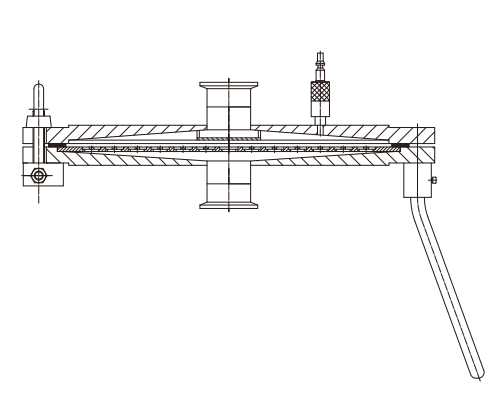

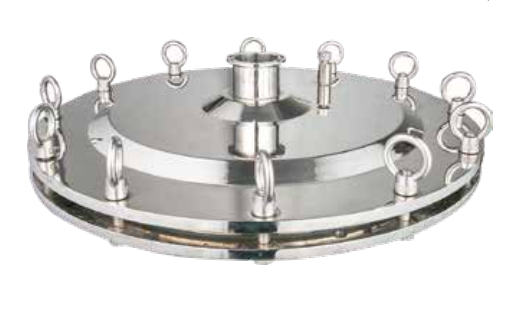

Stainless Steel Disc Membrane Filter Holder
Materials
| Housing | 304/316L |
| Diaphragm Deflector | 316 |
| Eye Bolt | 304 |
| Holder | 304 |
Surface Finish
| Polishing Type | Mirror Polished / Interior Electro Polished |
| Roughness of Polishing | Interior Ra 0.3 / Exterior Ra 0.6 |
Connections
| Cage Connection | Hanging Rings |
| Inlet/Outlet | Tri Clamp |
| Vent | Quick Release Valve |
Specifications
Operating Conditions
| Max.Operating Temperature | 130℃ |
| Designed Pressure | 1.0 Mpa |
| Max.Pressure Resistance | 0.8Mpa |
Order Information
| PRODUCT | TYPE | HOUSING MATERIAL | CAGE CONNECTION | INLET/OUTLET CONNECTION | O-RING / GASKET | SURFACE FINISH |
| PSFG | 90 | S(304) | D(Ring) | K19(Tri Clamp DN19) | S(Silicone) | M(Mirror Polished) |
| 142 | L(316L) | K25(Tri Clamp DN25) | V(Viton) | E(Electro Polished) | ||
| 150 | A(Antiseptic) | K32 | E(EPDM) | |||
| 193 | Spray PTFE | K38 | T(Teflon) | |||
| 293 | Lined with PTFE | K51 | ||||
| 300 | ||||||
