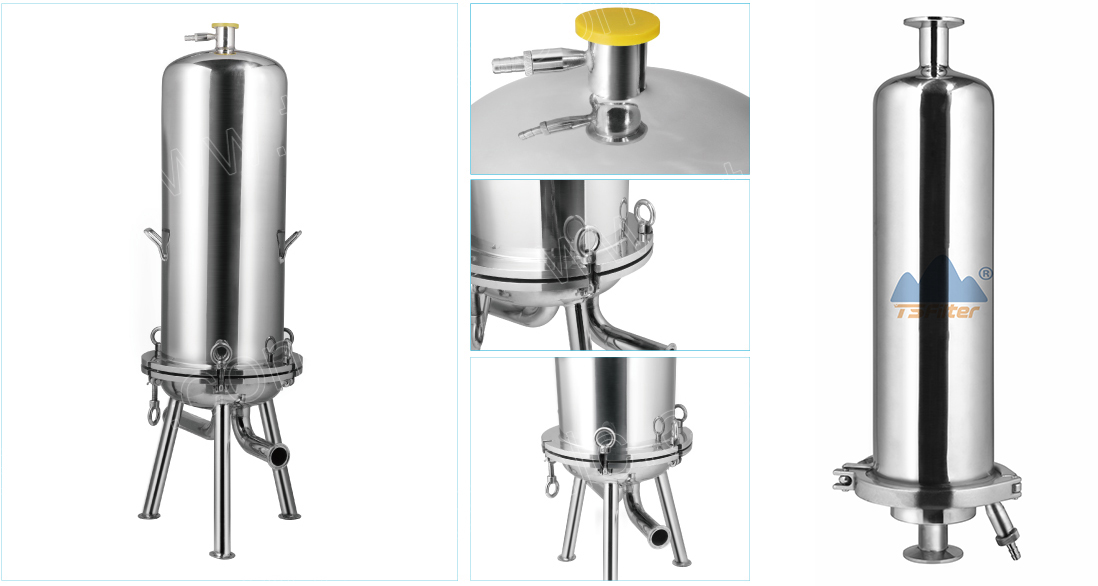

Stainless Steel Cartridge Type Filter Housing for Liquid Filtration

◆ Mirror Surface Finish Complete Stainless Steel Construction

Reduces bacterial/particlead hesion and no dead space

Excellent corrosion resistance

◆ Easy To Install Design With Sanitary Connections,Easy to Clean

Available in tri-clamp,flanged and thread connections

Requires minimum floor space and quickly dismantle for easy cleaning

◆ Housings Accommodate From One(1)to Many 10",20",30"or40" Cartridges

Suitable for small to large batch sizes and flow rates

High pressure &high temperature designs are available

◆ Clean-in-Place(CIP)/Steam-in-Place(SIP)Design

product details

product description

Specifications

Length:	5 inch, 10 inch, 20 inch or 30 inch
Inlet/outlet connection:	Tri-Clamp or Flange or As customer requested
Flow rate(△P=1kpa):	3L - 500L/min or more
Type:	Single Type or Multiple Type
*△P: Design negative pressure of the tank

PRODUCT	CARTRIDGE NOS.	LENGTH	MATERIAL	ADAPTER	How to Order?- Example
BJH	01 - Single	5" - 05 10" - 10 20" - 20 30" - 30	304-SUS304	CN - 226/FIN BN - 222/FIN CF- 226/SEAL BF- 222/FLAT	Cartridge Nos.: Single, Length: 10" Material: SUS316, Adapter: 226/Fin Selection Code is: BJF0110316CN
	03-Three		316-SUS316L
	05-Five
	And So on

• WaterTreatment, RO system

• Pharmaceuticals, API, Biologics

• Food and Beverage, Wine, Beer, Dairy, Mineral Water

• Paints, Inks Plating Solutions

• Process Chemicals and Electronics Industry

• Liquid prefiltration, particularly suitable for large volume or high viscosity liquids
