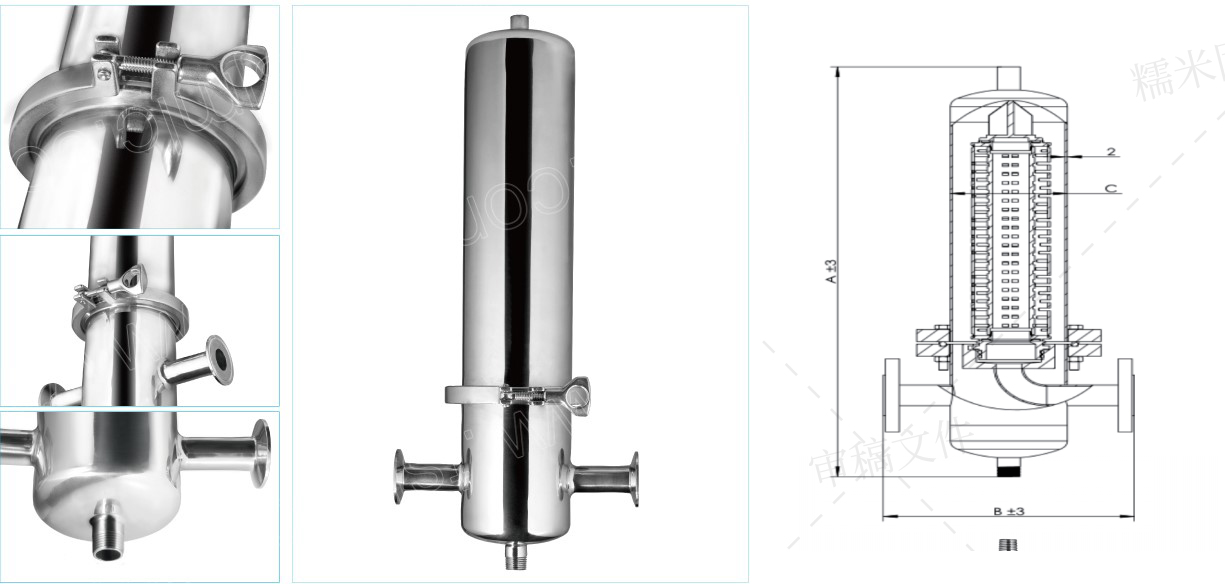

Stainless Steel Cartridge Type Filter Housing for Air and Steam Filtration
Technical Specification
| Designed Pressure: | 16 bar with in 30mins. |
| Max.operating pressure: | 8.0bar |
| Max.Temperature: | 150 ℃ |
| Surface finish: | Machine/Electro polished, Ra≤0.2um |
Specification
| Cartridges | Body Closure | d | Dimensions(mm) | ||||
| Nos. | Length | Outlet/ Inlet type | D | B | H | ||
| 1 | 5" | Ferrule clamp, Flange | 3/4 inch | Tri Clamp or Flange | 102 | 180 | 340 |
| 10" | 1 inch | 450 | |||||
| 20" | 1 inch | 690 | |||||
| 30" | 1 1/4 inch | 940 | |||||
| 3 | 10" | Flange, Stud bolts | 2 inch | Flange | 184 | 325 | 755 |
| 20" | 2.5 inch | 995 | |||||
| 5 | 10" | 3 inch | Flange | 219 | 380 | 880 | |
| 20" | 4 inch | 1180 | |||||
Order Information
| PRODUCT | MATERIAL | CARTRIDGE NOS. | ADAPTER | LENGTH | How to Order?- Example | |||||
| BJQ | 304-SUS304 316-SUS316L |
01 - Single 03 - Three 05 - Five |
AA-DOE CN-226/FIN BN-222/FIN AF-220/FLAT SEAL BF-222/FLAT SEAL CF-226/FLAT SEAL |
10" - 10 20" - 20 30" - 30 5" - 05 Other - XX |
Material: SUS304 Cartridge Nos.: Single Cartridge adapter:226/FIN Cartridge length: 10" Selection Code is: BJQ30401CN10 |
|||||
