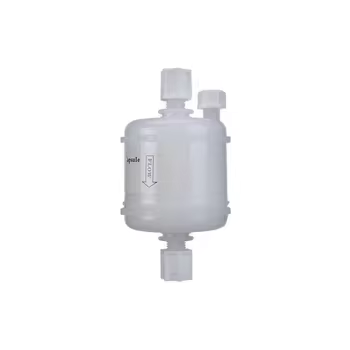

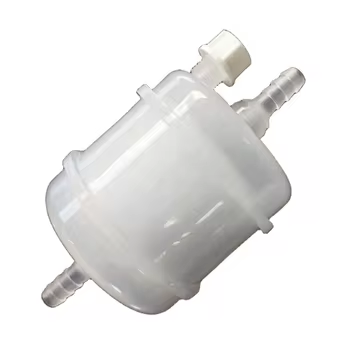

Professional Grade JNM Series K60 Capsule Filter

◆ High filtration accuracy and disposable filters

◆ Available with a wide range of connectors an dfilter medias for options to meet various filtration requirements

◆ Safe use, easy to operate and wide chemical compatibility

◆ 100% integrity test and flexible polypropylene shell

◆ Ideal for small batch prefiltration and final filtration of liquids or gas

◆ Rinsed with pure water, no fiber releasing

Designed for precise low-flow filtration scenarios, it adopts flexible polypropylene material and M‑shaped pleated structure with imported support media, ensuring stable and binder‑free performance for gentle processes.Its reliable fusion bonding construction offers a wide choice of membrane types and pore sizes while safe operation simplifies your handling greatly.Easy to install and user‑friendly in daily use, it ensures consistent filtration quality and serves as a reliable solution for your low‑flow liquid or gas purification needs.

product details

product description

Specifications

Materials Of Construction	Filter Media:	Selection According to Demand
	Support Layer:	Polypropylene/Polyester
	Micron Rating:	0.04-100 um

	Outer Cage, End caps:	Polypropylene
	Seal Method:	Thermal Bonded, No Adhesives
	O-rings/gaskets:	Silicone, Nitrile, EPDM, Viton, Teflon, etc
Cartridge Dimensions	Outer Diameter	69mm(2.75'')

	Length(based on DOE end caps)	1.5"
	Filtration Area(m2)	350-450 cm2
Operating conditions	Normal Operating Temperature:	Up to 65℃ (149℉)
	Max.Operating Temperature.:	65℃ (149℉) at △P≤0.1 Mpa (14.50psi)
	Max. Operating Pressure	0.55 Mpa / 25 ℃
	Normal Flow direction:	0.42 Mpa / 25℃ (77℉)


	Steam Sterilization:	Autoclave Sterilization for 30 Min/Time

Order Information

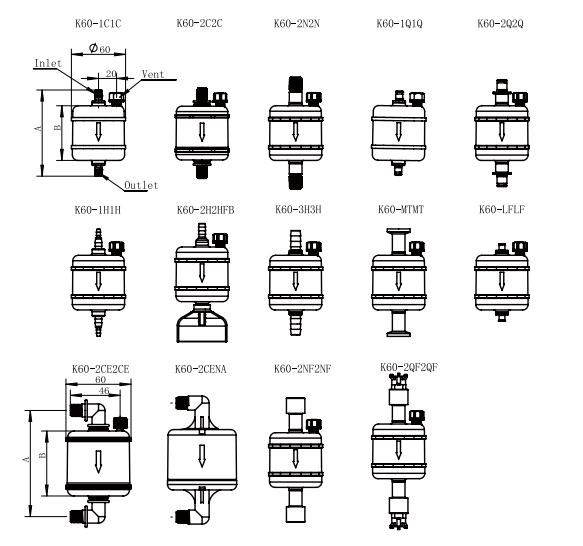

PRODUCT	FILTER MEDIA	MICRON	LENGTH	END CAP	VENT/DRAIN	How to Order? -Example
JNM	PP-PP PN-NYLON66 PS-PES PF-PTFE PV-PVDF	010-0.1um 020-0.2um 045-0.45um 065-0.65um 100-1.0um 300-3.0um 500-5.0um 1000-10.0um 2000-20.0um	15-1.5''	2C-1/4" Compression Joint 2CE-1/4" Compression Bent 2N-1/4" NPT Connection 1H-1/8" Hose Barb 2H-1/4" Hose Barb 3H-3/8" Hose Barb 5H-5/8" Hose Barb LF-Luer Female Connection	M10-M10 Blank Cap LF-Luer Connection NA-No Connection	PP;Micron:0.1um; Length:1.5" END CAP: 1/4''NPT; M10 Vent Selection Code is: JNMPP010152NM10

Table: Typical water flow rate (10")

Typical Applications

• Gas sterilization filtration

• Chemical reagent , corrosive liquid filtration

• Culture liquid and medicine liquid filtration

• Ultra pure water terminal filtration

• Adhesive, ink, biological product filtration
