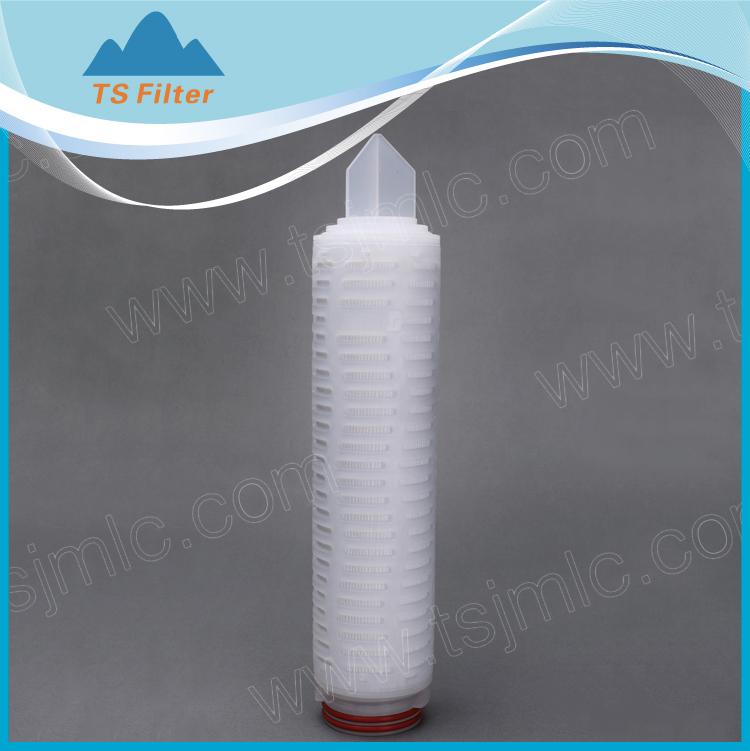

Polyethersulfone (PES) membrane Pleated Filter Cartridge
Specifications
| Materials Of Construction | Filter Media: | Asymmetric PES Membrane | ||||
| Support Layers: | Polypropylene | |||||
| Micron Rating: | 0.04, 0.1, 0.2, 0.45, 0.65, 0.85, 1.2 um | |||||
| Inner core: | Reinforced Polypropylene /Stainless Steel | |||||
| Outer Cage, End caps: | Reinforced Polypropylene /Insert Stainless Steel | |||||
| Seal Method: | Thermal Bonded, No Adhesives | |||||
| O-rings/gaskets: | Silicone, Nitrile, EPDM, Viton, Teflon, etc | |||||
| Cartridge Dimensions | Outer Diameter | 69mm(2.75'') | ||||
| Inner Diameter | 33mm(1.30'') | |||||
| Length(based on DOE end caps) | 10"- 254mm, 20"- 508mm, 30"-762 mm, 40"- 1016mm | |||||
| Filtration Area(m2) | 0.65 m2 per 10'' | |||||
| Operating conditions | Normal Operating Temperature: | Up to 60℃ (140℉) | ||||
| Max.Operating Temperature.: | 85℃ (185℉) at △P≤1.0 bar (14psi) | |||||
| Max. Differential Pressure | △P≤ 4.8 bar (69.6 psi) at 25℃ (77℉) | |||||
| Normal Flow direction: | 4.2 bar (60 psi) at 25℃ (77℉) | |||||
| Reverse flow direction: | 2.1 bar (30psi) at 25℃ (77℉). | |||||
| PH Value compatibility: | 2-13 | |||||
| Sterilization: |
Steam Sterilization for 30 minutes at 121±2 ℃,
Cumulative Time:8 hours;
|
|||||
| Cartridge Safety | Endotoxin: | ＜0.25 EU/ml | ||||
| Extractables: | 0.03g / 10" | |||||
Order Information
| GRADE | PRODUCT | MICRON | ADAPTER | LENGTH | O-RING / GASKET | |
|
H - Chemical
E - ELECTRONIC
P - Phamar
F - Food
|
IPS |
004-0.04um
010-0.1um
020-0.2um
045-0.45um
065-0.65um
|
AA- DOE CN-226/FIN BN-222/FIN BF-222/ FLAT SEAL CF-226/FLAT SEAL EN-222 three locking ears /Fin |
10-10" 20-20" 30-30" 40-40" 05-5" Other-XX |
S-silicone; N-nitrile
E-epdm ; T-teflon (encaptulated)
V-viton
How to Order?- Example
Pharmaceutical grade; Micron:0.45um; Length:10" ADAPTER: DOE; Gakset: Silicone. Selection Code is: PIPS045AA10S
|
|

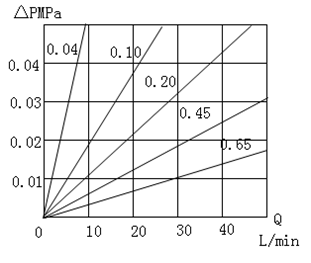

Table: Typical water flow rate (10")
Typical Applications
l Beverage Industry
1. Sterile filtration of mineral water, spring water, and purified drinking water
2. Clarification and sterile filtration of wine, beer, cider, and fruit juices
3. Filtration of soft drinks, sports drinks, and bottled teas (removal of microbes, particles)
l Electronics Industry
1. Ultra-pure water (UPW) filtration for semiconductor manufacturing
2. Process water filtration for disk drives, display panels (LCD/OLED), and solar cell production
3. Filtration of electronic chemicals (photoresists, developers, etchants) and rinse water
l Pharmaceutical & Biotech Industry
1. Sterile filtration of Active Pharmaceutical Ingredients (APIs), excipients, and finished dosage forms (injectables, oral solutions)
2. Filtration of biologics, monoclonal antibodies (mAbs), vaccines, and cell culture media
3. Serum, plasma, and buffer filtration; virus removal pre-filtration
4. Aseptic air and gas filtration in cleanrooms and bioreactors
l Fine Chemicals & Water Treatment
1. Filtration of specialty chemicals, catalysts, and intermediates
2. Pretreatment filtration for reverse osmosis (RO) and nanofiltration (NF) systems
3. Wastewater treatment and recycling processes (particle removal, microbe control)
4. High-purity water filtration for laboratory, medical, and industrial use
l Additional Applications
1. Filtration of cosmetics, personal care products (lotions, creams, sterile formulations)
2. Laboratory reagent filtration and analytical instrument protection
3. Medical device rinse water filtration (e.g., endoscopes, surgical tools)
