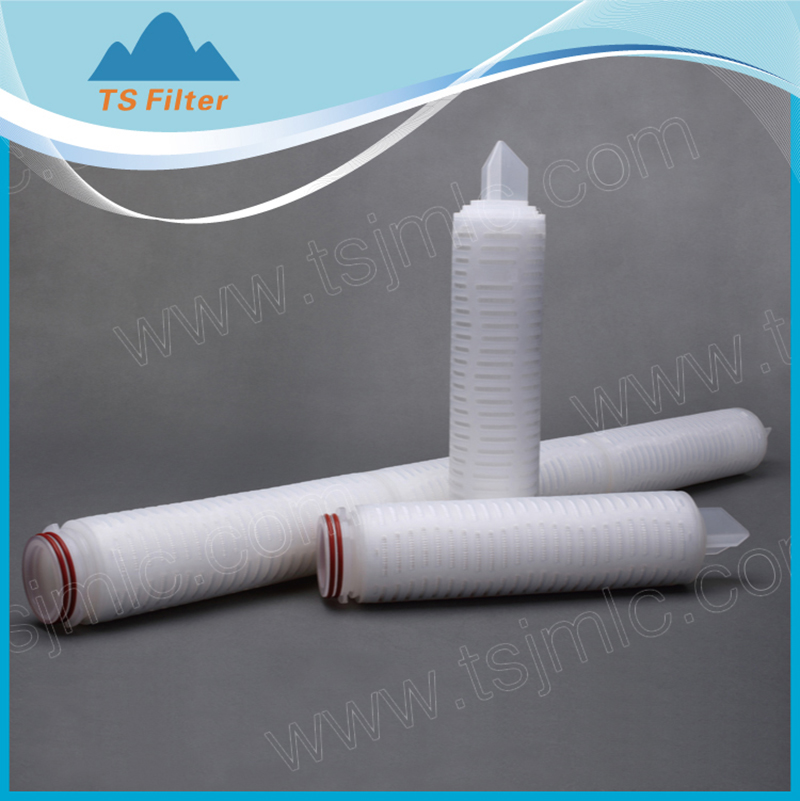

Polyamide (Nylon) Membrane Pleated Filter Cartridge
Product Description
This naturally hydrophilic Nylon 6,6 pleated filter cartridge is tailored for high-efficiency liquid sterile filtration, featuring better compatibility with organic solvents and alkaline liquids than hydrophilic PTFE & PVDF alternatives. Its high flow rate and cost-effective performance balance premium filtration quality and budget control, ideal for large-volume filtration scenarios. With high non-specific adsorption and ultra-low extractables, it avoids contaminating target liquids and preserves ingredient purity, meeting strict standards of food & beverage, electronics and fine chemical industries. 100% integrity tested before delivery ensures zero leakage risk, while its durable structure supports stable long-term operation, serving as a reliable replacement for branded filters with higher cost performance.
Specifications
| Materials Of Construction | Filter Media: | Hydrophilic Nylon6,6 Membrane | ||||
| Support Layers: | Polypropylene | |||||
| Micron Rating: | 0.1, 0.2, 0.45, 0.65, 1.0, 3.0, 5.0um | |||||
| Inner core: | Reinforced Polypropylene | |||||
| Outer Cage, End caps: | Reinforced Polypropylene | |||||
| Seal Method: | Thermal Bonded, No Adhesives | |||||
| O-rings/gaskets: | Silicone, Nitrile, EPDM, Viton, Teflon, etc | |||||
| Cartridge Dimensions | Outer Diameter | 69mm(2.75'') | ||||
| Inner Diameter | 33mm(1.30'') | |||||
| Length(based on DOE end caps) | 10"- 254mm, 20"- 508mm, 30"-762 mm, 40"- 1016mm | |||||
| Filtration Area(m2) | 0.65 m2 per 10'' | |||||
| Operating conditions | Normal Operating Temperature: | Up to 60℃ (140℉) | ||||
| Max.Operating Temperature.: | 80℃ (176℉) at △P≤1.0 bar (14psi) | |||||
| Max. Differential Pressure | ||||||
| Normal Flow direction: | 4.2 bar (60 psi) at 25℃ (77℉) | |||||
| Reverse flow direction: | 2.1 bar (30psi) at 25℃ (77℉). | |||||
| PH Value compatibility: | 6-14 | |||||
| Sterilization: | Steam Sterilization for 30 minutes at 135℃(275℉), cumulative Time: 3hours, autoclave 30 minutes (optional) | |||||
| Cartridge Safety | Endotoxin: | ＜0.25 EU/ml | ||||
| Extractables: | 0.03g / 10" | |||||
Order Information
| GRADE | PRODUCT | MICRON | ADAPTER | LENGTH | O-RING / GASKET | |
| P - Pharmaceutical E - ELECTRONIC F - Food&Beverage |
PNN | 010-0.1μm 020-0.2μm 045-0.45μm 100-1.00μm |
AA- DOE CN-226/FIN BN-222/FIN BF-222/ FLAT SEAL CF-226/FLAT SEAL EN-222 three locking ears /Fin |
10-10" 20-20" 30-30" 40-40" 05-5" Other-XX |
S-silicone; N-nitrile E-epdm; T-teflon (encaptulated) V-viton How to Order?- Example Pharmaceutical grade; Micron:0.45um; Length:10" ADAPTER: DOE; Gakset: Silicone. Selection Code is: PPNN045AA10S |
|
Table: Typical water flow rate (10")
Typical Applications
• Wine, beer, mineral water, pure water filtration;
• Solvents sterile filtration for analytical determination such as HPLC;
• Fine chemicals, especially ketone, ester, ether,
• Ultrapure water and disk, display, multi silicon process water in Electronics;
• Digital inks
