How Membrane Filter Working Ensures Clean Water
Introduction
When it comes to achieving truly pure water, understanding how membrane filter working mechanisms operate is essential. Whether you're managing an industrial facility, running a laboratory, or seeking reliable home water filtration, membrane filtration technology stands as one of the most effective methods available today.
At the heart of this technology lies the membrane filter cartridge—a precision-engineered component that physically separates contaminants from water at the microscopic level. In this comprehensive guide, we'll explore the science behind membrane filters, examine why polypropylene has become the industry-standard material, and reveal the performance data that makes this technology indispensable for clean water applications.
What Is a Membrane Filter Cartridge?
A membrane filter cartridge is a self-contained filtration unit featuring a thin, semi-permeable barrier (the membrane) that selectively allows water molecules to pass while blocking particles, bacteria, and other contaminants based on size exclusion.
Unlike depth filters that trap particles throughout their thickness, membrane filters capture contaminants primarily on the surface—providing consistent, predictable performance and defined pore ratings.
Key Components of Membrane Filter Cartridges
| Component | Function | Common Materials |
|---|---|---|
| Membrane Layer | Primary filtration barrier | Polypropylene (PP), PTFE, PVDF, PES |
| Support Structure | Mechanical strength | Polypropylene, Polyester |
| End Caps | Cartridge sealing | Polypropylene, Polycarbonate |
| Core | Structural integrity | Polypropylene |
| Outer Cage | Membrane protection | Polypropylene mesh |
How Membrane Filtration Works: The Science Explained
The membrane filtration process operates on a remarkably straightforward principle: size exclusion. Water is forced through a membrane containing precisely sized pores—contaminants larger than these pores are physically blocked, while purified water passes through.
The Four Stages of Membrane Filtration
1. Pre-Treatment Incoming water may pass through sediment pre-filters (typically 5-25 micron) to remove large particles that could clog or damage the membrane.
2. Pressurization Water pressure (typically 10-60 PSI for microfiltration; up to 150+ PSI for reverse osmosis) drives the feed water toward the membrane surface.
3. Separation At the membrane barrier, the critical separation occurs:
- Water molecules pass through the defined pores
- Contaminants are retained on the feed side
- Filtered water (permeate) exits as purified product
4. Collection Clean water is collected while concentrated contaminants are either flushed away (cross-flow systems) or accumulate until cartridge replacement (dead-end systems).
Membrane Filtration Categories by Pore Size
| Type | Pore Size | Removes | Typical Applications |
|---|---|---|---|
| Microfiltration (MF) | 0.1 - 10 μm | Bacteria, sediment, turbidity | Pre-treatment, beverage clarification |
| Ultrafiltration (UF) | 0.01 - 0.1 μm | Viruses, proteins, colloids | Drinking water, dairy processing |
| Nanofiltration (NF) | 0.001 - 0.01 μm | Hardness ions, organic molecules | Water softening, pharmaceutical |
| Reverse Osmosis (RO) | 0.0001 - 0.001 μm | Dissolved salts, minerals | Desalination, ultrapure water |

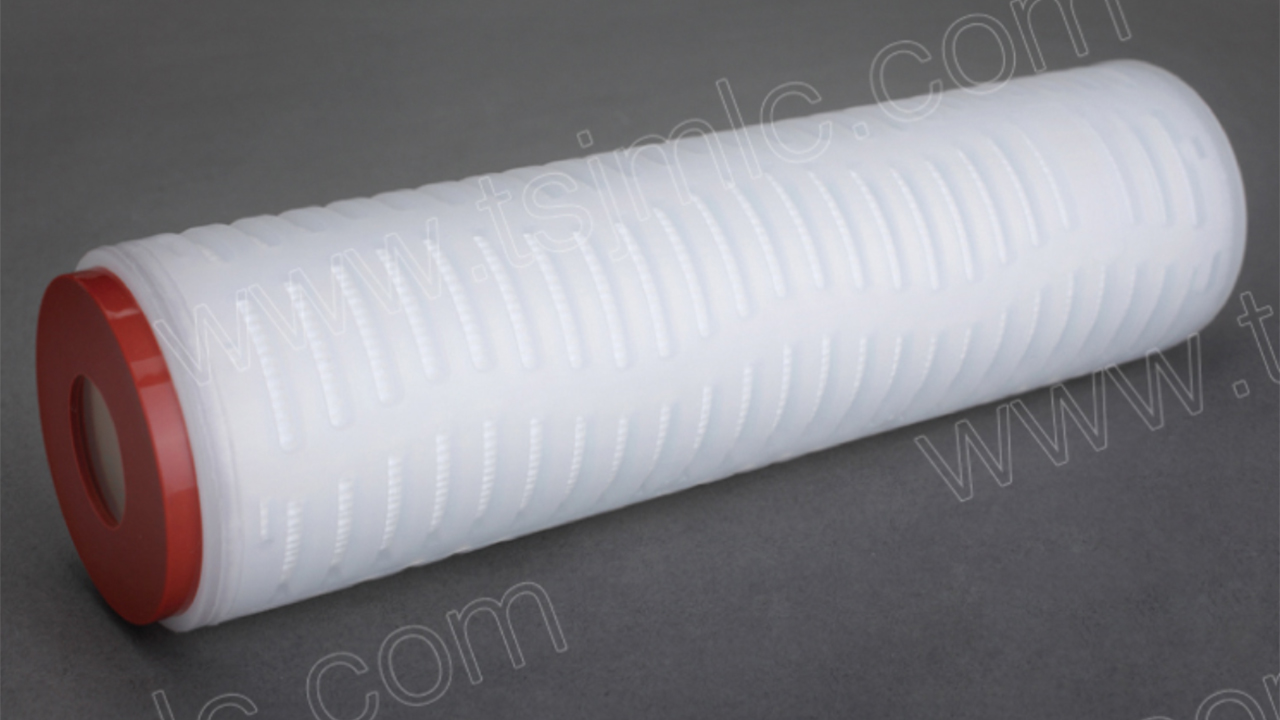

Why Polypropylene Dominates Membrane Filter Construction
Polypropylene (PP) has emerged as the preferred material for membrane filter cartridge manufacturing—and the reasons are both technical and economic.
Polypropylene Performance Characteristics
| Property | Specification | Benefit |
|---|---|---|
| Chemical Resistance | pH 1-14 compatibility | Handles acids, bases, solvents |
| Temperature Range | Up to 82°C (180°F) | Suitable for hot water applications |
| Hydrophobic Nature | Inherent water resistance | Excellent for aqueous solutions (when treated) |
| FDA Compliance | 21 CFR 177.1520 | Safe for food and beverage contact |
| Extractables | <5 mg/L | Minimal contamination of filtered product |
| Cost Efficiency | Low raw material cost | Economical cartridge replacement |
| Disposability | 100% thermoplastic | Recyclable, incinerable |
Polypropylene vs. Alternative Membrane Materials
| Material | Strength | Limitation | Best For |
|---|---|---|---|
| Polypropylene | Cost-effective, broad compatibility | Limited to 82°C max | General water filtration |
| PTFE | Extreme chemical resistance | High cost | Aggressive solvents |
| PVDF | High temperature tolerance | Moderate cost | Hot water, steam |
| PES | High flow rates | Narrower pH range | Pharmaceutical, biotech |
| Nylon | Protein binding | pH limitations | Laboratory applications |
For most water filtration applications, polypropylene membrane filter cartridges deliver optimal price-to-performance value.
Membrane Filter Cartridge Performance Specifications
When selecting a membrane filter cartridge for your water filtration system, these critical specifications determine effectiveness:
Contaminant Removal Efficiency
| Contaminant | Size | MF Removal | UF Removal |
|---|---|---|---|
| Giardia cysts | 8-15 μm | >99.99% | >99.99% |
| Cryptosporidium | 4-6 μm | >99.99% | >99.99% |
| Bacteria | 0.2-10 μm | >99.9999% (6-log) | >99.9999% |
| Viruses | 0.02-0.3 μm | Variable | >99.99% (4-log) |
| Turbidity | Variable | 95-99% | 99%+ |
| Colloidal particles | 0.01-1 μm | 80-95% | >99% |
Flow Rate and Pressure Data
| Cartridge Size | Nominal Flow Rate | Max Differential Pressure |
|---|---|---|
| 10" Standard | 5-15 GPM (19-57 LPM) | 35 psi (2.4 bar) |
| 20" Standard | 10-30 GPM (38-114 LPM) | 35 psi (2.4 bar) |
| 30" Standard | 15-45 GPM (57-170 LPM) | 35 psi (2.4 bar) |
| 40" Standard | 20-60 GPM (76-227 LPM) | 35 psi (2.4 bar) |
Flow rates vary based on pore size, water quality, and operating conditions.
Water Filtration Applications for Membrane Filter Cartridges
The versatility of membrane filtration technology enables deployment across diverse water filtration scenarios:
Industrial Applications
- Pharmaceutical manufacturing: USP purified water production
- Electronics: Ultrapure water for semiconductor fabrication
- Food & beverage: Product water, CIP rinse water
- Power generation: Boiler feed water pre-treatment
Commercial Applications
- Hospitality: Ice machines, coffee equipment protection
- Healthcare: Dialysis water, laboratory-grade water
- Aquariums: Marine and freshwater system filtration
Municipal & Residential Applications
- Point-of-entry (POE): Whole-house water treatment
- Point-of-use (POU): Under-sink drinking water systems
- Well water treatment: Sediment and bacteria removal
Advantages of Membrane Filter Cartridge Technology
| Advantage | Description | Impact |
|---|---|---|
| Absolute Filtration | Defined pore size ratings | Predictable, validated performance |
| No Chemical Addition | Physical separation only | No disinfection byproducts |
| Compact Footprint | High filtration area in small package | Space-efficient installations |
| Scalability | Modular cartridge systems | Easy capacity expansion |
| Simple Maintenance | Cartridge replacement only | Minimal operator training required |
| Validated Performance | Integrity testable | Compliance documentation available |
Choosing the Right Membrane Filter Cartridge
Selection Criteria Checklist
Define your contaminant targets – What particle sizes must be removed?
Assess chemical compatibility – Does polypropylene suit your water chemistry?
Calculate flow requirements – What GPM/LPM throughput is needed?
Consider temperature conditions – Will operating temperatures exceed 80°C?
Evaluate regulatory requirements – Is FDA, NSF, or other certification required?
Factor replacement frequency – What is your acceptable cartridge lifecycle?
Conclusion
Understanding how membrane filter working principles deliver clean water empowers better decision-making for any water filtration application. The membrane filter cartridge—particularly those constructed from high-quality polypropylene—represents proven, reliable technology backed by decades of performance data.
From municipal treatment plants processing millions of gallons daily to point-of-use systems protecting a single faucet, membrane filtration consistently delivers measurable results: 99.9999% bacterial removal, turbidity reduction below 0.1 NTU, and validated performance you can trust.
Ready to implement membrane filtration technology? Explore our complete range of polypropylene membrane filter cartridges—engineered for performance, built for reliability, and designed for your water purity requirements.
