Antibiotic Filtration: How to Build an Efficient Filtration System for Antibiotic Production
Antibiotics play an important role in modern pharmaceutical manufacturing. They can be produced through microbial fermentation, genetic engineering, chemical synthesis, or semi‑synthetic processes. Regardless of the production route, filtration is an essential step for removing unwanted particles and microorganisms while maintaining the quality of the target product.
A well‑designed antibiotic filtration system should not simply focus on particle removal. It must also provide good chemical compatibility, stable flow performance, and reliable microbial retention throughout the production process.
Why Is Filtration Important in Antibiotic Production?
During antibiotic production, fermentation broths and process fluids may contain cells, suspended solids, colloidal substances, lipids, pigments, and other impurities. If these contaminants are not removed effectively, they can increase the filtration load and shorten the service life of downstream membrane filters.
Main Objectives of Antibiotic Filtration
| Objective | Description |
|---|---|
| Particle & colloid removal | Remove suspended particles and colloidal impurities |
| Downstream protection | Reduce filtration load and protect final sterilizing‑grade filter |
| Microbial control | Eliminate bacteria and other harmful microorganisms |
| Product preservation | Keep valuable active product components permeable |
| Process stability | Deliver stable flow rate and high filtration capacity |
For pharmaceutical applications, filter material compatibility is particularly important. The filter should remain stable when exposed to the process fluid and should not adversely affect the active pharmaceutical ingredient or other critical components.
Recommended Filtration Configuration
A multi‑stage filtration system is generally more effective than relying on a single filter. Based on the characteristics of antibiotic production processes, the following configuration can provide a practical solution:
| Stage | Filter Media | Core Function | Application Notes |
|---|---|---|---|
| 1. Prefiltration | Glass Fiber | Remove large‑size particles & suspended impurities | Lower contaminant load for subsequent membrane filters; highly suitable for high‑solid‑content fermentation broth |
| 2. Air Filtration | Hydrophobic PTFE | Sterile gas filtration | Excellent chemical resistance & hydrophobicity; reliable microbial retention for sterile fermentation air supply |
| 3. Sterile Final Filtration | PES Membrane | Liquid sterile filtration | High flow rate, broad chemical compatibility; sterilizing‑grade membrane for final microbial contamination risk control |

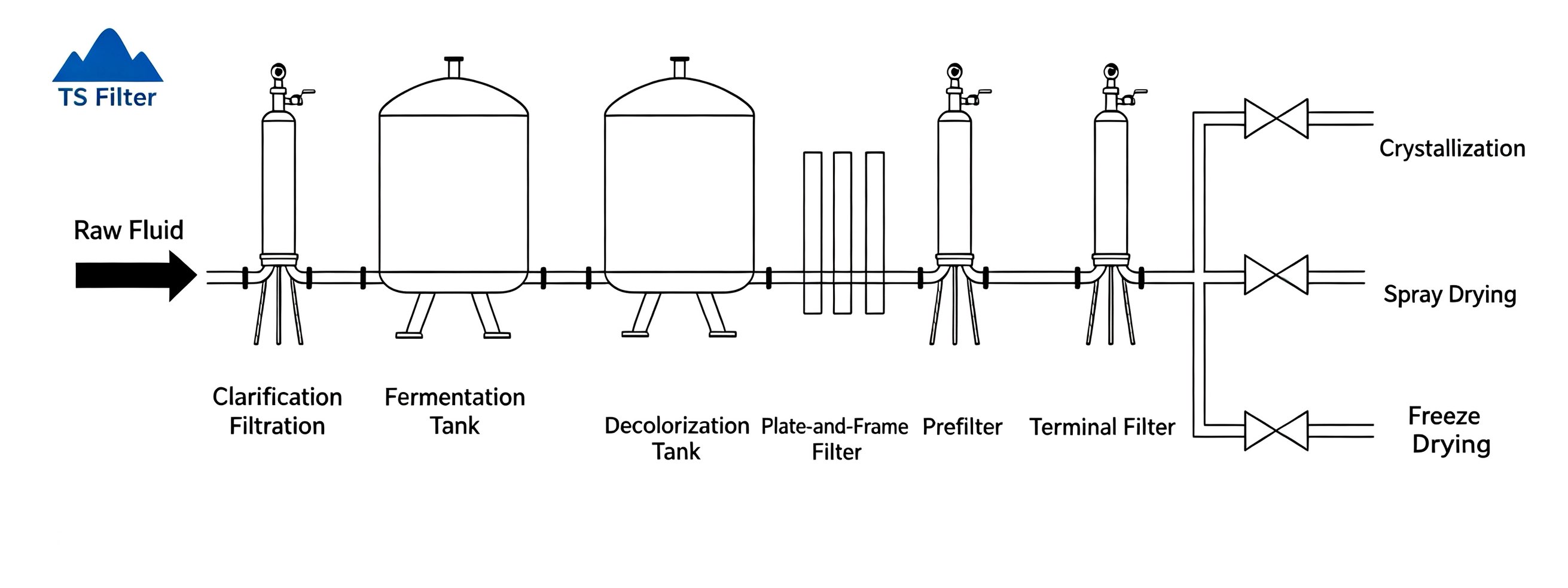

Typical Antibiotic Filtration Process
- Upstream stages: Focus on removing large contaminants and reducing solid loading.
- Downstream stages: Achieve fine particle interception and strict microbial control.
Core principle: Distribute contaminant burden over multi‑steps, avoid overloading one single filter membrane, extend overall filter service life.
Choosing the Right Filter for Antibiotic Processing
Key evaluation factors for filter selection：
- Filter material: Ensure chemical compatibility with process fluid
- Filtration rating: Match pore size to particle / microbial removal requirement
- Flow rate and throughput: High permeability guarantees production efficiency and short processing time
- Contaminant loading: Deploy appropriate prefilter to safeguard final membrane element
- Process conditions: Evaluate temperature, pressure, pH value and solvent environment before material confirmation
A properly designed antibiotic filtration system can improve filtration efficiency, protect downstream equipment, and provide more consistent process performance.
Conclusion
Antibiotic manufacturing involves complex process fluids and strict requirements for microbial control. A combination of glass fiber prefiltration, hydrophobic PTFE air filtration, and PES sterile filtration provides a practical multi‑stage approach for many pharmaceutical filtration processes.
Rather than using a single filter to handle all contaminants, a properly configured antibiotic filtration system separates clarification, gas filtration, and final sterile filtration into dedicated stages. This helps improve filter life, maintain flow performance, and support the quality requirements of modern pharmaceutical production.
TS Filter Solutions TS Filter provides a range of filtration solutions for pharmaceutical and bioprocess applications, including PP, PES, PTFE, and other membrane filter cartridges. Filter selection can be customized according to the process fluid, filtration rating, operating conditions, and required throughput.
