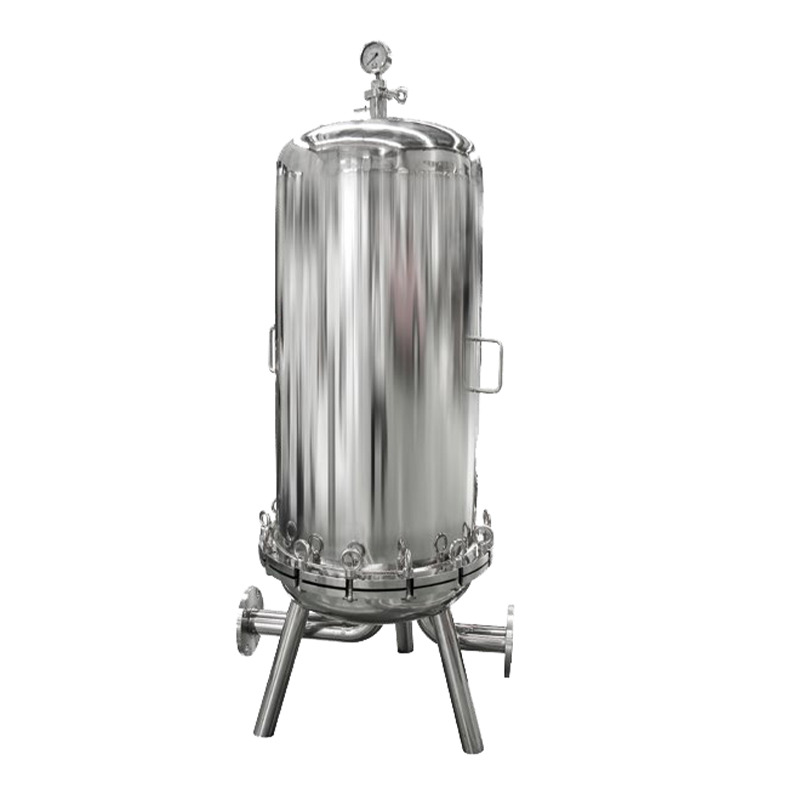

Multi Round Liquid Filter Housing
Specifications
| Length: | 10 inch, 20 inch, 30 inch, 40 inch |
| Inlet/outlet connection: | Tri-Clamp or Flange or As customer requested |
| Vent: | Quick Release Valve |
| Manometer: | 1.5'' Tri Clamp |
Operating Conditions
| Max. Operating Temperature: | 130 ℃ |
| Design Pressure: | 0.8 Mpa |
| Max. Pressure Resistance | 0.6 Mpa |
Surface Finish
| Polishing Type: | Mirror Polished / Interior Electro Polished |
| Roughness of Polishing: | Interior 0.3 μm / Exterior 0.4μm |
Order Information
| PRODUCT | CARTRIDGE NOS. | LENGTH | MATERIAL | ADAPTER | How to Order?- Example | ||||||
| PSFB | 03-Three | 5" - 05 10" - 10 20" - 20 30" - 30 40'' - 40 |
304-SUS304 | CN - 226/FIN BN - 222/FIN CF- 226/SEAL BF- 222/FLAT AA-DOE |
Cartridge Nos.: Single, Length: 10" Material: SUS316, Adapter: 226/Fin Selection Code is: PSFB0310316CN |
||||||
| 05-Five | 316-SUS316L | ||||||||||
| 07-Seven | C-276 | ||||||||||
| 09-Nine | TA2 | ||||||||||
Typical Applications
• WaterTreatment, RO system
• Pharmaceuticals, API, Biologics
• Food and Beverage, Wine, Beer, Dairy, Mineral Water
• Paints, Inks Plating Solutions
• Process Chemicals and Electronics Industry
• Liquid prefiltration, particularly suitable for large volume or high viscosity liquids
