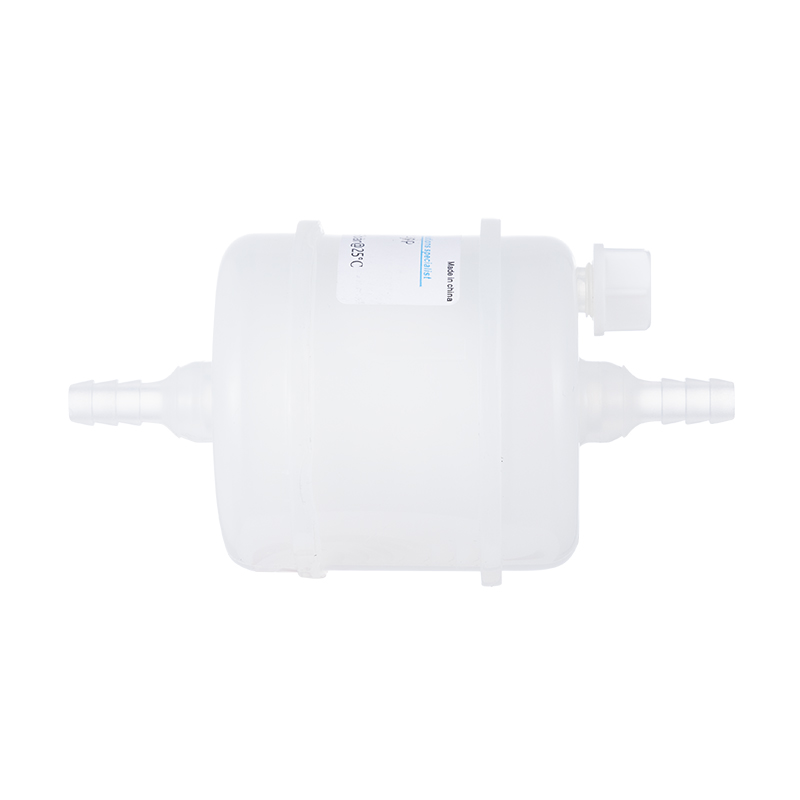

Mini Integrated Disposable Capsule Filter

◆ Capsule filters are kind of self contained, ready to use, disposable filters

◆ Made up of polypropylene cage and pleated membrane filter inside by thermal bonding, free of adhesives, binders and other chemicals

◆ Compact design with a filter area ranging from 300cm² to 450cm², perfect for limited lab space and small-volume samples (1-50L batches). Its lightweight structure (only 150-250g) enables easy handling and quick replacement, reducing operational downtime.

◆ Available with a wide range of connectors and filter medias for options to meet various filtration requirements

◆ Ideal for small batch prefiltration and final filtration of liquids or gas in laboratory

◆ Fully integrity tested before release from manufacture, ensuring reliable performance for critical lab applications like reagent purification and small-scale cell culture. Cost-effective for low-throughput needs, it minimizes waste while delivering consistent particle retention.

product details

product description

Specifications

Materials Of Construction	Filter Media:	PP/PES/PVDF/PTFE/Nylon and other Membranes for Options
	Support Layers:	Polypropylene
	Inner core:	Polypropylene
	Outer Cage, End caps:	Polypropylene
Cartridge Dimensions	Outer Diameter	60mm
	Length	Nominal 1.5"
	Connectors:	MNPT; Hose barb; Compression joint and so on
	Filtration Area(m2)	0.045 m2
Operating conditions	Normal Operating Temperature:	Up to 60℃ (140℉)
	Max.Operating Temperature.:	80℃ (176℉) at △P≤1.0 bar (14psi)
	Max. Differential Pressure	2.4 bar (34.8psi) at 25℃ (77℉).
	Normal Flow direction:	4.2 bar (60 psi) at 25℃ (77℉)
	Reverse flow direction:	2.1 bar (30psi) at 25℃ (77℉).
	Sterilization:	Autoclave sterilization 30 minutes, Gamma-irradiation (Need to confirm with Seller)

Order Information

TYPE	FILTER MEDIA	MICRON	CONNECTIONS	LENGTH	Vent/Drain
K68B - Φ68 (Filtration Area 1200cm2 or 2200cm2 or 4400cm2 for option)	IPS - Polyethersulfone	0.1um-010	A- 1 1/2" Tri-clamp (K68C type only)	1- 1.5" (K60 only)	M10 (K68B & K60)
K60 - Φ60 (Filtraion Area 450cm2)	IPP - Polypropylene	0.2um-020	B-1/2" Tri-clamp (K68C type only)	2 - 2.5" (K68B&K68C)	1/8" Hose Barb (K68C only)
K68C- Φ68(Filtration Area:1200cm2 or 2200cm2 or 4400cm2 for option)	IPF - Polytetrafluoroethylene	0.45um-045	C-1/4"MNPT ( K68B&K60 only)	5- 5" (K68B&K68C)
	PNN - Nylon	0.65um-065	D-1/2"MNPT ( K68B only)	10- 10" (K68B&K68C)
	DHPV - PolyvinylideneFluoride	1um-100	E- 9/16" Hose barb (K68B only)
	CNCA	5um-500	F- 1/4"compression joint (K60 only)
		10um-1000	G- 1/4" Hose Barb (K68B&K60)
		50um-5000	H- 1/2" Hose Barb (K68B only)
			X -Others ( If you need other connector pls make inquiry)
For Example: PES membrane, 0.2um, 450cm2 filtration area, 1/4" Hose Barb ---K60IPS020G1

Typical Applications

• Digital inks, paintings

• Small injection and tissue cultures in pharmaceutical industry

• Corrosive liquids/solvents filtration in chemical industry

• Photoresist, acids, etc in electronic industry

• Gas/Air sterile filtration

• Laboratory solutions

Table: Filter Media and Pore Size available

Filter Media	TS CODE	Pore Size(um)
PES	IPS	0.10, 0.20, 0.45, 0.65 µm
PP	DPP	0.10, 0.20, 0.45, 1.00, 3.00, 5.00, 10.0 µm
PTFE	IPF	0.10, 0.20, 0.45, 1.00 µm
NYLON66	PNN	0.10, 0.20, 0.45, 0.65, 1.00 µm
PVDF (Hydrophilic)	DHPV	0.10, 0.20, 0.45, 1.00 µm

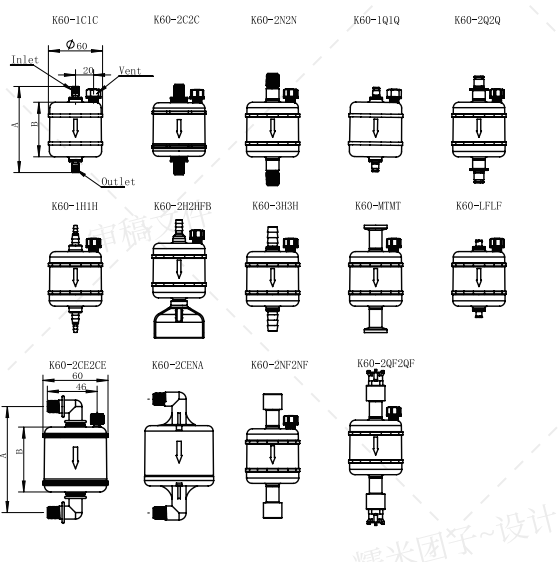

Name and EndcapType
