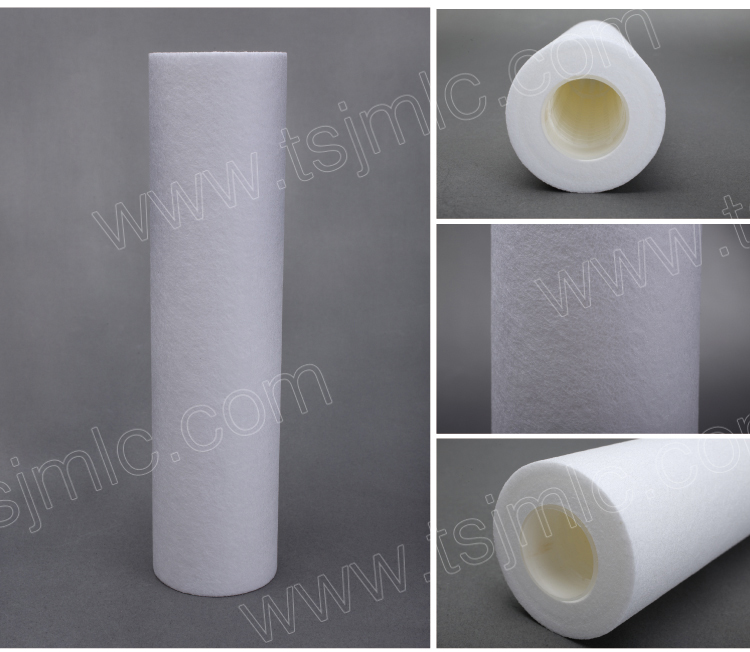

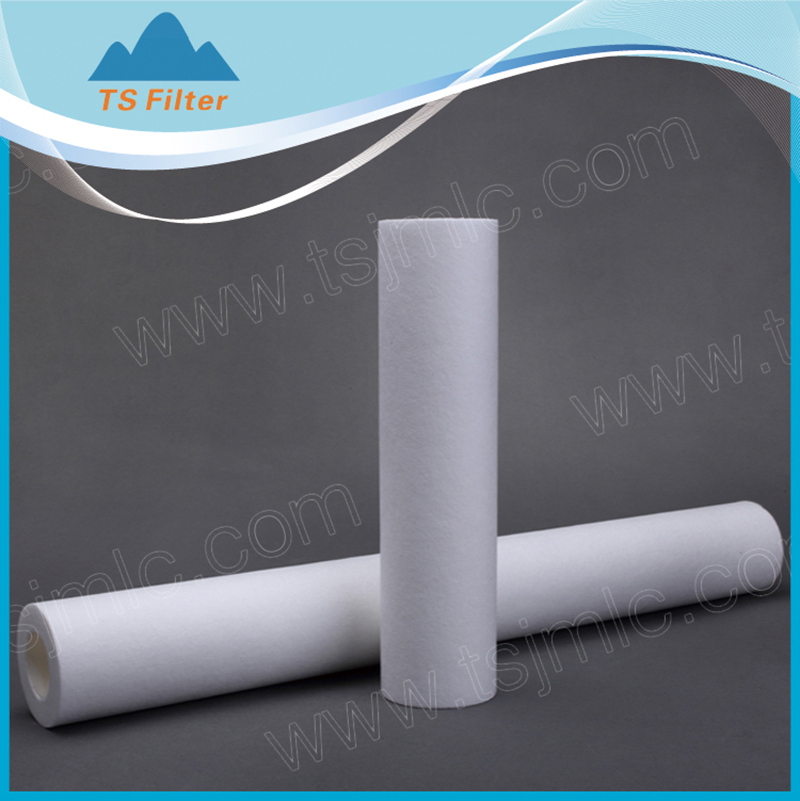

Melt Blown Filter Cartridges

◆ 100% high purity polypropylene (melt blown), thermally bonded on a polypropylene centre core, no adhesives

◆ High dirt holding capacity and low pressure loss

◆ Many connections (DOE, 226 ,222 End caps) are available

◆ Wide chemical compatibility, various micron ratings (1um to 100um)

◆ One piece construction up to 1524mm (60”)

Engineered for versatile prefiltration and clarification scenarios, it meets strict international standards (ISO/FDA) to ensure contaminant-free and stable performance. Its high dirt holding capacity reduces filter replacement frequency, while one-piece adhesive-free construction enhances chemical resistance and reliability. With multiple connection options and micron ratings, it seamlessly fits mainstream filtration systems, enabling tool-free maintenance and minimizing downtime—effectively cutting operational costs for water treatment, food&beverage, electronics and chemical industries.

product details

product description

Specifications

Materials Of Construction	Filter Media:	Melt Blown Polypropylene
	Micron Rating:	1.0, 5.0, 10.0, 20, 50, 70, 100um
	Inner core:	Polypropylene or Coreless
	O-rings/gaskets(Only for 226, 222 Ends):	Silicone, Nitrile, EPDM, Viton, etc
	Filtration Efficiency	≥80%
Cartridge Dimensions	Outer Diameter	63mm (2.5") / 114mm (4.5")
	Inner Diameter	28mm (1.10")
	Length(based on DOE end caps)	10"- 254mm, 20"- 508mm, 30"-762 mm, 40"- 1016mm
	Filtration Area(m2)	0.4 m2 per 10''
Operating conditions	Normal Operating Temperature:	Up to 50℃ (122℉)
	Max.Operating Temperature.:	80℃ (176℉) at △P≤1.0 bar (14psi)
	Max. Differential Pressure
	Normal Flow direction:	4.0 bar (58psi) at 25℃ (77℉)
	Reverse flow direction:	2.0 bar (29psi) at 25℃ (77℉).
	PH Value compatibility:	1-13
	Sterilization:	Not recommended

Order Information

PRODUCT	MICRON	Outer DIA.	ADAPTER	LENGTH	O-RING / GASKET
CP	100-1um 500-5um 1000-10um 2000-20um	D63-63mm(2.5") D114-114mm(4.5")	AA- CUT ENDS (NIL) BN-222/ FIN CN-226/ FIN	10-10" 20-20" 30-30" 40-40" Other-XX	S-silicone; N-nitrile E-epdm; V- viton How to Order?- Example
					Micron: 1um; Outer Dia: 63mm; Adapter: NIL; Length: 10" Selection Code is: CP100D63AA10
