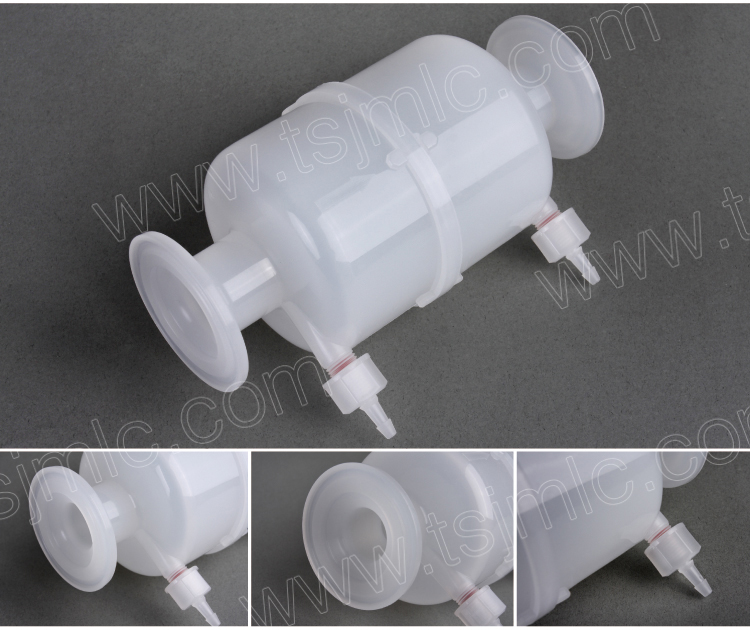

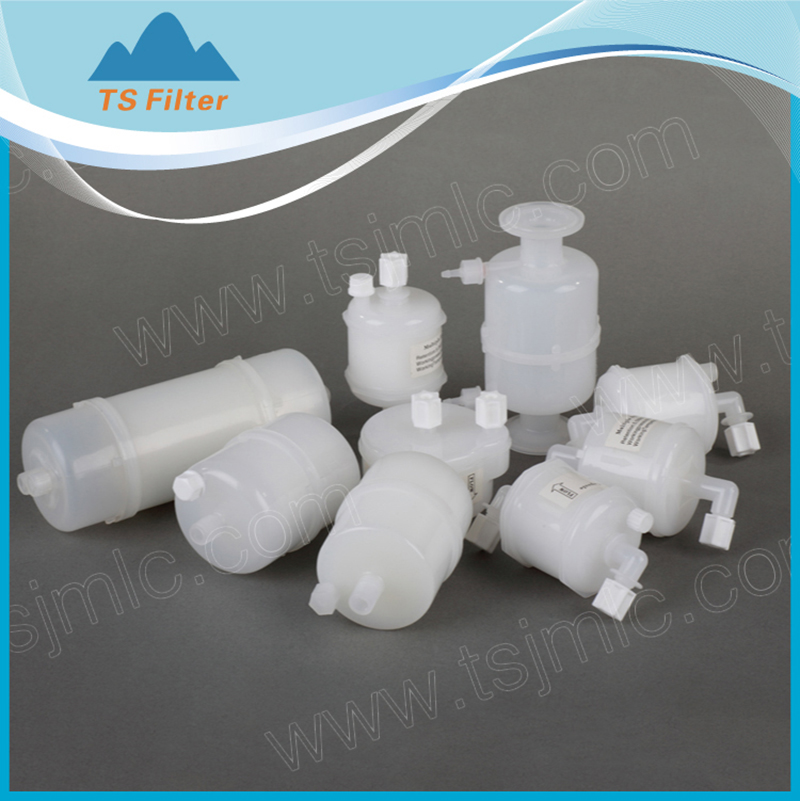

Medium Integrated Disposable Capsule Filter

◆ Capsule filters are kind of self contained,ready to use,disposable filters

◆ Made up of polypropylene cage and pleated membrane filter inside by thermal bonding, free of adhesives, binders and other chemicals

◆ High-capacity design with a filter area spanning 1200cm² to 4400cm², engineered for medium-to-large batch processing (50-500L volumes). It boasts enhanced flow rates (up to 20L/min) and longer service life, ideal for scaling up lab trials to pilot production.

◆ Available with a wide range of connectors and filter medias for options to meet various filtration requirements, including industrial-grade fittings for seamless integration into production lines.

◆ Ideal for small batch prefiltration and final filtration of liquids or gas in laboratory and pilot-scale manufacturing

◆ Fully integrity tested before release from manufacture, ensuring robust performance for high-throughput applications like bulk chemical purification and pharmaceutical intermediate processing. Its durable construction reduces replacement frequency, lowering overall operational costs.

product details

product description

Typical Applications

• Digital inks, paintings (bulk production)

• Small injection and tissue cultures in pharmaceutical industry (pilot-scale)

• Corrosive liquids/solvents filtration in chemical industry (medium-volume batches)

• Photoresist, acids, etc in electronic industry (mass production support)

• Gas/Air sterile filtration (industrial-grade purity requirements)

• Laboratory solutions and pilot-scale manufacturing processes

Specifications

Materials Of Construction	Filter Media:	PP/PES/PVDF/PTFE/Nylon and other Membranes for Options
	Support Layers:	Polypropylene
	Inner core:	Polypropylene
	Outer Cage, End caps:	Polypropylene
Cartridge Dimensions	Outer Diameter	69mm/60mm
	Length	Nominal 1.5", 2.5", 5" 10"
	Connectors:	MNPT; Hose barb; Sanitary Flange(Tri-Clamp); Compression joint and so on
	Filtration Area(m2)	0.045 m2 to 0.44 m2
Operating conditions	Normal Operating Temperature:	Up to 60℃ (140℉)
	Max.Operating Temperature.:	80℃ (176℉) at △P≤1.0 bar (14psi)
	Max. Differential Pressure	2.4 bar (34.8psi) at 25℃ (77℉).
	Normal Flow direction:	4.2 bar (60 psi) at 25℃ (77℉)
	Reverse flow direction:	2.1 bar (30psi) at 25℃ (77℉).
	Sterilization:	Autoclave sterilization 30 minutes, Gamma-irradiation (Need to confirm with Seller)

Order Information

TYPE	FILTER MEDIA	MICRON	CONNECTIONS	LENGTH	Vent/Drain
K68B - Φ68 (Filtration Area 1200cm2 or 2200cm2 or 4400cm2 for option)	IPS - Polyethersulfone	0.1um-010	A- 1 1/2" Tri-clamp (K68C type only)	1- 1.5" (K60 only)	M10 (K68B & K60)
K60 - Φ60 (Filtraion Area 450cm2)	IPP - Polypropylene	0.2um-020	B-1/2" Tri-clamp (K68C type only)	2 - 2.5" (K68B&K68C)	1/8" Hose Barb (K68C only)
K68C- Φ68(Filtration Area:1200cm2 or 2200cm2 or 4400cm2 for option)	IPF - Polytetrafluoroethylene	0.45um-045	C-1/4"MNPT ( K68B&K60 only)	5- 5" (K68B&K68C)
	PNN - Nylon	0.65um-065	D-1/2"MNPT ( K68B only)	10- 10" (K68B&K68C)
	DHPV - PolyvinylideneFluoride	1um-100	E- 9/16" Hose barb (K68B only)
	CNCA	5um-500	F- 1/4"compression joint (K60 only)
		10um-1000	G- 1/4" Hose Barb (K68B&K60)
		50um-5000	H- 1/2" Hose Barb (K68B only)
			X -Others ( If you need other connector pls make inquiry)
For Example: PES membrane, 0.2um, 2200cm2 filtration area, 1.5" Tri-clamp ---K68CIPS020A5

Name and EndcapType

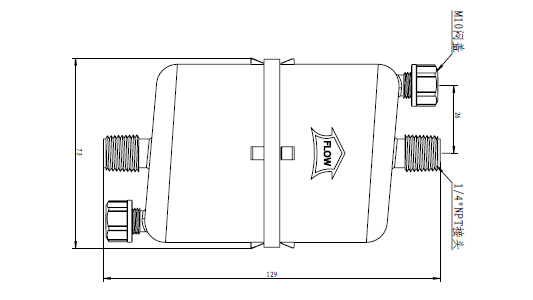

Medium Integrated Disposable Capsule Filter (1)

Name: K60-2C-M10

Inlet & outlet: 1/4"compression joint:

Filtration area: 450cm²

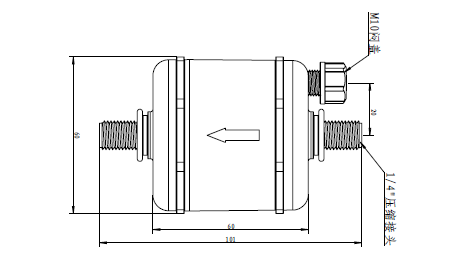

Medium Integrated Disposable Capsule Filter (2)

Name: K68B-2N-M10 2.5"

Inlet & outlet: 1/4"NPT connector

Filtration area: 1200cm²

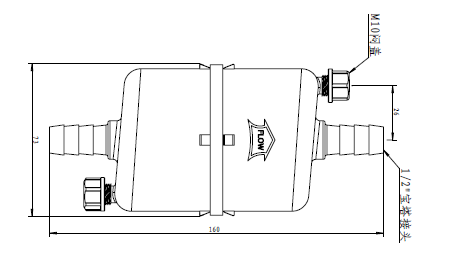

Medium Integrated Disposable Capsule Filter (3)

Name: K68B-4H-M10 2.5"

Inlet & outlet: 1/2"hose barb

Filtration area: 1200cm²

Medium Integrated Disposable Capsule Filter (4)

Name: K68C-MT-1H 2.5"

Inlet & outlet: 1/2"Sanitary flange connector

Filtration area: 1200cm²

Medium Integrated Disposable Capsule Filter (5)

Name: K68C-MT-1H 5"

Inlet & outlet: 1/2"Sanitary flange connector

Filtration area: 2200cm²

Medium Integrated Disposable Capsule Filter (6)

Name: K68C-TC-1H 2.5"

Inlet & outlet: 1.5"Sanitary flange connector

Filtration area: 1200cm²

Medium Integrated Disposable Capsule Filter (7)

Name: K68C-TC-1H 5"

Inlet & outlet: 1.5"Sanitary flange connector

Filtration area: 2200cm²

Table: Filter Media and Pore Size available

Filter Media	TS CODE	Pore Size(um)
PES	IPS	0.10, 0.20, 0.45, 0.65 µm
PP	DPP	0.10, 0.20, 0.45, 1.00, 3.00, 5.00, 10.0 µm
PTFE	IPF	0.10, 0.20, 0.45, 1.00 µm
NYLON66	PNN	0.10, 0.20, 0.45, 0.65, 1.00 µm
PVDF (Hydrophilic)	DHPV	0.10, 0.20, 0.45, 1.00 µm
