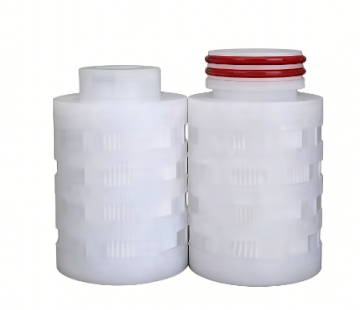

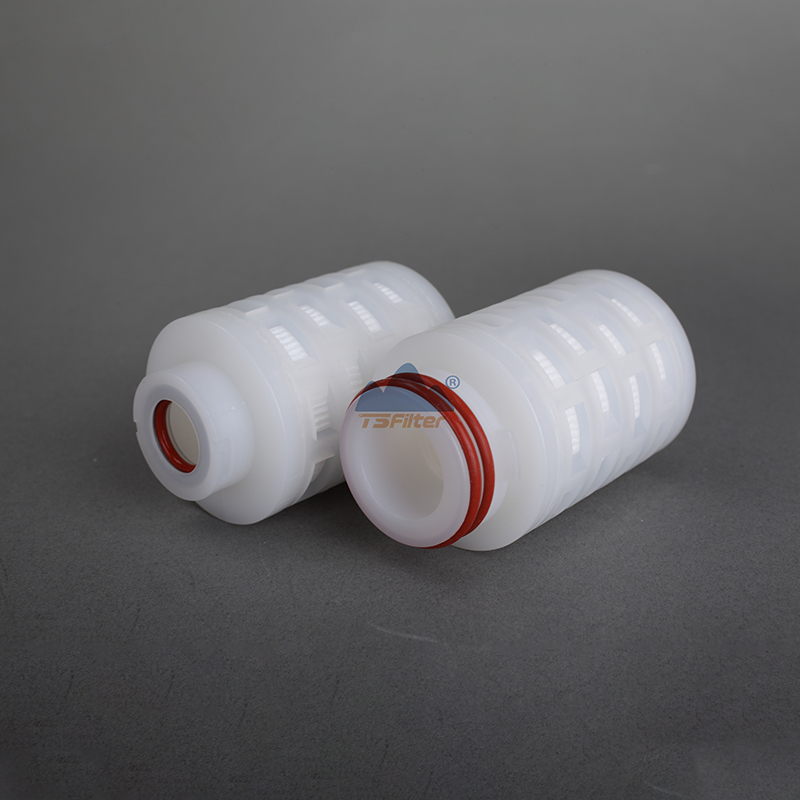

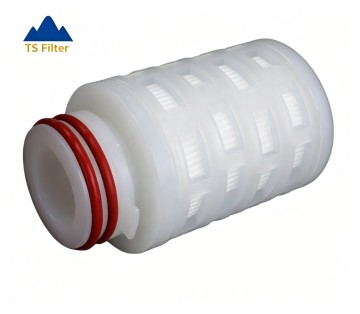

Junior Filter Cartridges
Specifications
| Materials Of Construction | Filter Media: | PES/PP/PTFE/NYLON66/PVDF | ||||
| Support Layers: | Polypropylene | |||||
| Inner core: | Polypropylene/SUS | |||||
| Outer Cage, End caps: | Polypropylene | |||||
| Seal Method: | Thermal Bonded, No Adhesives | |||||
| O-rings/gaskets: | Silicone, Nitrile, EPDM, Viton, etc | |||||
| Cartridge Dimensions | Outer Diameter | 56mm | ||||
| Length | 70mm (Including adapter) 125mm(Including adapter) | |||||
| Filtration Area(m2) | 0.12 m2(70mm length) 0.23 m2(132mm length) | |||||
| Operating conditions | Normal Operating Temperature: | Up to 60℃ (140℉) | ||||
| Max.Operating Temperature.: | 80℃ (176℉) at △P≤1.0 bar (14psi) | |||||
| Max. Differential Pressure | ||||||
| Normal Flow direction: | 4.2 bar (60 psi) at 25℃ (77℉) | |||||
| Reverse flow direction: | 2.1 bar (30psi) at 25℃ (77℉). | |||||
| PH Value compatibility: | 6-14 | |||||
| Sterilization: | Steam Sterilization for 30 minutes at 135℃(275℉) | |||||
| Cartridge Safety | Endotoxin: | ＜0.25 EU/ml | ||||
| Extractables: | 0.03g / 10" | |||||
Order Information
| GRADE | TYPE | FILTER MEDIA | MICRON | ADAPTER | LENGTH | O-RING / GASKET | |
| P- PHARMACEUTICAL F-FOODE-ELECTRONIC |
XF | IPS DPP IPF DPNN DHPV |
010-0.1um 020-0.2um 045-0.45um 065-0.65um 100-1um 500-5um 1000-1um 5000-5um |
214 216 |
1-70mm 216-125mm |
S-silicone; N-nitrile E-epdm; V-Viton How to Order?- Example Pharmaceutical grade; Filter Media: PES; Micron: 0.1um; Length: 70mm; ADAPTER: 214; O-ring: Silicone. Selection Code is: PXFIPS0102141S |
|
Typical Applications
• Small-scale sterile process gases, sterile vents;
• Small and medium batch pharmaceuticals and bioprocessing
• Laboratory solutions;
• Electronics and semiconductors;
• Filtration for optical resin gum;
• Small-scale fine chemicals and solvents;
• Point-of-use water supply
