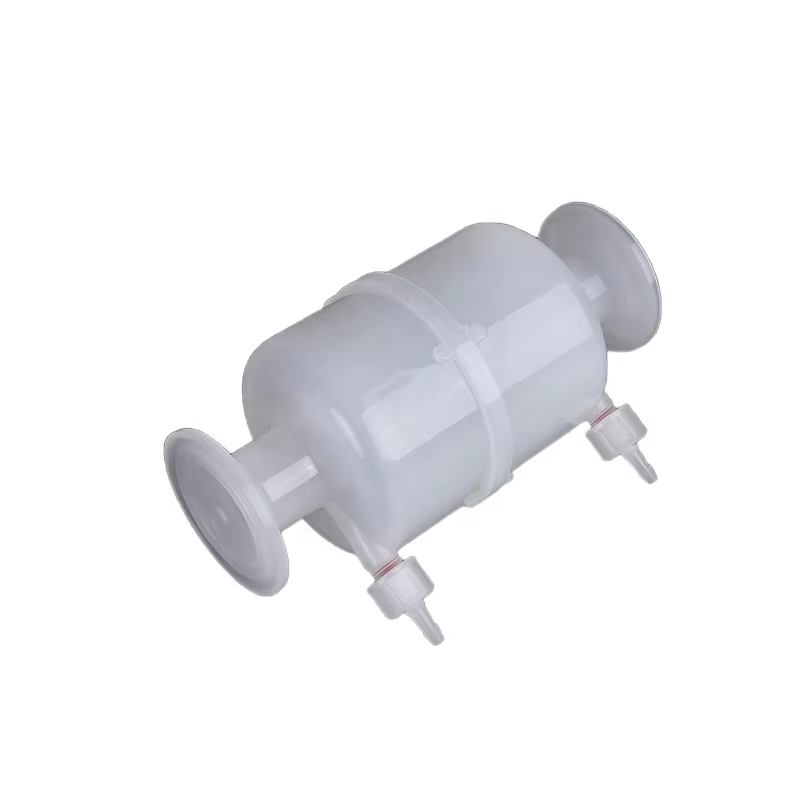

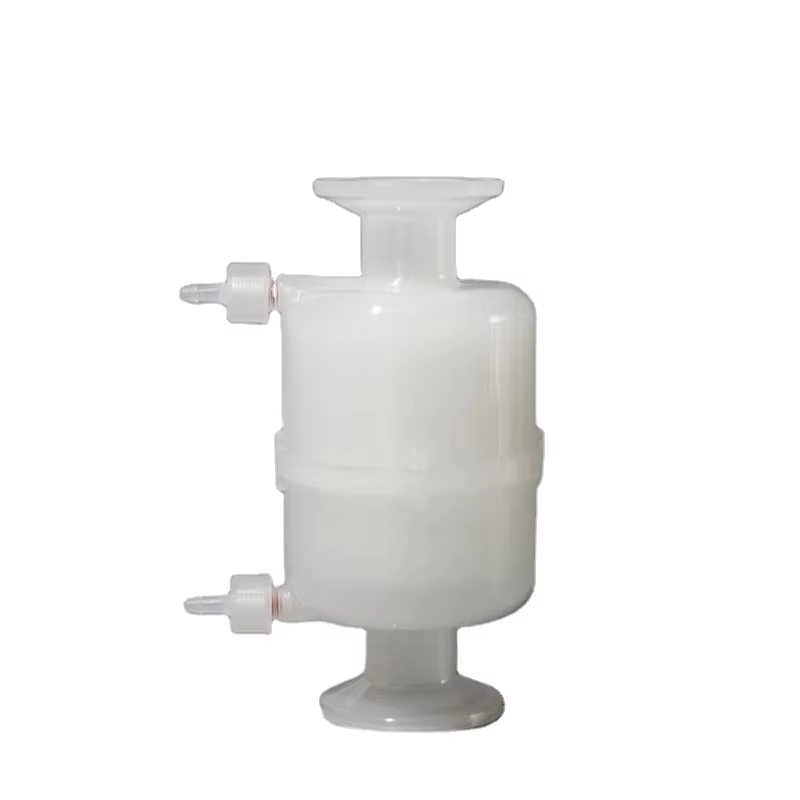

JNSB Series K68 Capsule Filter for Pharmaceutical & Lab Use

◆ High temperature resistance, excellent mechanical strength

◆ Optional filter membrane materials and connection types

◆ Safe use, easy to operate and wide chemical compatibility

◆ 100% integrity test and rinsed with pure water, no medium shedding

◆ Equipped with exhaust port to avoid internal residue

Designed for reliable filtration of volatile gases and low-flow liquids, this capsule filter cage is made of flexible polypropylene via thermal fusion bonding, ensuring safe, stable performance for critical applications. Its construction features low internal residue, while a wide selection of membrane materials and connection types is available to meet your specific requirements. Safe to use and easy to operate, it minimizes contamination risks and lowers operational hassle, serving as a dependable solution for your volatile gas and low-flow liquid purification needs.

product details

product description

Specifications

Materials Of Construction	Filter Media:	Selection According to Demand
	Support Layer:	Polypropylene/Polyester
	Micron Rating:	0.04-100 um

	Outer Cage, End caps:	Polypropylene
	Seal Method:	Thermal Bonded, No Adhesives
	O-rings/gaskets:	Silicone, Nitrile, EPDM, Viton, Teflon, etc
Cartridge Dimensions	Outer Diameter	68mm

	Length(based on DOE end caps)	2.5", 5'', 10''
	Filtration Area(m2)	2.5in ≥1200 cm²
Operating conditions	Normal Operating Temperature:	Up to 65℃ (149℉)
	Max.Operating Temperature.:	65℃ (149℉) at △P≤0.1 Mpa (14.50psi)
	Max. Operating Pressure	0.55 Mpa / 25 ℃
	Normal Flow direction:	0.42 Mpa / 25℃ (77℉)


	Steam Sterilization:	Autoclave Sterilization for 30 Min/Time

Order Information

PRODUCT	FILTER MEDIA	MICRON	LENGTH	END CAP	VENT/DRAIN	How to Order? -Example
JNSB	PP-PP PN-NYLON66 PS-PES PF-PTFE PV-PVDF	010-0.1um 020-0.2um 045-0.45um 065-0.65um 100-1.0um 300-3.0um 500-5.0um	25-2.5'' 50-5'' 100-10''	2C-1/4" Compression Joint 2H-1/4" Hose Barb 3H-3/8" Hose Barb 4H-1/2" Hose Barb 2N-1/4" NPT Connection 4N-1/2" NPT Connection	2C-1/4'' Compression Blank cap M10-M10 Blank Cap	PP;Micron:0.1um; Length:2.5" END CAP: 1/4''Compression Joint; M10 Vent Selection Code is: JNSBPP010252CM10

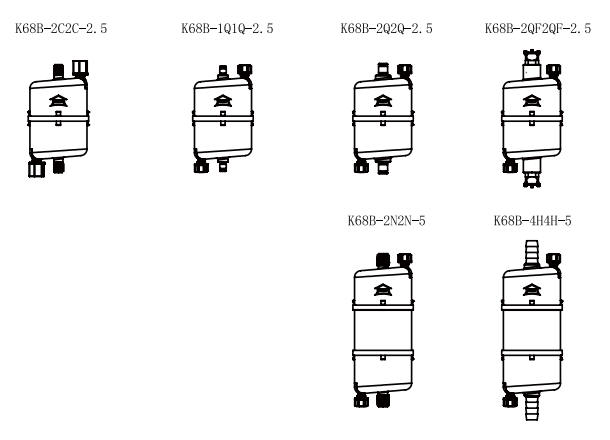

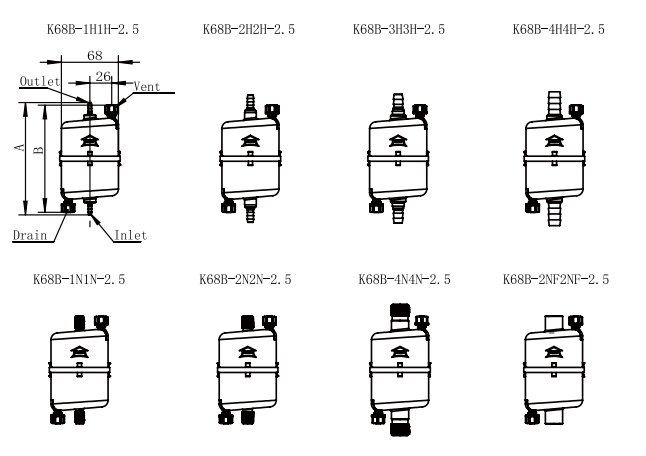

Product Drawing

Typical Applications

• Gas sterilization filtration

• Small - flow terminal filtration

• Chemical reagent , corrosive liquid filtration

• Culture liquid and medicine liquid filtration

• Ultra pure water terminal filtration

• Adhesive, ink, biological product filtration
