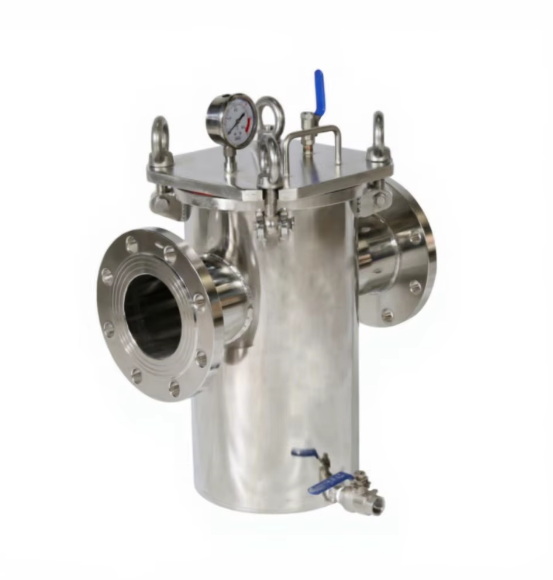

Industrial Use Basket Filter with Magnetic Bar for Water Liquids Filtration
Working Principle
During the conveying process of the liquid slurry, when the liquid slurry passes through the filter, under the magnetic effect of the strong magnetic rod, the ferromagnetic impurities in the liquid slurry are adsorbed on the sleeve of the magnetic rod, completely removing the ferromagnetic impurities in the liquid slurry and ensuring that the content of iron impurities can be effectively controlled in the next working procedure.
Technical Specification
| Material: | Housing | Stainless Steel 304, 316L and CS for choice |
| Anticorrosive Lining Material | PTFE FEP(F40) ETFE(E40) | |
| Sealing | Silicone, Viton, EPDM, PTFE | |
| Polishing Type: | Mechanical Polished/Electro Polished | |
| Roughness of Polishing: | Interior Ra 0.3 um/ Exterior Ra 0.4 um | |
Specifications
| Type | MAGNETIC ROD Q'TY | MAGNETIC INTENSITY(GS) | FLOW RATE(m³/h) | DIMENSIONS(mm) | OPERATING PRESSURE(Mpa) | OPERATING TEMPERATURE(℃) |
| LSCB-3 | 3 | 9000-12000 | 3 | 220*133*180 | 0.1-0.4Mpa | -10~140℃ |
| LSCB-5 | 5 | 9000-12000 | 5 | 280*230*220 | 0.1-0.4Mpa | -10~140℃ |
| LSCB-7 | 7 | 9000-12000 | 10 | 330*230*240 | 0.1-0.4Mpa | -10~140℃ |
| LSCB-9 | 9 | 9000-12000 | 12 | 360*230*260 | 0.1-0.4Mpa | -10~140℃ |
| LSCB-12 | 12 | 9000-12000 | 25 | 480*320*300 | 0.1-0.4Mpa | -10~140℃ |
| LSCB-14 | 14 | 9000-12000 | 30 | 480*320*350 | 0.1-0.4Mpa | -10~140℃ |
| LSCB-18 | 18 | 9000-12000 | 40 | 480*350*350 | 0.1-0.4Mpa | -10~140℃ |
Order Information
| PRODUCT | MAGNETIC ROD Q'TY | CAGE MATERIAL | INLET/OUTLET CONNECTION | CONNECTION | O-RING /GASKET | SURFACE FINISH | |||
| LSCB | 3 5 7 9 12 14 18 |
304 316L CS A(Antiseptic) |
Flange Tri Clamp Thread |
Tri-Clamp | Silicone | Mechanical Polished |
|||
| Flange | Viton | Electro Polished | |||||||
| EPDM PTFE |
|||||||||
