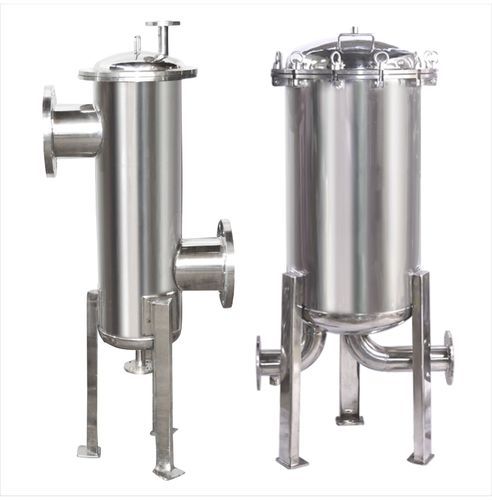

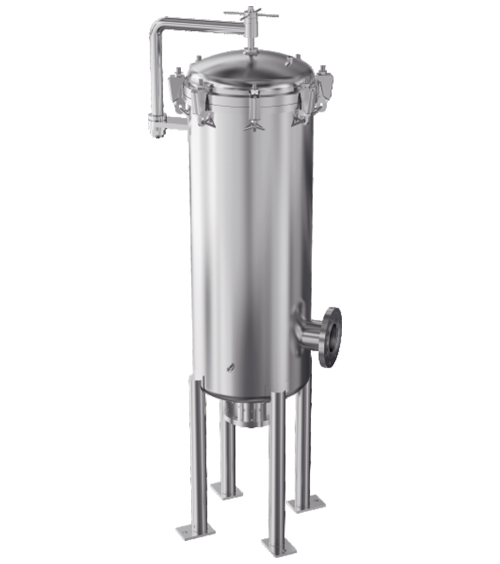

High Flow Cartridge Filter Housing

◆ Scientific structure, good sealing, no dead space, easy to clean

◆ Upper opening structure, easy to install and maintain, easy to use

◆ High roughness of polishing, interior 0.3 micron, exterior 0.4 micron

◆ Optional internal electro polishing or external sandblasting

◆ With compacting structure, small floor space

product details

product description

Technical Specification

Designed Pressure:	0.8 Mpa
Max.operating pressure:	0.6 Mpa
Max.Temperature:	130 ℃
Surface finish:	Polishing Type: Mirror Polished/Interior Electro Polished Roughness of Polishing: Interior 0.3μm/ Exterior 0.4μm

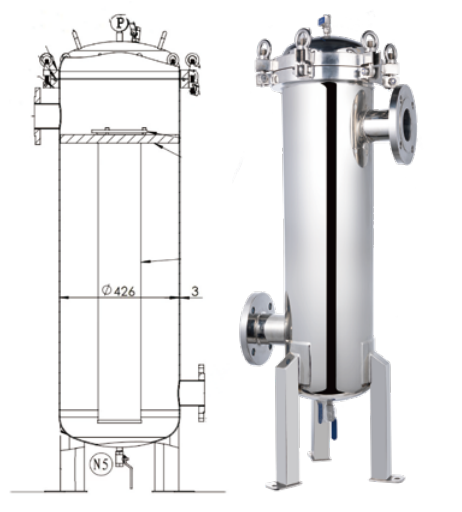

Type	Length	A Total Height(mm)	B Inlet and Outlet Distance(mm)	C Barrel Diameter(mm)	D Height of Entrance and Exit from Ground(mm)
1 core	20''	1106	400	219	370
2 cores		1146	600	426	400
3 cores		1188	640	450	400
4 cores		1188	700	500	400
5 cores		1380	810	550	550
6 cores	40''	1616	400	219	370
7 cores		1701	600	426	400
8 cores		1708	640	400	400
9 cores		1721	700	500	200
10 cores		1880	810	550	550

PRODUCT		MATERIAL	CARTRIDGE NOS.		ADAPTER		LENGTH	INLET/OUTLET	O-RING	SURFACE FINISH	How to Order?- Example
PSFF		304-SUS304 316-SUS316L C-C-276 T-TA2	01 - Single 03 - Three 04 - Four 06 - Six 07 - Seven 09 - Nine		AA-DOE CN-226/FIN BN-222/FIN		20" - 20 40" - 40 Other - XX	F50(Flange DN50) F80(Flange DN80) F100(Flange DN100) F150 F200 F300 Other - XX	S-Silicone V-Viton E-EPDM T-Teflon	M-Mirror Polished E-Electro Polished	Material: SUS304 Cartridge Nos.: Single Cartridge adapter:226/FIN Cartridge length: 10" Inlet/Outlet: Flange DN 50 Surface Finish: Mirror Polished O-RING: Silicone Selection Code is: PSFF30401CN20F50SM
