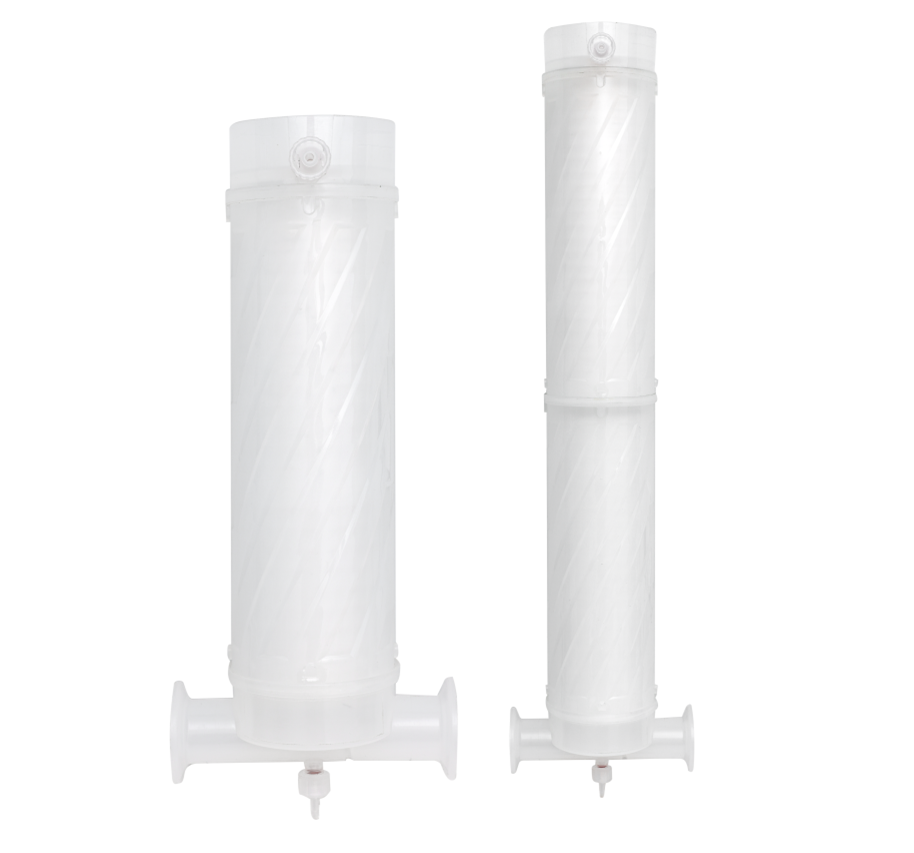

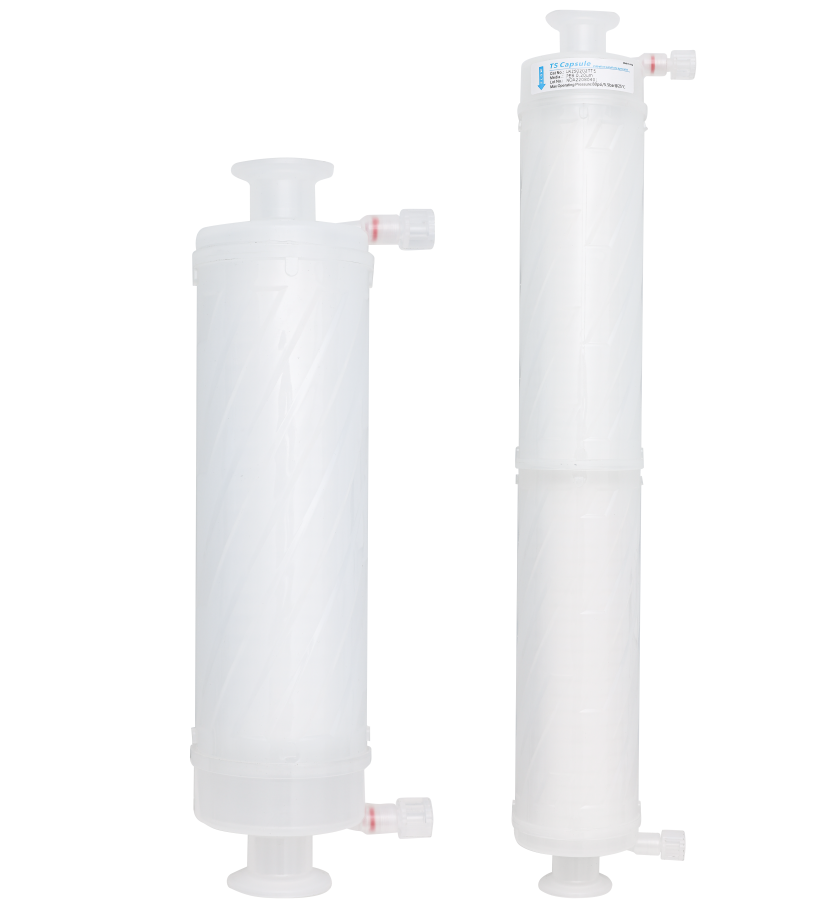

Full-size K100 Large Capsule Filter

◆ 3 main styles, with 5 types of interfaces for optional combinations

◆ Full-size filters available in dimensions from 10 inch to 40 inch

◆ Safe use, easy to operate and wide chemical compatibility

◆ 100% integrity test and rinsed with pure water, no medium shedding

◆ Exhaust/liquid valve design hose barb connector, easy to connect the pipeline

Designed for large-volume pre-filtration, clarification and final filtration scenarios, it features an all-polypropylene structure with imported filter media, ensuring stable and adhesive-free performance for industrial-grade processes. Its robust thermal fusion bonding construction delivers excellent chemical compatibility and low extractables while a wide choice of membrane types and interface forms meets your customized needs greatly. Easy to integrate and operate in daily production, it ensures consistent filtration efficiency and serves as a reliable solution for your large-volume liquid purification needs in biotech, food, pharmaceutical and chemical industries.

product details

product description

Specifications

Materials Of Construction	Filter Media:	Selection According to Demand
	Support Layer:	Polypropylene/Polyester
	Micron Rating:	0.10-10 um

	Outer Cage, End caps:	Polypropylene
	Seal Method:	Thermal Bonded, No Adhesives
	O-rings/gaskets:	Silicone, Nitrile, EPDM, Viton, Teflon, etc
Cartridge Dimensions	Outer Diameter	90mm

	Length(based on DOE end caps)	10", 20'', 30'', 40''
	Filtration Area(m2)	0.55~2.6 m²
Operating conditions	Normal Operating Temperature:	Up to 80℃
	Max.Operating Temperature.:	80℃ at △P≤0.1 Mpa (14.50psi)
	Max. Operating Pressure	0.55 Mpa / 25 ℃
	Normal Flow direction:	0.42 Mpa / 25℃ (77℉)


	Steam Sterilization:	Autoclave Sterilization for 30 Min/Time

Order Information

PRODUCT	FILTER MEDIA	MICRON	LENGTH	END CAP	How to Order? -Example
LK T=T Type I=I Type L=L Type A=A Type	S-PES N-NYLON66 V-PVDF F-PTFE P-PP G-GF	010-0.1um 020-0.2um 045-0.45um 065-0.65um 100-1.0um 300-3.0um 500-5.0um 1000-10.0um 2000-20.0um 4000-40.0um	1-10'' 2-20'' 3-30'' 4-40''	4H-1/2" Hose Barb 6H-3/4" Hose Barb 8H-1" Hose Barb TT-1.5'' Tri-Clamp	T type capsule filter is 1.5"TC and the filter cartridge is 10" PES. Selection Code is: LKTS0101TT

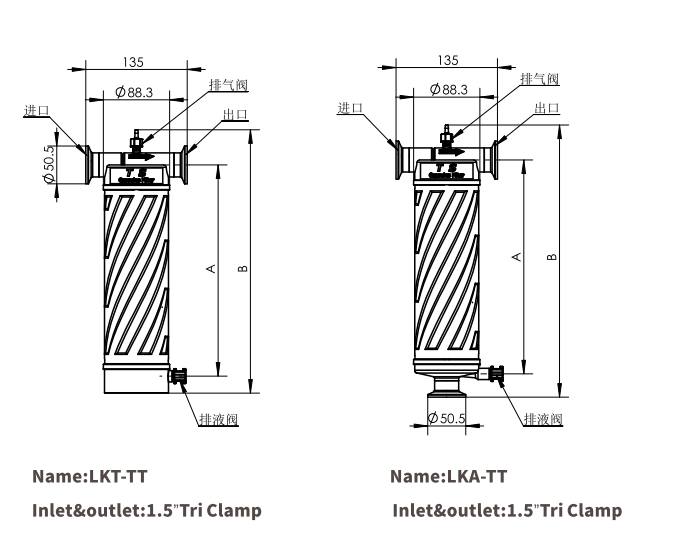

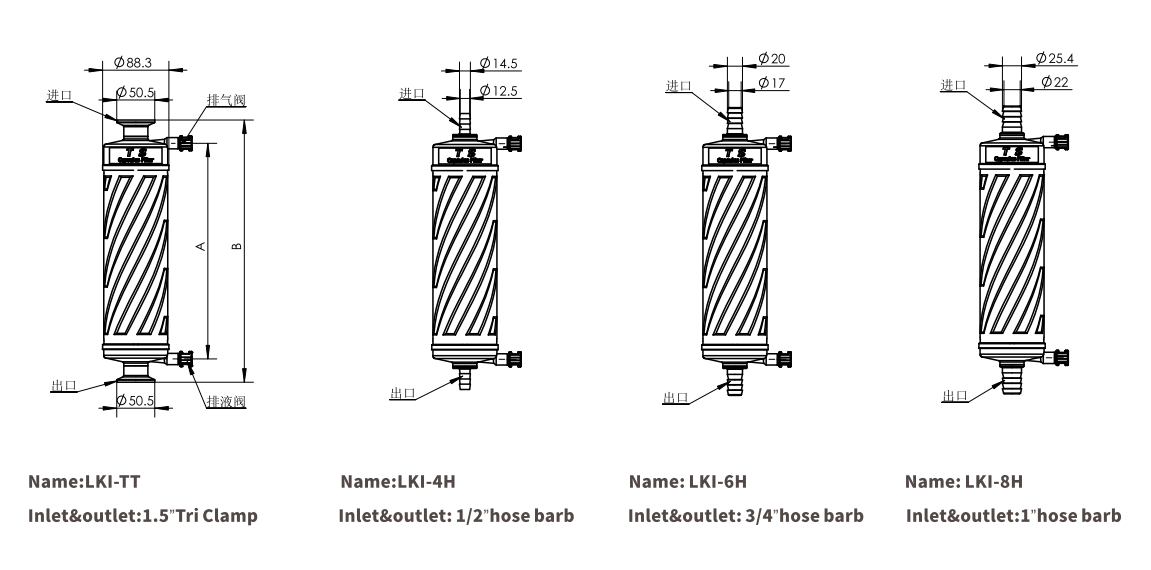

Product Drawing

Typical Applications

• Digitalinks, paintings

• Small injection and tissue cultures in pharmaceutical industry

• Corrosive liquids/solvents filtration in chemical industry

• Photoresist,acids,etc in electronic industry

• Gas/Air sterile filtration

• Laboratory solutions
