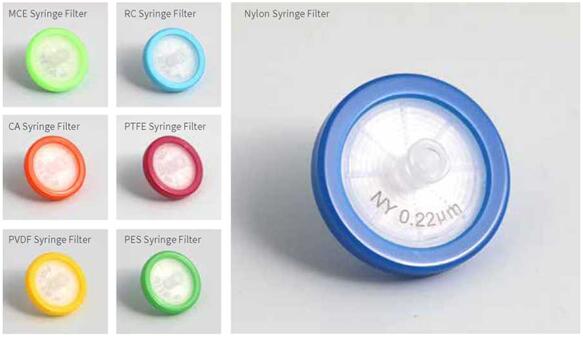

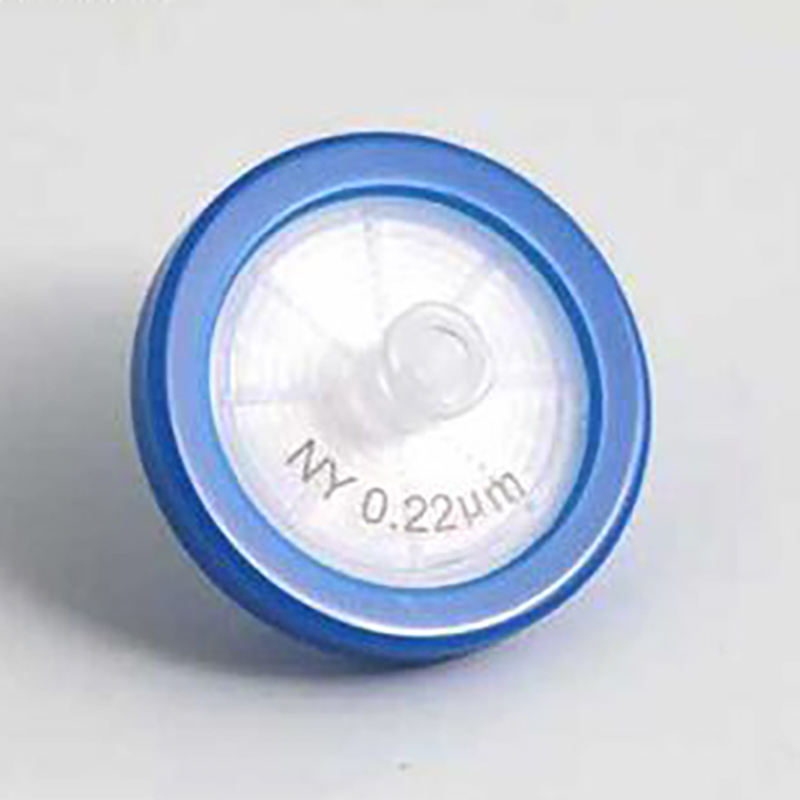

Disposable Syringe Filters

VALIDATED HPLC PERFORMANCE

◆ HPLC certification guarantees the filters will not produce extraneous peaks in the UV range.

◆ 100% integrity tested with higher burst strength ratings assuring they will perform consistently.

◆ Available in 13 and 25mm sizes and available in sterile, too.

◆ 0.45um for most clarification applications and 0.22um when fine particulate removal is required. Other pore sizes are available in 0.8um to 5um.

product details

product description

Specifications

Materials Of Construction	Filter Media:	PES/PTFE/NYLON/PVDF/CA
	Outer Cage:	Polypropylene
	Seal Method:	Thermal Bonded, No Adhesives
Cartridge Dimensions	Diameter	4mm,13mm,25mm,30mm
	Filtration Area(m2)	≥0.12 cm2(4mm diameter)
	Max.Operating Temperature.:	50℃ at △P≤1.0 bar (14psi)
	Max. Differential Pressure	75psi (5.0 bar) at 20 °C
	Flow direction:	Inlet: Female Luer Lock Outlet: Male Slip Luer (MSL)
	Sterilization:	Steam Sterilization for 30 minutes at 121℃

TYPE	DIAMETRE	FILTER MEDIA	MICRON	FEATURE	PACKAGE
FBS	4-4mm 13-13mm 25-25mm 30-30mm	NY-Nylon PTFE PES PVDF CA MCE	022-0.22um 045-0.45um 100-1.00um	L-Hydrophibility H-Hydrophobility	100 / 50 pcs in a case How to Order?- Example Membrane: PES, Pore Size: 0.22 um, Diameter: 25mm Pre-Sterile Selection Code is: FBS25PES022HS

• HPLC sample preparation

• Dissolution testing

• Routine QC analysis

• Food analysis

• Content uniformity

• Bioscience analysis

• Removal of protein precipitate

• Environmental samples

• Sterilize tissue culture media

• Virus suspensions

• Protein and enzymes filtration
