Disc Filter Membrane

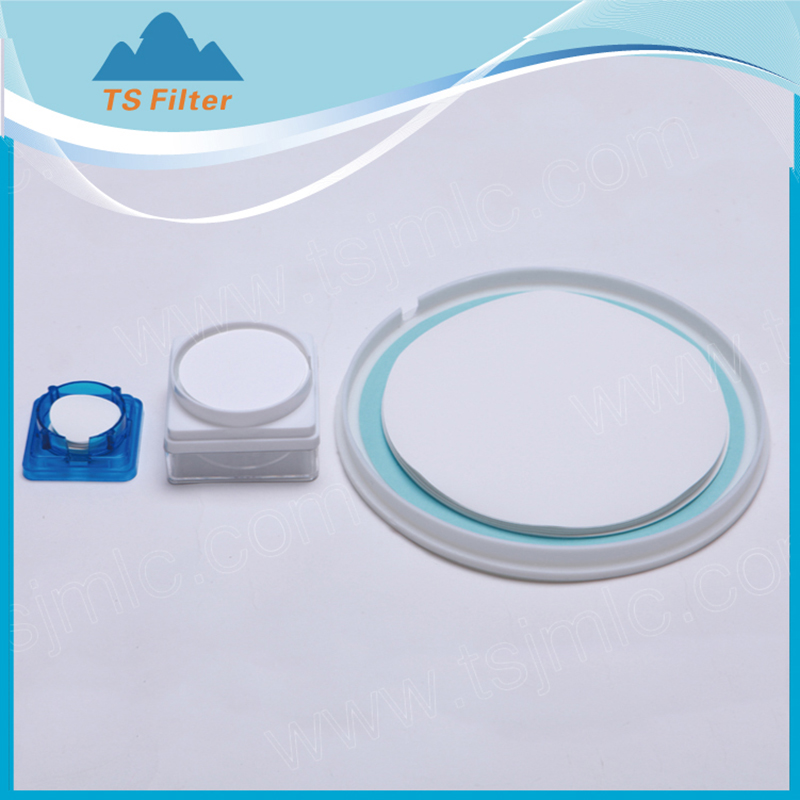

Nylon Membrane
Features and Benefits
• Natural hydrophilic
• High non-specific adsorption
• Chemical resistant to alkaline solutions and organic solvents
• Pore size: 0.10um - 3.00um
Typical Applications
• Particles removing filtration of water, aqueous solutions and solvents;
• Particularly suitable for alkaline solutions and organic solvents.

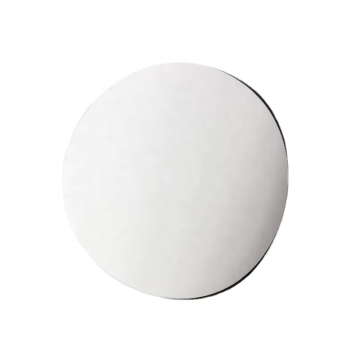

Polyethersulfone(PES) Membrane
Features and Benefits
• Excellent throughput
• Natural hydrophilic
• Wide chemical compatiblity
• Low protein adsorption
• Pore size: 0.10um - 1.20um
Typical Applications
• Sterile filtration for pharmaceutical and beverage industries
• laboratory filtration;
• Buffer filtration, tissue culture media filtration,etc.
Polyvinylidene fluoride(PVDF) Membrane
Features and Benefits
• Natural Hydrophobic
• Excellent temperature resistant
• Wide chemical compatiblity
• Low protein adsorption
• Pore size: 0.10um - 3.00um
Typical Applications
• Sterile filtration for gas/air, chemical organic solvents,etc
• Ideal for sterile manufacture of active pharmaceutical ingredients (API)
Mixed Cellulose Membrane(CN-CA)
Features and Benefits
• Hydrophilic, no prewetting
• High flow rates and thermal stability
• Low protein adsorption
• Pore size: 0.10um - 1.00um
Typical Applications
• Widely used in analytical and laboratory filtration
Specifications
| Membrane Name | Nylon | PES | PVDF | CN-CA | PTFE | |||||||||||
| Pore Size (um) | 0.20 | 0.45 | 0.65 | 0.20 | 0.45 | 0.65 | 0.20 | 0.45 | 0.80 | 0.20 | 0.45 | 0.65 | 0.10 | 0.20 | 0.45 | |
| Buble Point (Mpa) | 0.30 | 0.20 | 0.15 | 0.33 | 0.22 | 0.18 | 0.09 | 0.06 | 0.04 | 0.30 | 0.20 | 0.15 | 0.15 | 0.10 | 0.07 | |
| pH Value | 6 - 13 | 2 - 14 | 1 - 14 | 4 - 8 | 1 - 14 | |||||||||||
|
Water Flow Rate mL/cm2/min (ΔP=1.0bar) |
Water | Water | Ethanol | Water | Air Flow Rate | |||||||||||
| 23℃ | 23℃ | 23℃ | 23℃ | m3/m2/h | ||||||||||||
| ＞7 | ＞20 | ＞50 | ＞20 | ＞40 | ＞75 | ＞7 | ＞18 | ＞45 | ＞10 | ＞25 | ＞55 | ＞2 | ＞4 | ＞6 | ||
| Sterilization | by autoclaving (121 ℃ at 1 bar) or with ethylene oxide. | |||||||||||||||
Order Information
| PRODUCT | MEMBRANE | PORE SIZE | DIAMETER | PACKAGE |
| MF | PN - Nylon PS - PES PV - PVDF PF - PTFE CNCA - CN-CA |
010 - 0.10 um 020 - 0.20 um 045 - 0.45 um 065 - 0.65 um 080 - 0.80 um 100 - 1.00 um |
013 - 13mm 025 - 25mm 047 - 47mm 090 - 90mm 142 - 142mm 293 - 293mm |
25G - 25 pcs in a case with paper separated 50N - 50 pcs in a case without paper separated |
| How to order ?-Example | ||||
| Membrane: Nylon, Pore Size: 0.20 um, Diameter: 47mm Package: 25pcs in a case with paper separated Selection code is: MFPN02004725G |
