Basket Magnetic Filter Housing

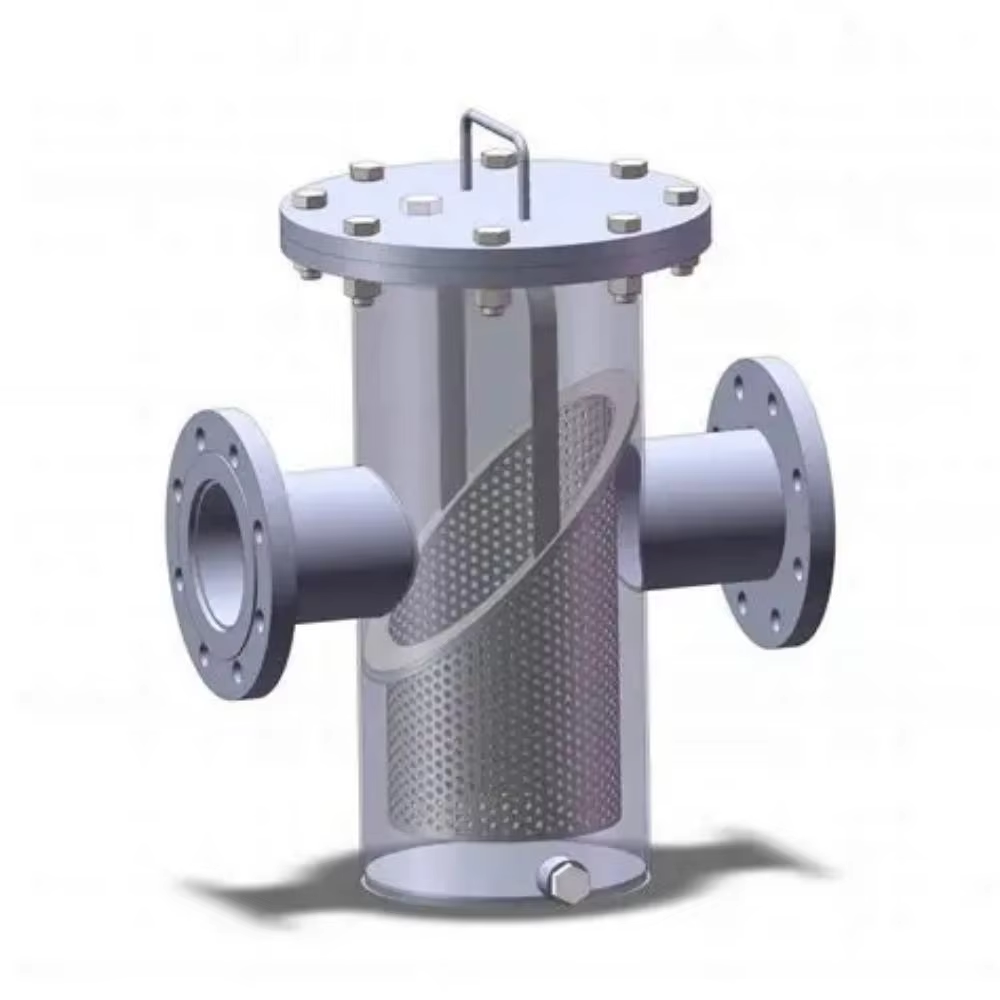

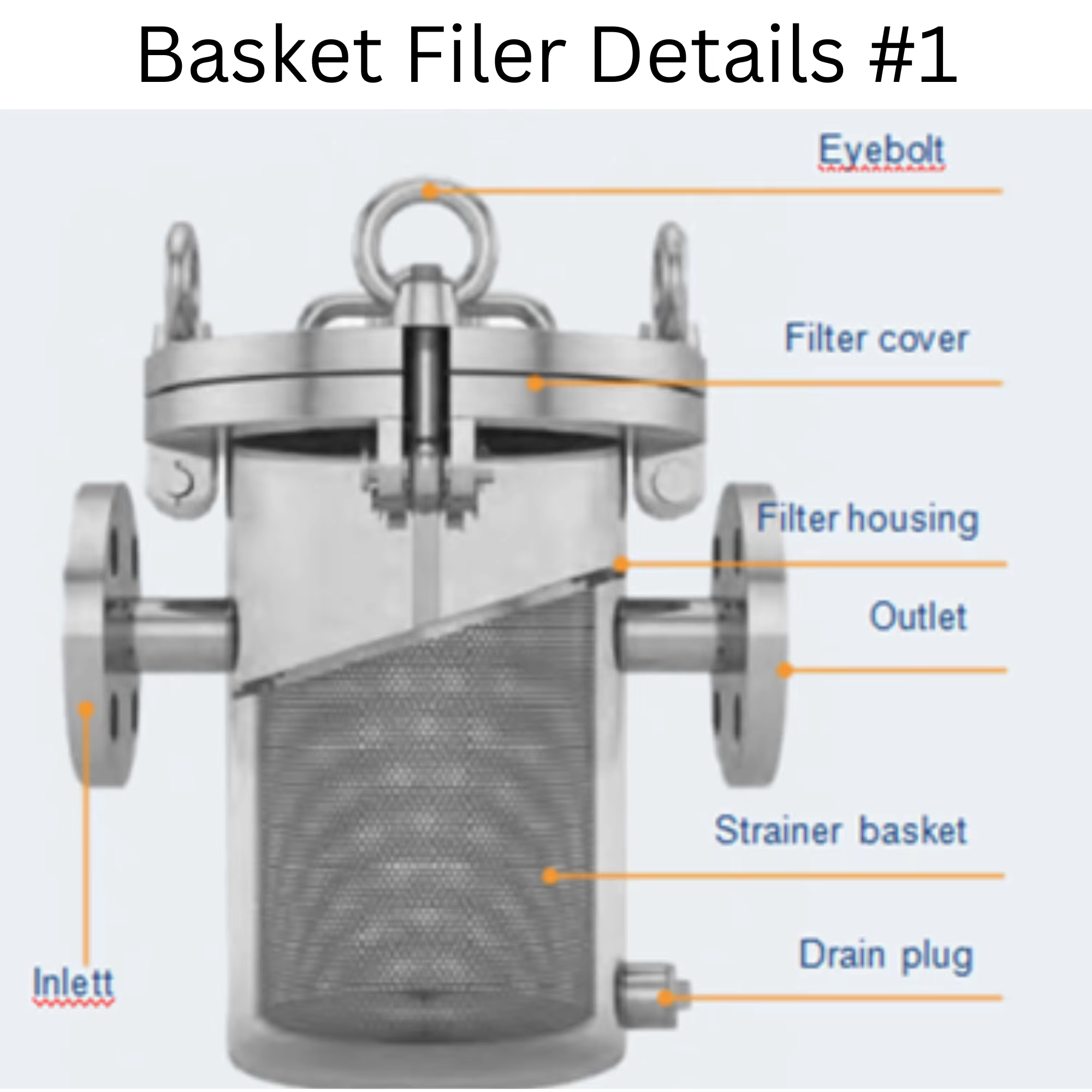

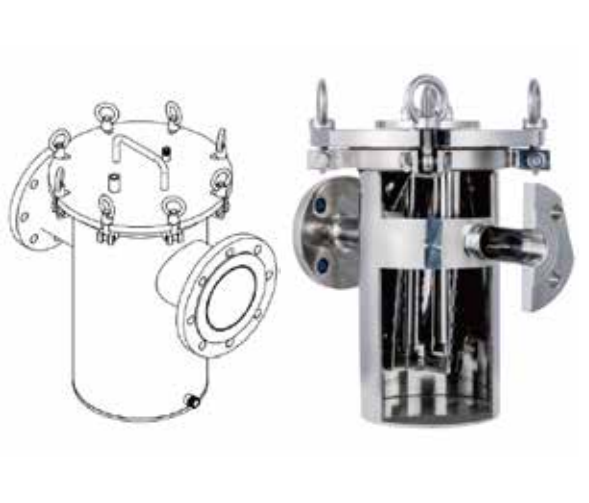

Designed for removing solid particles from liquid streams, this basket filter is a compact and reliable unit consisting of connecting pipes, main body, filter basket, flanges, flange covers and fasteners for stable industrial use.
When fluid passes into the filter vessel fitted with a specified‑size screen, impurities are trapped inside, while clean liquid flows through the basket and exits smoothly from the filter outlet.
Simple in structure, easy to install and maintain, it provides consistent and efficient protection for your pipeline equipment and ensures stable fluid delivery in daily operation.

product details

product description

Working Principle

During the conveying process of the liquid slurry, when the liquid slurry passes through the filter, under the magnetic effect of the strong magnetic rod, the ferromagnetic impurities in the liquid slurry are adsorbed on the sleeve of the magnetic rod, completely removing the ferromagnetic impurities in the liquid slurry and ensuring that the content of iron impurities can be effectively controlled in the next working procedure.

Technical Specification

Material:	Housing	Stainless Steel 304, 316L and CS for choice
	Anticorrosive Lining Material	PTFE FEP(F40) ETFE(E40)
	Sealing	Silicone, Viton, EPDM, PTFE
Polishing Type:		Mechanical Polished/Electro Polished
Roughness of Polishing:		Interior Ra 0.3 um/ Exterior Ra 0.4 um

Specifications

Type	MAGNETIC ROD Q'TY	MAGNETIC INTENSITY(GS)	FLOW RATE(m³/h)	DIMENSIONS(mm)	OPERATING PRESSURE(Mpa)	OPERATING TEMPERATURE(℃)
Type	MAGNETIC ROD Q'TY	MAGNETIC INTENSITY(GS)	FLOW RATE(m³/h)	DIMENSIONS(mm)	OPERATING PRESSURE(Mpa)	OPERATING TEMPERATURE(℃)
LSCB-3	3	9000-12000	3	220133180	0.1-0.4Mpa	-10~140℃
LSCB-5	5	9000-12000	5	280230220	0.1-0.4Mpa	-10~140℃
LSCB-7	7	9000-12000	10	330230240	0.1-0.4Mpa	-10~140℃
LSCB-9	9	9000-12000	12	360230260	0.1-0.4Mpa	-10~140℃
LSCB-12	12	9000-12000	25	480320300	0.1-0.4Mpa	-10~140℃
LSCB-14	14	9000-12000	30	480320350	0.1-0.4Mpa	-10~140℃
LSCB-18	18	9000-12000	40	480350350	0.1-0.4Mpa	-10~140℃

Order Information

PRODUCT	MAGNETIC ROD Q'TY	CAGE MATERIAL	INLET/OUTLET CONNECTION	CONNECTION	O-RING /GASKET	SURFACE FINISH
LSCB	3 5 7 9 12 14 18	304 316L CS A(Antiseptic)	Flange Tri Clamp Thread	Tri-Clamp	Silicone	Mechanical Polished
				Flange	Viton	Electro Polished
					EPDM PTFE
