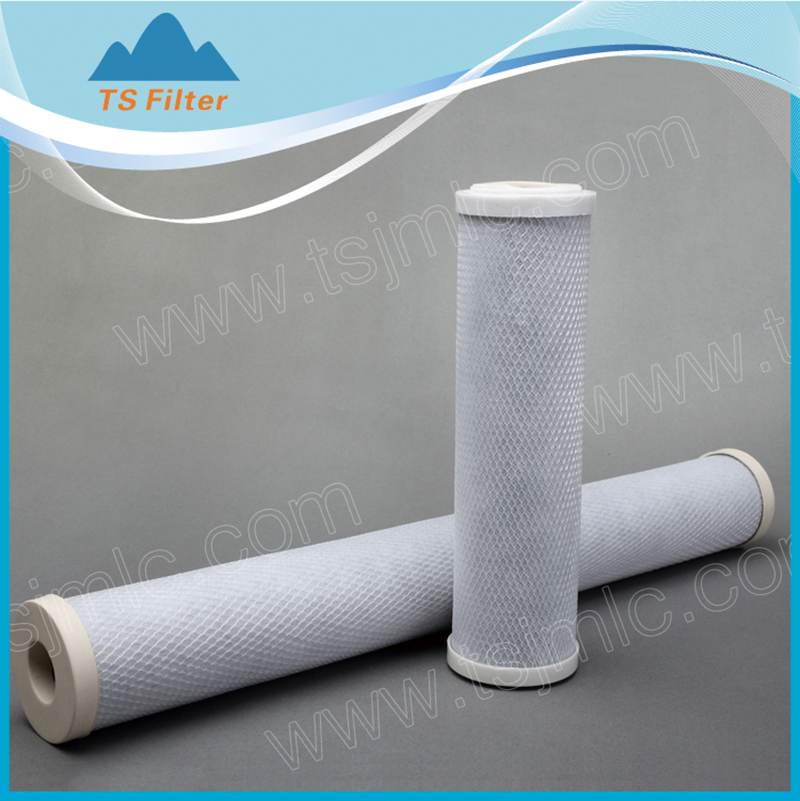

Activated Carbon Block Filter Cartridges
Specifications
| Materials Of Construction | Filter Media: | Common Activated Carbon/Coconut Shell Carbon | |||
| Micron Rating: | 5.0 um | ||||
| Inner core: | Polypropylene Non-Woven Cloth | ||||
| Outer Cage: | Polypropylene Non-Woven Cloth | ||||
| End caps: | Polypropylene | ||||
| O-rings/gaskets: | Silicone | ||||
| Removal Efficiency: | ≥90% | ||||
| Cartridge Dimensions | Outer Diameter | 65mm(2.5") | |||
| Inner Diameter | 28mm(1.1'') | ||||
| Length(based on DOE end caps) | 10"- 254mm, 20"- 508mm | ||||
| Filtration Area(m2) | 0.4 m2 per 10'' | ||||
| Operating conditions | Normal Operating Temperature: | Up to 55℃ (140℉) | |||
| Max. Differential Pressure | |||||
| Normal Flow direction: | 4.0 bar (58 psi) at 25℃ (77℉) | ||||
| Reverse flow direction: | 2.0 bar (29 psi) at 25℃ (77℉). | ||||
Order Information
| PRODUCT | MICRON | ADAPTER | MATERIAL | LENGTH | O-RING / GASKET |
| CTO | 500-5um | AA- DOE | A-Common Carbon B-Coconut Shell Carbon |
10-10" 20-20" |
S-silicone; N-nitrile E-epdm; How to Order?- Example |
| Micron: 5um; Length: 10" ADAPTER: DOE; Gakset: Silicone. Selection Code is: CTO500AAA10S |
Table: Typical water flow rate (10")
Typical Applications
• Pre-filtration or pre-treatment in RO applications;
• Chlorine and odor removal;
• Clolor reduction.
