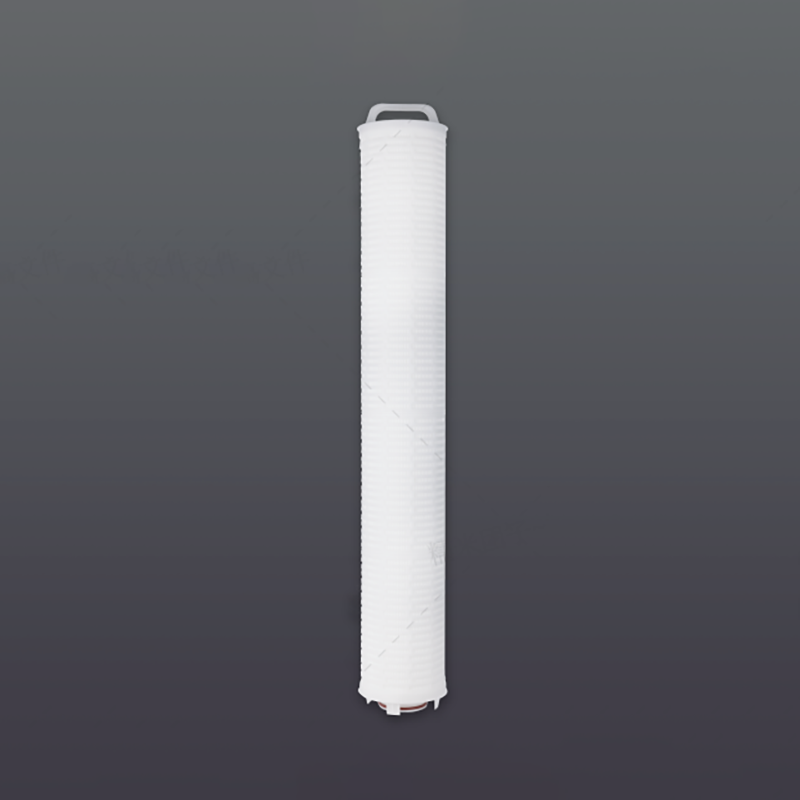

150 High Flow Rate Filter Cartridge
Features and Benefits
External-in and internal-out filtration mode, insertable installation
Gradient filtration precision, high retention efficiency, large dirt-holding capacity
High effective filtration area, low pressure drop, fast flow rate, high throughput
Reinforced polypropylene support frame, high mechanical strength, excellent temperature and pressure resistance
Hot melt welding, no adhesives, wide chemical compatibility
Tail-end handle design, simple operation, convenient installation and maintenance
Materials of Construction
| Filter Media | Multi layer Polypropylene |
| Support Layers | Polypropylene |
| Inner and Outer Cages | Reinforced Polypropylene |
| End Caps | Reinforced Polypropylene |
Operating Conditions
| Max.Operating Temperature | 80℃ |
| Designed Discharge | 40"/35m³/h |
| Differential Pressure | 0.25Mpa/25°C |
| Recommended Replacement Pressure Difference for the Filter | 0.25Mpa/25°C |
Order Information
| PRODUCT | FILTER MEDIA | CODE | MICRON(um) | CODE | LENGTH(in) | CODE | O-RING/GASKET |
| HFM | Polypropylene | 050 | 0.50 | 20 | 20 | S | Silicone |
| 100 | 1.00 | 40 | 40 | V | Viton | ||
| 500 | 5.00 | E | EPDM | ||||
| 1000 | 10.00 | N | Nitrile | ||||
| 2000 | 20.00 | T | Teflon (Encaptulated) |
Typical Applications
Pre-filtration for seawater desalination, security filtration for ultrafiltration, RO and other systems
Filtration of condensate water and condensation water in power plants, and filtration for impurity removal in make-up water
Purification and separation filtration of viscous fluids in petrochemical industry
Filtration of process water, and solvents in biopharmaceutical industry
Clarification and impurity removal in the food and beverage industry
Filtration of corrosive liquids
Guard filtration
