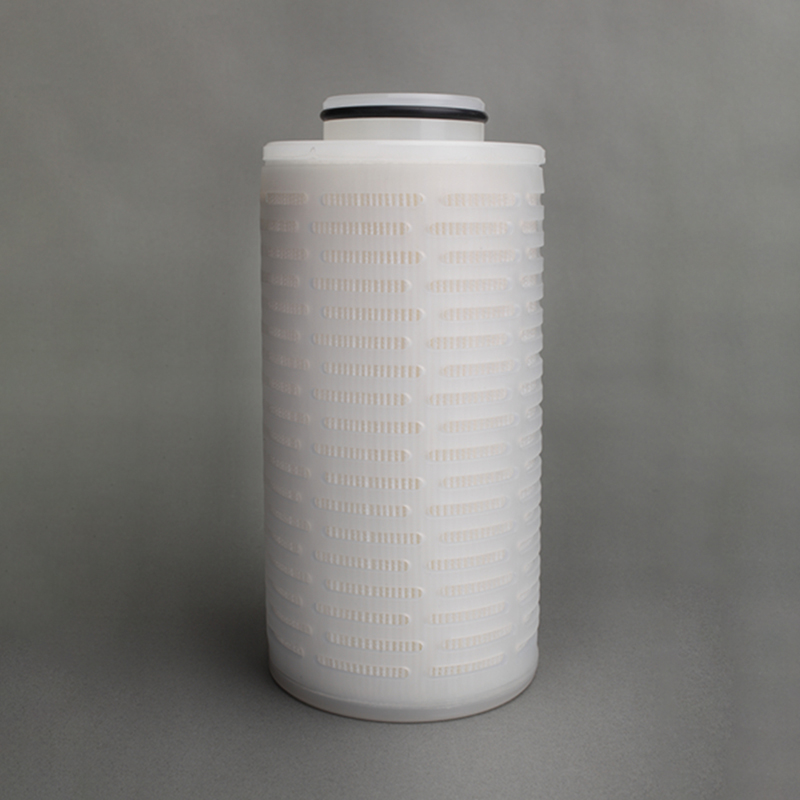

130 High Flow Rate Filter Cartridge

◆ High water flow rate and longer service life

◆ Large filtration area, reduce the number of filters required

◆ Excellent compatibility with various process liquids

◆ Single open end filter,easy to change-out

◆ Available in a wide range of removal ratings

Designed for high-efficiency large-volume filtration scenarios, it meets strict international industrial and food safety standards, ensuring stable and contaminant-free performance for critical processes. Its large filtration area cuts down filter usage and installation space while high flow rate boosts operational efficiency greatly. Easy to maintain with tool-free change-out, it minimizes downtime and lowers overall operational costs, serving as a reliable solution for your high-flow liquid purification needs.

product details

product description

Specifications

Materials Of Construction	Filter Media:	PP/PES/PTFE/PVDF/Nylon
	Support Layers:	Polypropylene
	Inner core:	Reinforced Polypropylene
	Outer Cage, End caps:	Reinforced Polypropylene
	Seal Method:	Thermal Bonded, No Adhesives
	O-rings/gaskets:	Silicone, EPDM, Viton, Teflon, etc
Cartridge Dimensions	Outer Diameter	83mm(3.26"), 130mm(5.11")
	Inner Diameter	40mm(1.57"), 63mm(2.48")
	Length	10" only
	Filtration Area(m2)	ODΦ83mm×10”≧1.0m2 ODΦ130mm×10”≧2.0m2
Operating conditions	Normal Operating Temperature:	Up to 60℃ (140℉)
	Max.Operating Temperature.:	80℃ (176℉) at △P≤1.0 bar (14psi)
	Max. Differential Pressure
	Normal Flow direction:	4.2 bar (60 psi) at 25℃ (77℉)
	Reverse flow direction:	2.1 bar (30psi) at 25℃ (77℉).
	PH Value compatibility:	According to different filter medias
Cartridge Safety	Endotoxin:	＜0.25 EU/ml
	Extractables:	0.03g / 10"

Order Information

GRADE	TYPE	OUTER DIAMETER(mm)	FILTER MEDIA	MICRON	ADAPTER	LENGTH	O-RING / GASKET
P- PHARMACEUTICAL F- FOODE- ELECTRONIC	LF	83 130	DPPIPS	020-0.2um 045-0.45um 065-0.65um 100-1.00um	322 321	10-10''	S-silicone; N-nitrile E-epdm; V-Viton How to Order?- Example
							Pharmaceutical grade; Filter Media: IPS; Micron: 0.2um; Length: 10''; Outer diameter: 83; Adapter: 322; O-ring: Silicone. Selection Code is: PLF83IPS02032210S
